Features:
This product is used for USB interface pressure test, can not be used against the law and ethical behavior! !

Note: Only for testing and research, any disputes and adverse consequences shop is not responsible for, please consider carefully before buying! ! !

The product does not contain a battery, but it generates high voltage during operation (the booster circuit output is fixed at 300V, and when the output is connected to the load, the voltage is pulled down to the discharge threshold voltage, the center value is 230V, and the error is ±30%). Therefore, do not remove or damage the heat-shrinkable tube skin attached to this product (the heat-shrinkable tube has a withstand voltage of 600V). If the heat-shrinkable tube skin is damaged, stop using it.

If any abnormal conditions such as abnormal output voltage (too high or too low), abnormal sound, excessive heat or even fire occur during operation, immediately turn off the power.

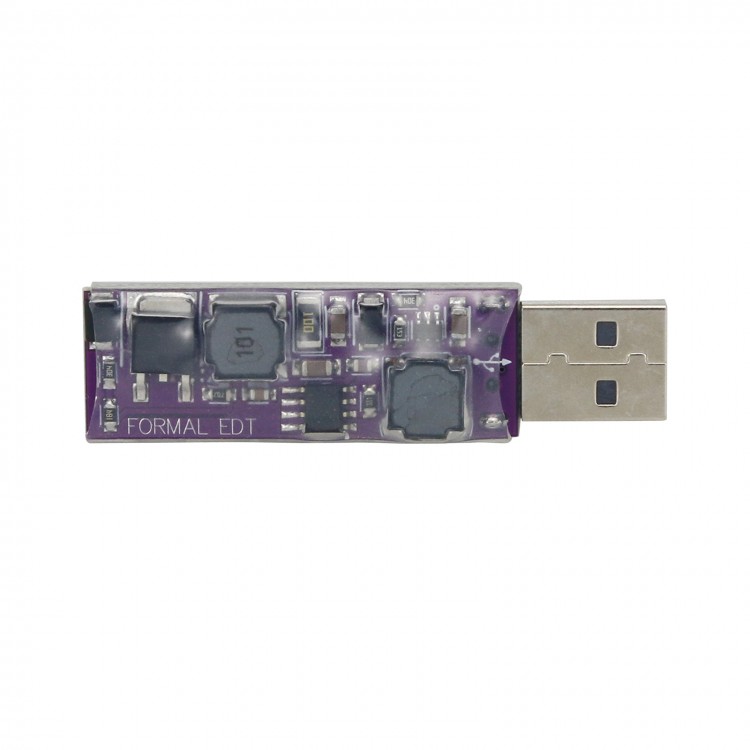

The product is based on the boost structure . A test instrument for the sustainable output of pulse voltage.

The input energy is derived from the output of the USB interface itself (5V 1A or higher), so it does not need to be charged, but it requires the output capacity of the USB interface: the output voltage is not more than 20% of the 5V error, and the output of the current is not less than 1A. Otherwise, this product may not work properly.

This product may produce a slight sound, sound or from the sound of the inductor working in the DCM (intermittent mode) and the slight discharge sound produced by the gas discharge tube (accompanied by the blue violet light produced by the arc).

After inserting this product into the USB interface that meets the requirements mentioned above, it will automatically discharge, and you only need to record the data you need to measure with other measuring instruments at the same time when it is discharged. However, it is suggested that the continuous working time does not exceed 10 seconds, and the limit condition does not exceed 30 seconds. Because this product has placed a lot of components on a very small area, it is obvious that the heat accumulation effect is obvious. In the absence of good cooling (forced cooling), please do not exceed the working time above.

This product is only suitable for computer motherboard, industrial control equipment, medical equipment, measuring instrument and other main board with discrete power supply or its selection test, its interface is USB Type-A, not applicable to MicroUSB, USB TypeC, Lighting and other pin intensive interfaces, it may puncture the air between pins, causing damage to the product itself.

Size 44.1mm x 15.3mm

The current of 5V, 1A or above.

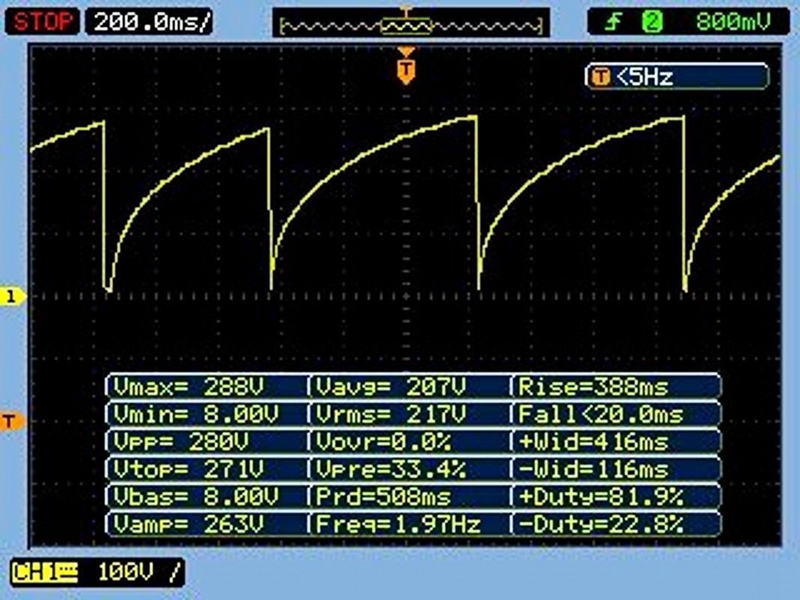

The output is shown in figure. After measurement, after short output, the rise time of capacitance voltage is about 388ms, and the descent time is less than 20ms.



Package Included:
- 1 x USB Killer V2 Miniatur Power Module

Note: Battery is not included in this package.
