USB Load Tester YZXStudio ZL1100 PD3.0 PPS QC2.0 3.0 0-3A QC MTK FCP

USB Load Tester YZXStudio ZL1100 PD3.0 PPS QC2.0 3.0 0-3A QC MTK FCP

User manual

Product Features:
- High Accuracy: This USB load tester is program control constant current load with 0.1mA accuracy and 11 times per second data reading frequency,suitable for testing the power adapters and battery packs.
- Support 99% Charging Protocols: Including QC2.0, QC3.0,MTKPE,Samsung AFC,Huawei FCP,Huawei SCP,VOOC,DASH,as well as BC1.2-DCP, Apple 1A/2.1A/2.4A,Samsung 2A.
- Protocol Triger: This electronic discharging load could be set to almost any charging protocols you want.Set the protocol and click the start to imitate the real load,which can not be achieved by the normal electronic load.
- Type C Compatible: This load tester could test the charging cable resistance and verify the real performance and quality of the cables through the Type C and Micro USB female port.
- Serial Port Connection: Built-in CH340G USB to UART chip supports data transferring to PC and firmware updating.

Specification:
- USB Electronic Discharging Load for Testing Performance of Adapter,Cable and Battery Packs
- Input Voltage Range: 0-24V
- Voltage Resolution: 0.0002V
- Input Current Range: 0-3A
- Current Resolution: 0.0001A
- Deviation: <0.2%
- Quick Charge Protocol Supported: QC2.0,QC3.0,MTKPE,Samsung AFC,Huawei FCP,Huawei SCP,VOOC, DASH
- Normal Charge Protocol: BC1.2-DCP,Apple 1A/2.1A/2.4A,Samsung 2A
- Power Supply Needed: 4.5-5.5V, 500mA

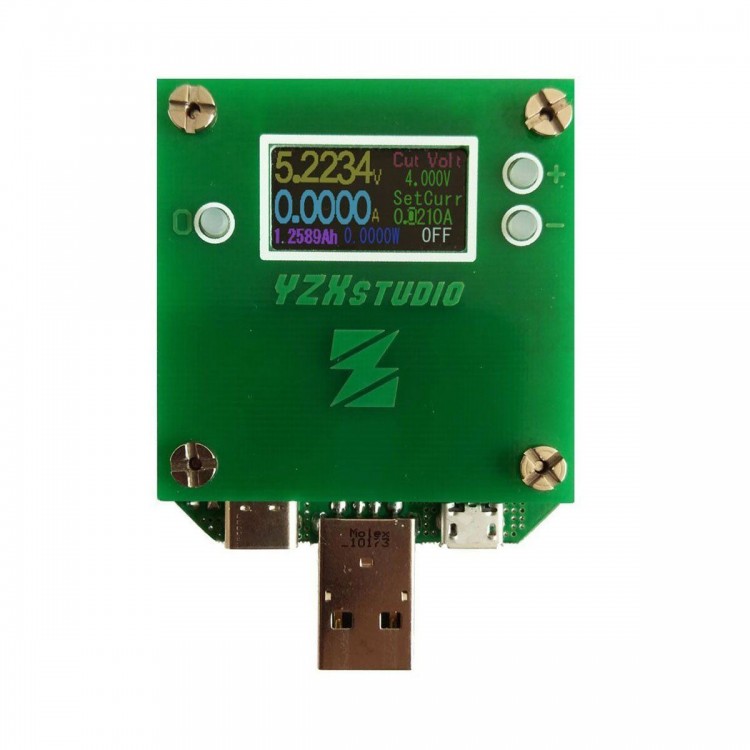

- Display: TFT LCD Screen.

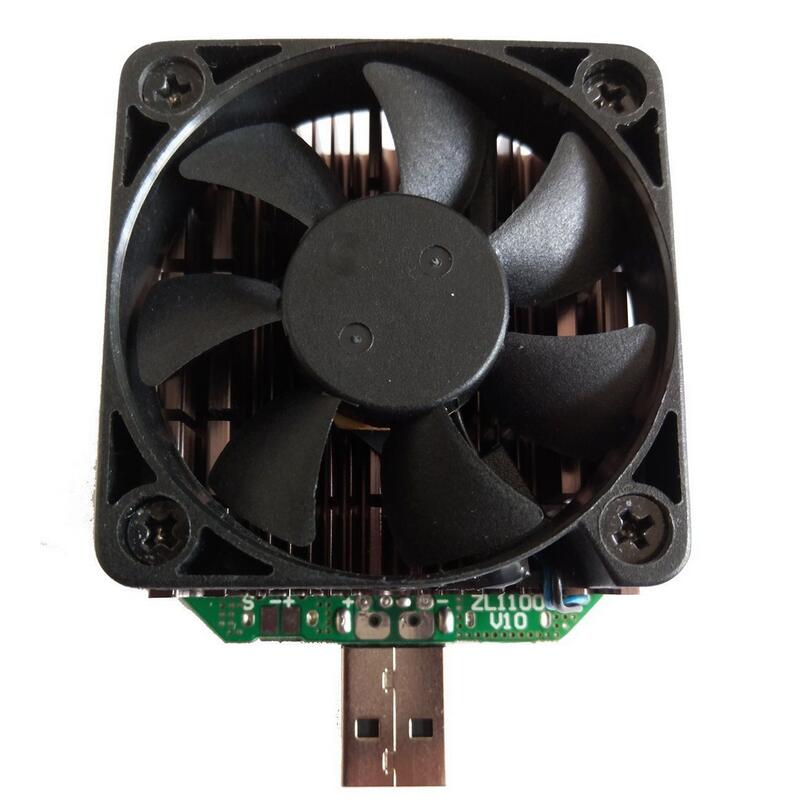

- With Heat Disspation Fan: Yes
- Heat Sinks Material: Alloy similar to the ones used to PC CPU heat sinks.
- Housing: PCB material
- Memory Type: FRAM memory with 10 billion time rewrite capability.
- USB Plug: MOLEX USB plug
- Buttons: ALPS silicon button.
- Fast setting current within 0.5 second.
- Stepless change current scanning to accurately detect the max current and power of the adapter.

Package List:
- 1 x USB Load Tester
