USB Logic Analyzer 16 Channels 500MHz Sample Rate 80MHz Bandwidth For MIPI DSI Protocols MIPI16

USB Logic Analyzer 16 Channels 500MHz Sample Rate 80MHz Bandwidth For MIPI DSI Protocols MIPI16

Download Software Here:
http://www.qdkingst.com/download/vis

Description:
MIPI16 is a high-performance logic analyzer with 16 channels and 500M sampling rate. It is composed of two parts: software on personal computer and hardware equipment. It has the advantages of high sampling rate, large sampling depth, easy to use, etc.

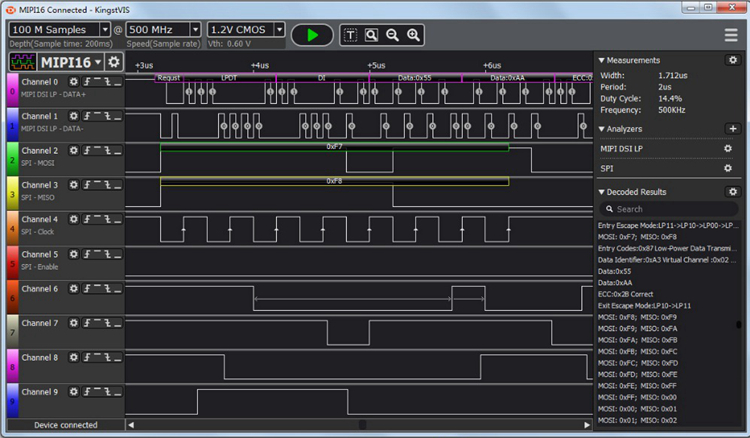

MIPI16 can sample 16 digital signal at same time. Then the sampled data can be displayed, analyzed, exported and saved on the computer. Software can also decode the data if it conform to the standard protocol of the software supported. Then the decoded data can be displayed, exported and saved.

Features:
- Portable and lightweight
- 500M sampling rate @ full channels
- Large sampling depth and support compression
- The built-in PWM generator
- Compatible USB2.0/3.0 interface
- Powerful software and easy to use
- Support online upgrade automatically

Specifications:
- Input channels number: 16
- Max sampling rate: 500M
- Measurement bandwidth: 80M
- Min pulse width can be captured: 6.25ns
- Hardware memory size: 1Gbits
- Hardware sampling depth: 50M/channel
- Max compressed depth: 10G/channel
- Input voltage range: -50V ~ +50V
- Input impedance: 220KΩ, 12pF
- Adjustable threshold voltage: -4V ~ +4V, step: 0.01V
- PWM channels number: 2
- PWM frequency range: 0.1 ~ 20MHz
- PWM frequency adjust step: 10ns
- PWM pulse width adjust step: 5ns
- PWM output voltage: +3.3V
- PWM output impedance: 50Ω
- Standby current: 200mA
- Max operating current: 400mA
- Support OS: For Windows XP, Vista, Windows 7/8/10(32bit/64bit)

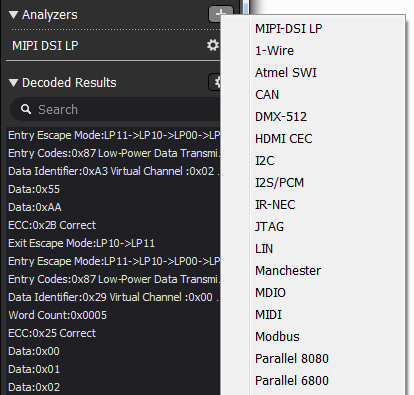

- Supported standard protocols: For MIPI-DSI LP,UART/RS-232/485, I2C, SPI, CAN, DMX512, HDMI CEC, I2S/PCM, JTAG, LIN, Manchester, Modbus, 1-Wire, UNI/O, SDIO, SMBus, USB1.1, PS/2, NEC InfraRed, Parallel, etc.

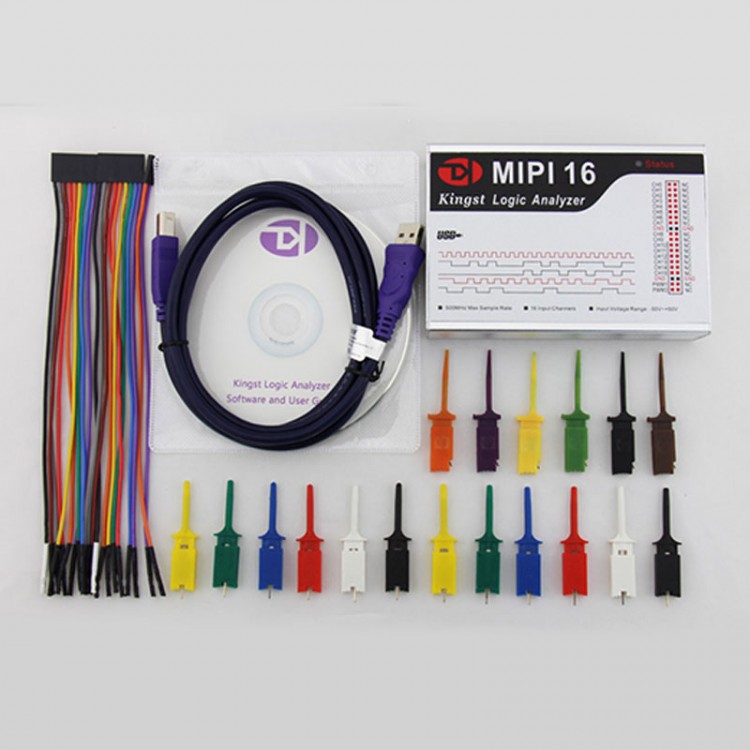

Package Included:
- 1 x MIPI16 Logic Analyzer
- 2 x 9P Flat Cables
- 1 x 2P Flat Cable
- 20 x Test Clips
- 1 x High Quality USB Cable
- 1 x CD



1.English software supports for Windows/Mac/Linux
2.User friendly interface, powerful analysis function
3.Supported decoder: For MIPI DSI LP, UART/RS232/485, I2C, SPI, CAN, SDIO, DMX512, I2S/PCM, JTAG, LIN, Modbus, 1-Wire, SMBus, UNI/O, USB1.1, NEC InfraRed, PS/2, Parallel, etc.
4.Data display format: Decimal/hex/bin/ASCII
5.Support data export, for save or other software
6.Free online automatic upgrade
