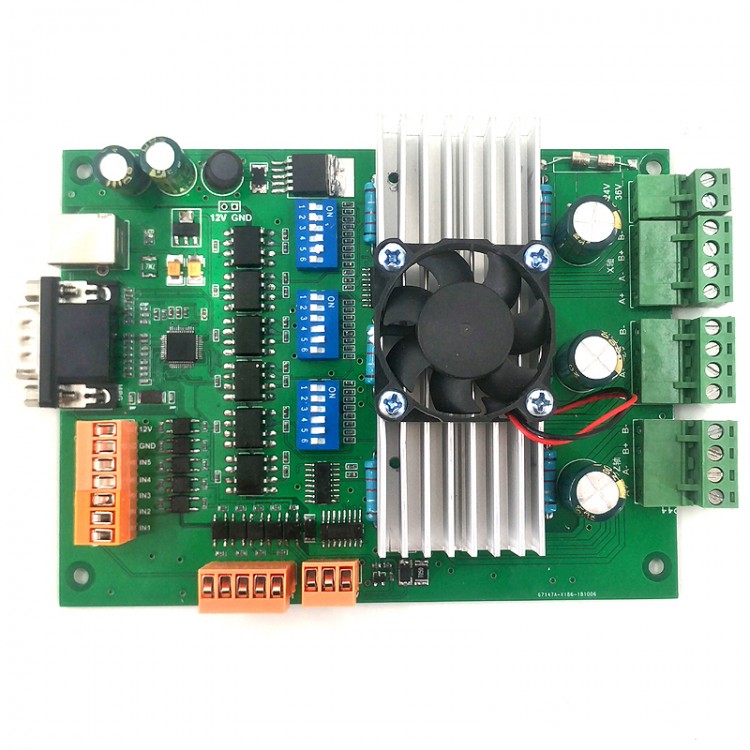

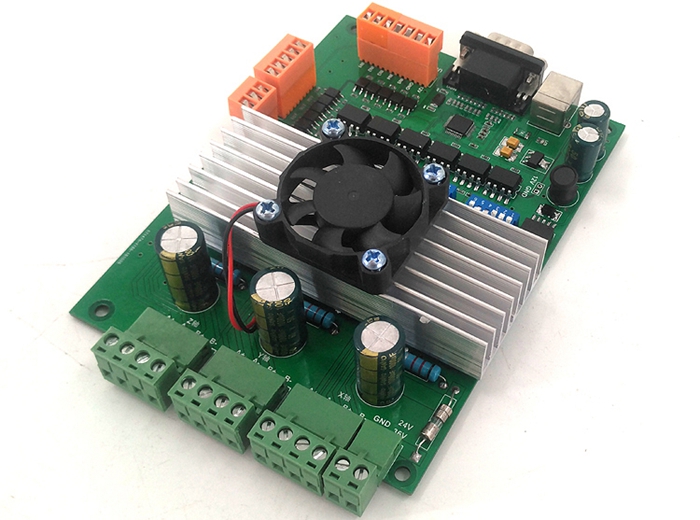

USB MACH3 3 Axis TB6600 Stepper Motor Controller Board CNC Breakout Board + USB Cable + CD

Availability: In stock, usually dispatched in 1 business day

  • Price:$1,100.00
  • Price in reward points: 11000 Reward Points: 110
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $1,078.00 $1,056.00 $1,023.00 $979.00 Contact US
Quantity:

USB MACH3 3 Axis TB6600 Stepper Motor Controller Board CNC Breakout Board + USB Cable + CD

Product Details:

- Motor Type: Stepper Motor
- Model Number: TB6600

Package Included:
- 1 x USB MACH3 3 Axis –TB6600 Stepper Motor Controller Board
- 1 x USB cable
- 1 x CD

Features:
1. Support for 3-axis linkage, you can connect four stepper motor drives or servo drives
2. Maximum step –pulse frequency is 100KHZ, which is suitable for the servo or stepper motor
3. 4 general purpose opto-couplers isolation input: can connect the limit switch, emergency stop switch .auto tool zero, home switch, etc.
4. Support for connecting electronic handwheel;
5. Have 0-10V signal output, you can use mach3 software to control the spindle motor speed.
6. 4general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps or other device;
7. 1 status LED, indicate connection status on the board.
8. Resolution 1, 1\2, 1\8, 1\16 micro stepping output;
9. Four (or three) channels 3.5A adjustable output current for 2/4 phase bipolar stepper driver;
10. Bulid with 4 outputs and 5 inputs.

Basic Connection Diagram:
