USB Oscilloscope 2 Channel 50MS/s 20M Bandwidth For Windows w/ 4-Channel Logic Analyzer OSC482L

USB Oscilloscope 2 Channel 50MS/s 20M Bandwidth For Windows w/ 4-Channel Logic Analyzer OSC482L

OSC482L Version:
Based on OSC482, it comes with a 4-channel logic analyzer module.

Our products help you solve the problems bellow:
1. As a junior hardware engineer, which oscilloscope to choose to get started?
2. Have to share a oscilloscope with your colleagues,how to break?
3. Need to carry a heavy oscilloscope to debug on site, what should I do?
4. Developing electronic projects at home, no oscilloscope is inconvenient, what should I do?
5. Traditional oscilloscopes are expensive, and many functions are not used. Need a powerful and inexpensive oscilloscope?
6. Traditional oscilloscopes are too clumsy to be customized and difficult to integrate into your project. How to solve it?

Official video introduction, answers all your questions.
https://youtu.be/mUM9R6rnH90

OSC482 Series Provide You 5 in 1 Excellent Choice:
With OSC482-based PC oscilloscope, you can combine it with signal generator module as OSC482S, combine logic analyzer module as OSC482L or combine both modules as OSC482X. OSC482M is OSC482 with an APP for Android with no module. If you want a OSC482X with APP for Android, OSC482F is available.

We keep updating oscilloscope software for improving software features/operations to the link: http://bbs.lotoins.com/support.html Please check to download the latest version one.



Let's have a look at the Software Application For Windows:

Application Scenarios and Applicable Population:
In the above picture, we will see serial port decoding, X_Y drawing, carrier amplification, multi-point automatic measurement, analog input and logic analysis, printing and FFT of Software Application for Windows, and the working scene of the data logger.

This product is recommended for hardware circuit development and measurement, teaching equipment, on-site commissioning, encoder inspection, vehicle maintenance, automated inspection equipment, power ripple testing, solar system inspection.

It is developed for hardware engineers, automatic electronics, electronic geeks, field engineers, and college students.



Hardware Features and Specifications:


8~13 bit Vertical Resolution:


Module Extensions:
let's take a look at the product hardware interface for extensions:

The open DE-15 hardware interface can provide digital power as well as analog power, GPIO ports and analog input channels as shown below.

This interface an be used as a standard access for signal generator modules or logic analyzer modules.

Although these two modules can be plug and play in frequent use, it is recommended to connect the module after the device is powered off.

Of course, you can also choose a carrying case to package and store the oscilloscope and its modules and accessories, as shown below, this carrying case need to be purchased separately. If needed, please contact us to pay for extra money.

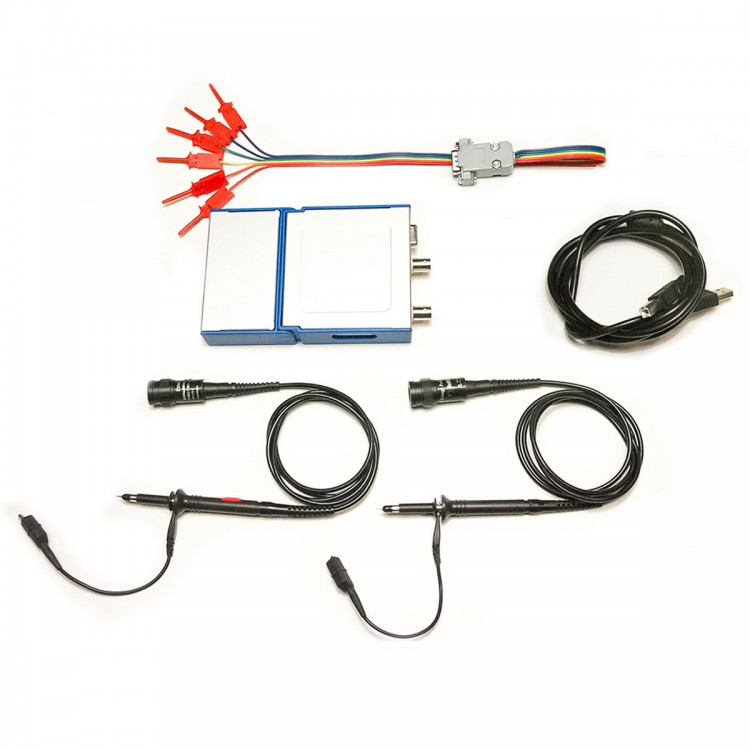

Package Included:
The USB oscilloscope and the required accessories( including extension modules and  standard accessories) may be different according to your different purchase:


About Function Supporting for Smart Phone/Tablet:
OSC482M/ OSC482F can’t support for all Android devices. Customers may need to check their phone for Android/tablet with these requirements, or contact us to check the support list.


FAQ:
Q: what is the measuring range?
A: The scope could measure 5V(with probe on X1) and 50V(with probe on X10). If you need to measure higher voltage up to 500V, please purchase X100 probe separately.

Software Download:
Download for free, we will keep updating. bbs.lotoins.com/support.html
