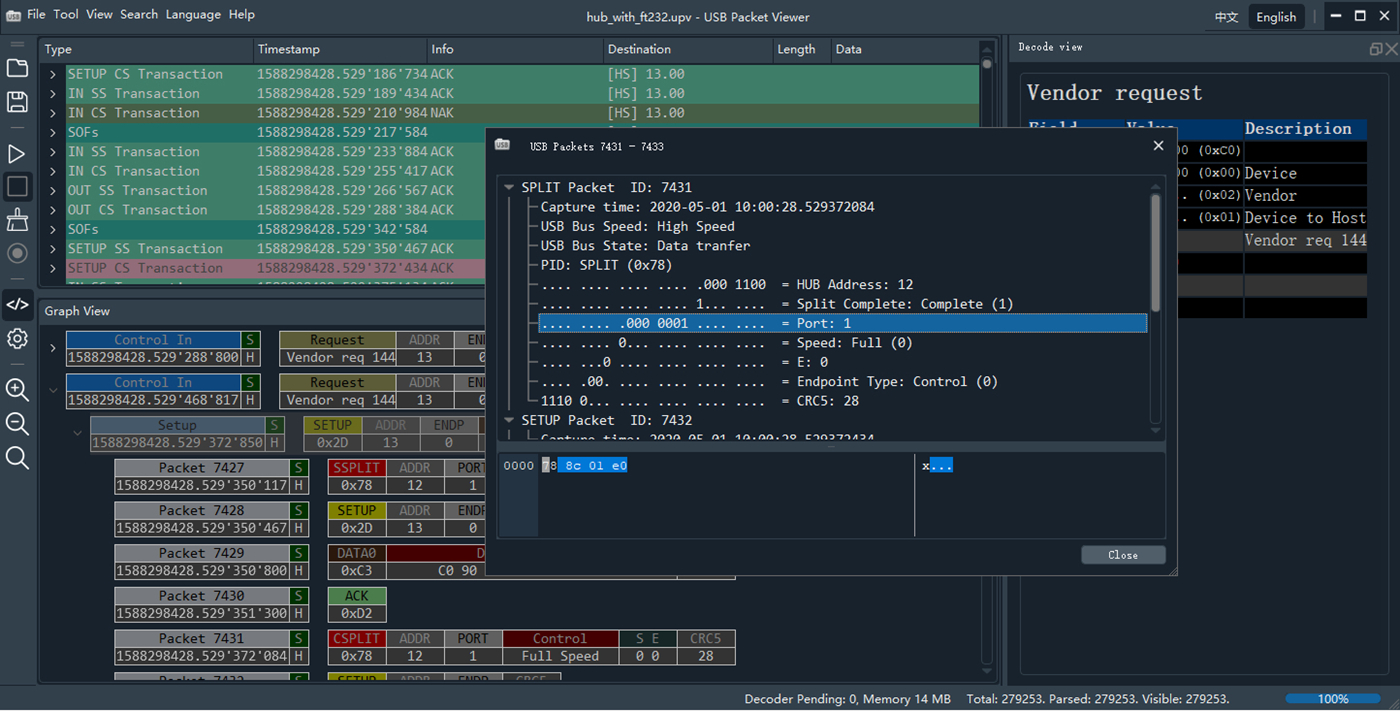

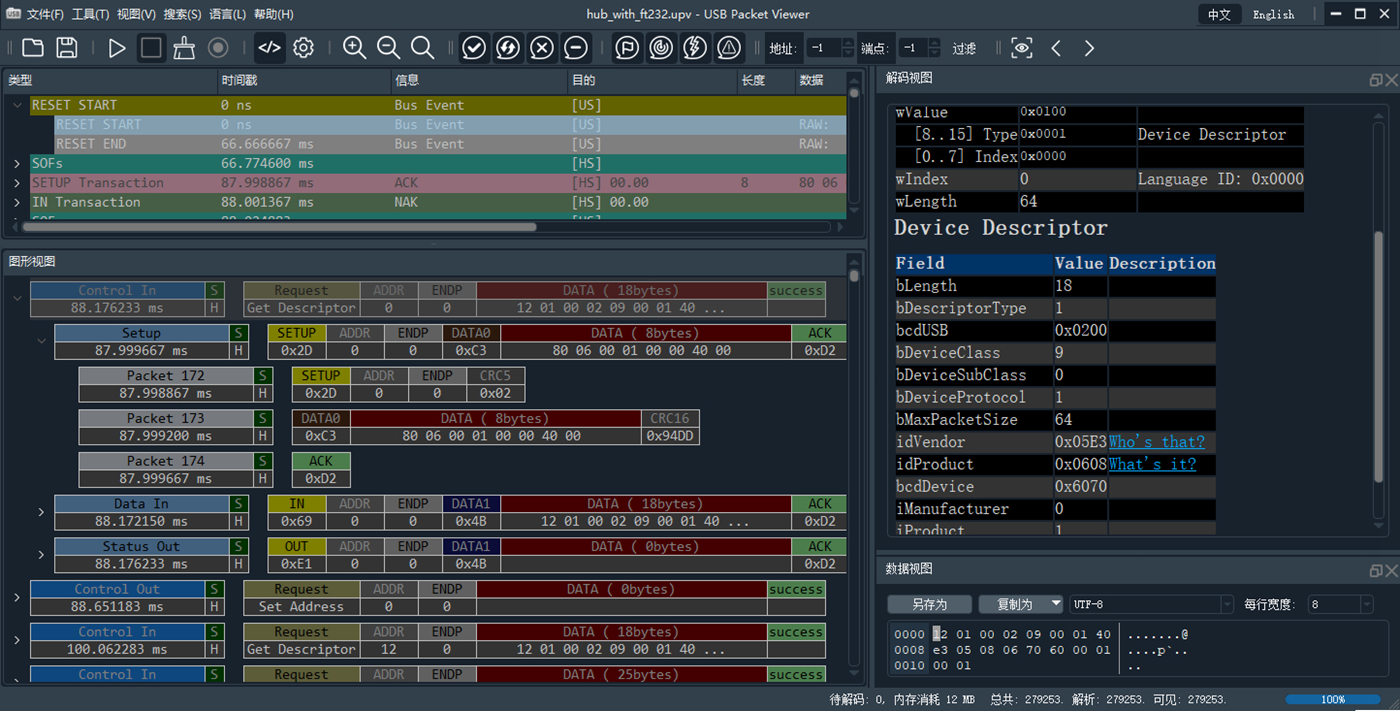

USB Packet Viewer USB Protocol Analyzer USB Analyzer Tool Supports High Speed Full Speed Low Speed
Description:
USB Packet Viewer is a portable USB protocol analyzer. It can be used to collect the underlying packets of USB communication as well as bus events.
Features:
- It supports low speed, full speed and high speed
- Automatic detection of communication rate
- 32MB hardware cache depth
- The USB protocol analyzer supports real-time protocol analysis and hardware packet filtering
- Multiple protocols can be analyzed. Currently, it supports HID, MSC, Audio, Video, HUB, CDC and FTDI devices
- Open source protocol analysis. Decoding function supports secondary development (see code https://github.com/UsbPacketViewer/parser)
- It supports a variety of file formats and file parsing supports secondary development
Specifications:
- Dimensions: 101 x 61 x 13mm/4 x 2.4 x 0.5"
- Weight: 70g/0.2lb
- Power supply: USB 5V
- Operating current: 250mA
- Monitoring and socket port: Type-C female
- Host interface: Type-C female
- Device interface: USB-A female
Package Included:
- 1 x USB Protocol Analyzer
- 1 x Long USB Type-C Data Cable
- 1 x Short USB Type-C Data Cable
Driver Installation:
http://www.usbpacketviewer.com/downloads/usbpv_driver.zip
Download Protocol Analysis Software:
http://www.usbpacketviewer.com/downloads/usbpv.zip
