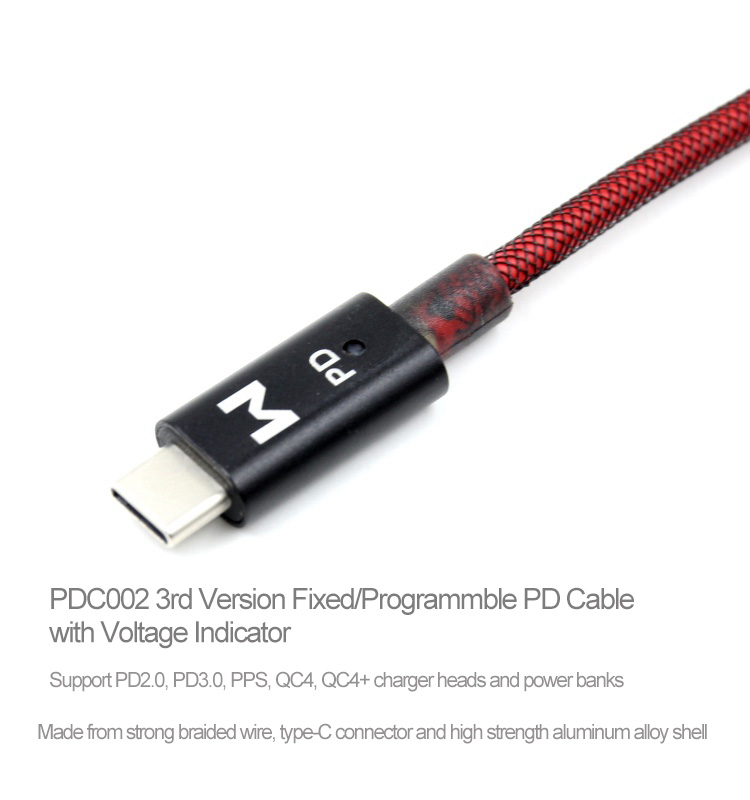

USB PD Cable 1M USB-C to DC PD Cable WITRN-PDC002 3rd Version + USB HID Upgrading Adapter Board

USB PD Cable 1M USB-C to DC PD Cable WITRN-PDC002 3rd Version + USB HID Upgrading Adapter Board

Note:
- It is designed with built-in highest voltage firmware. When the PD cable is inserted into a charger, it will output high voltage. Please ensure that your equipment support high voltage.
- Users who need to replace the firmware please purchase a programming adapter board separately.
- Made from aluminum alloy, the shell is not transparent.
- The positive and negative electrodes of the PD cable are designed for direct connection to power supply. Please confirm the voltage with a voltmeter before connecting the device! Otherwise, your equipment might be damaged.

Specifications:
- Cable Material: 1M Braided Cable (2-core 20AWG copper wire)
- Support Voltage: Max. 20V
- Support Current: Max. 5A
- Input Port: Type-C Plug
- Output Port: 5.5 Tuning Fork DC Male Connector. Support 5.5x2.1, 5.5x2.5 devices

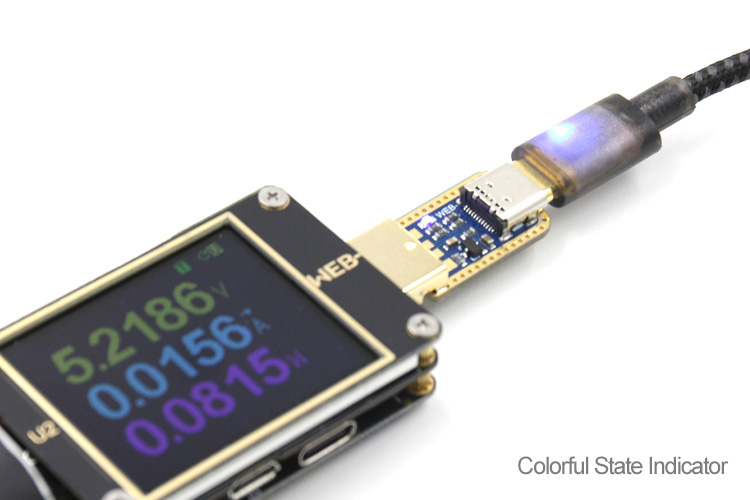

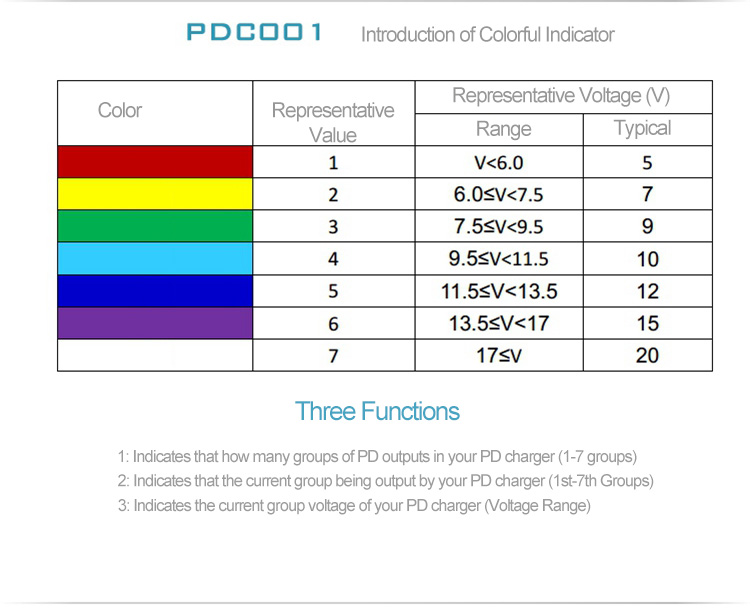

- Indicator Light: RGB indicator light support PD group display and PD voltage indication

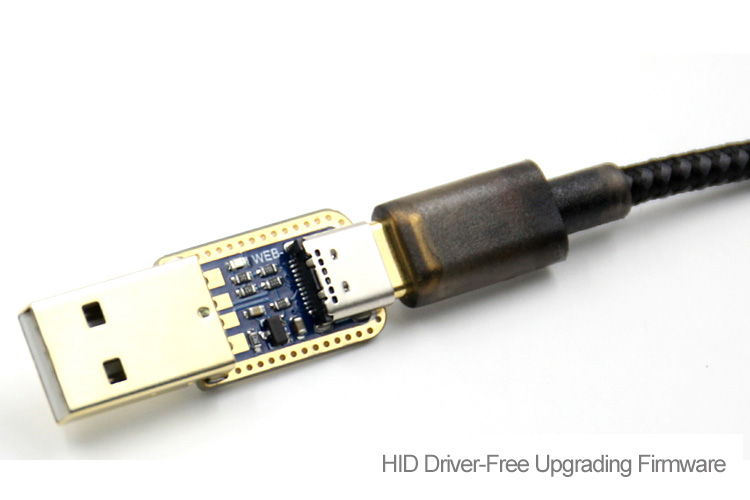

- Upgrading Port: USB HID direct upgrading via PC, drive-free
- Hardware Description: Firmware has been written (Default is the highest voltage firmware)

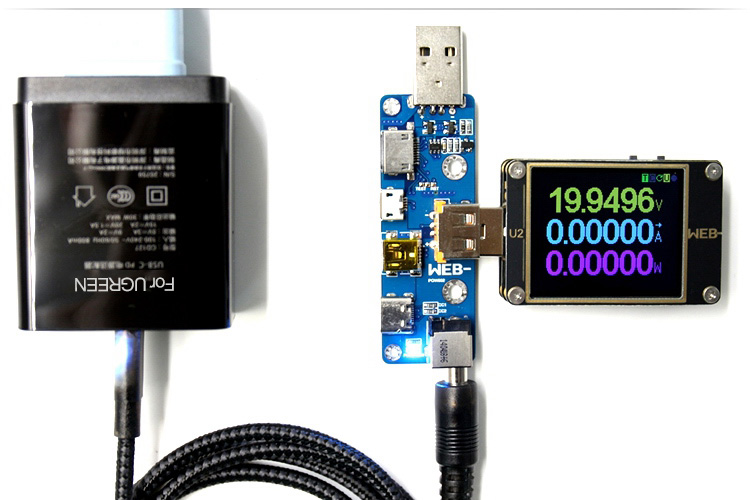

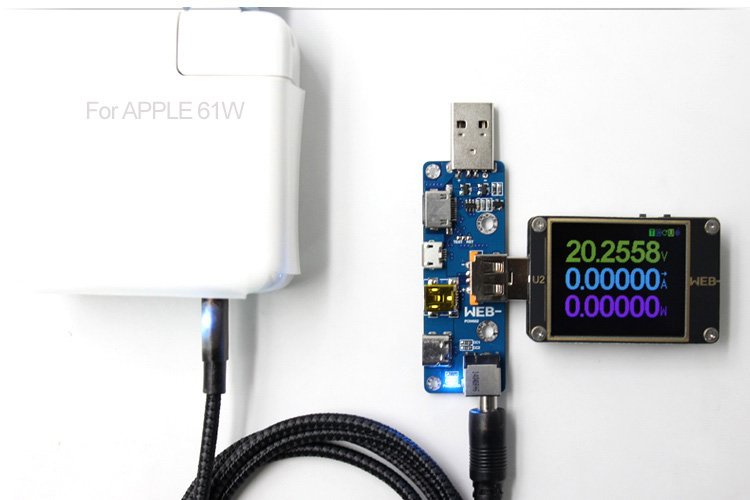

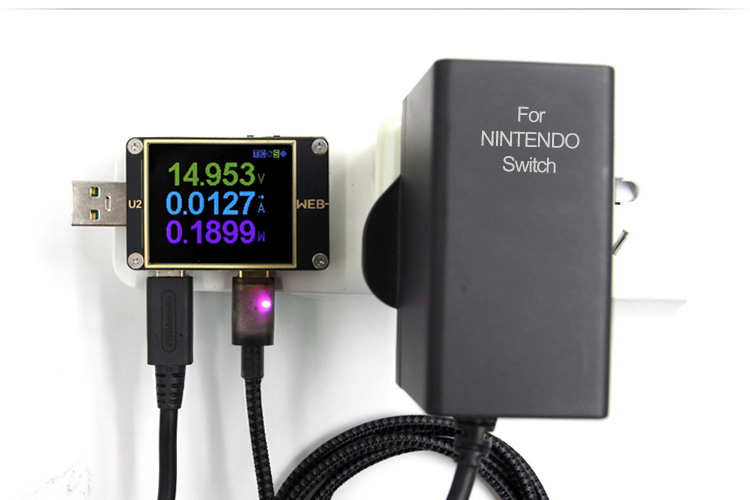

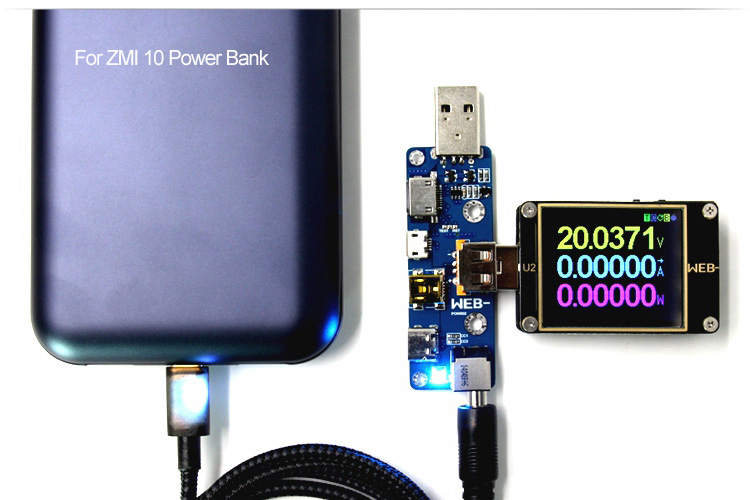

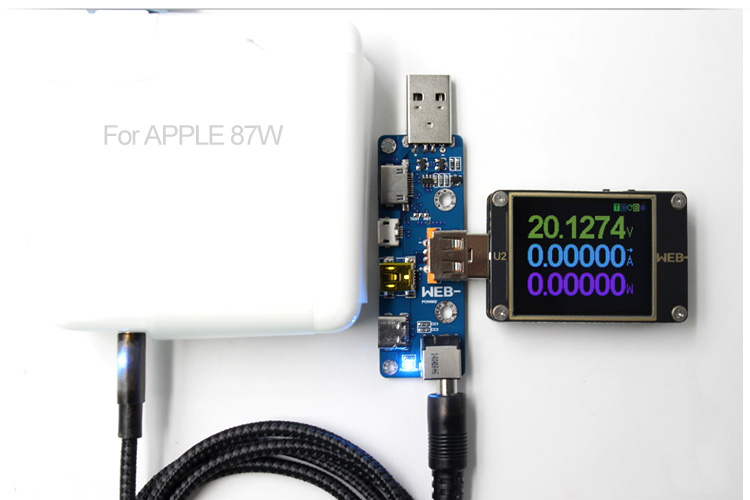

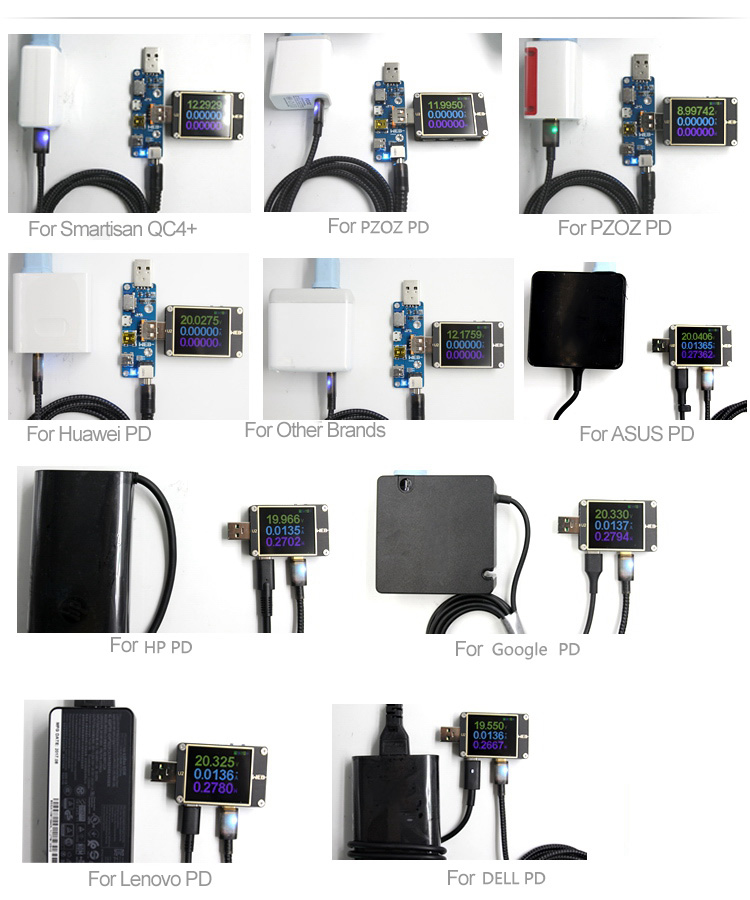

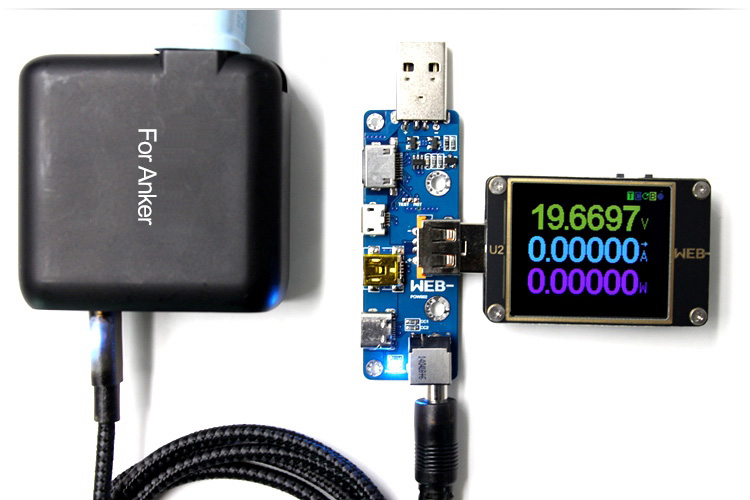

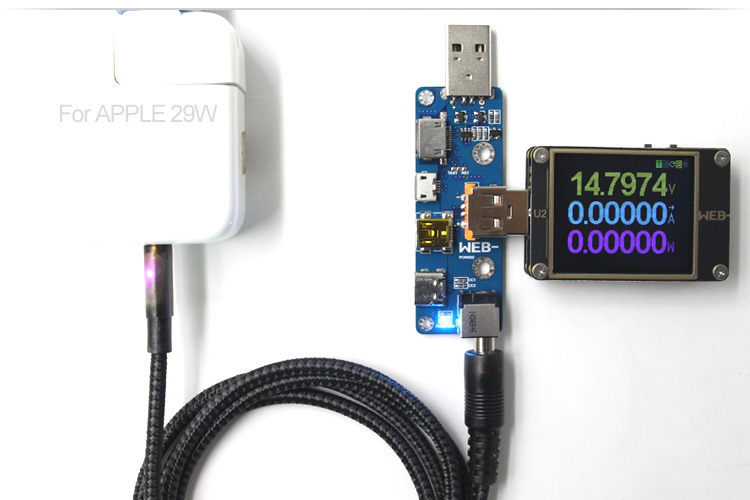

- Apply for the Highest Voltage: Apply the maximum voltage of the fixed output group of PD charger

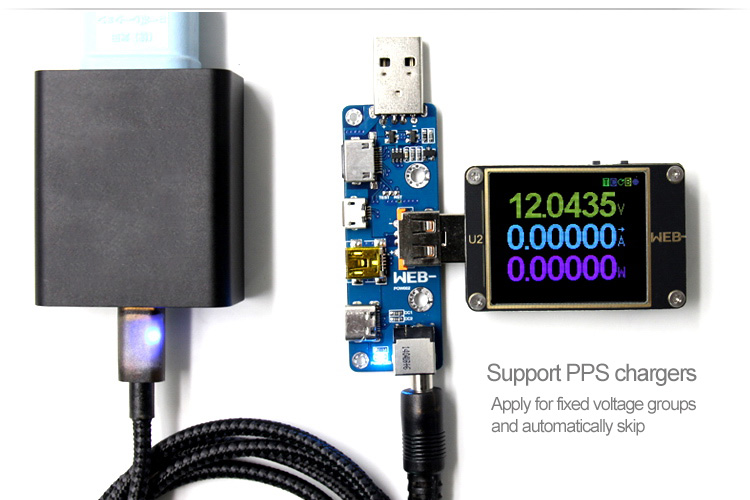

- PPS, QC4, QC4+ PD Application Logic: The PD cable supports PPS charging head, but automatically skips the PPS group and automatically applies for a fixed voltage group.

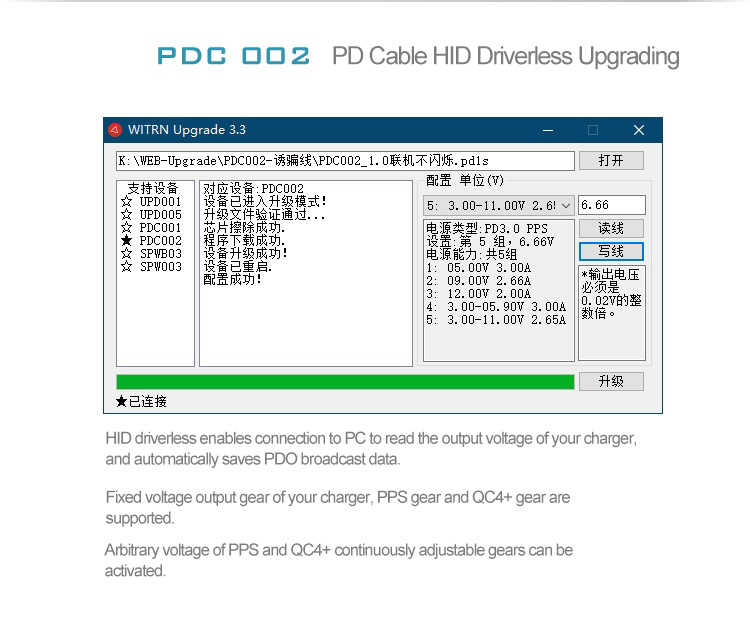

- Firmware Upgrading: Please use DFU adapter board to connect to PC to upgrade without drive or choose firmware

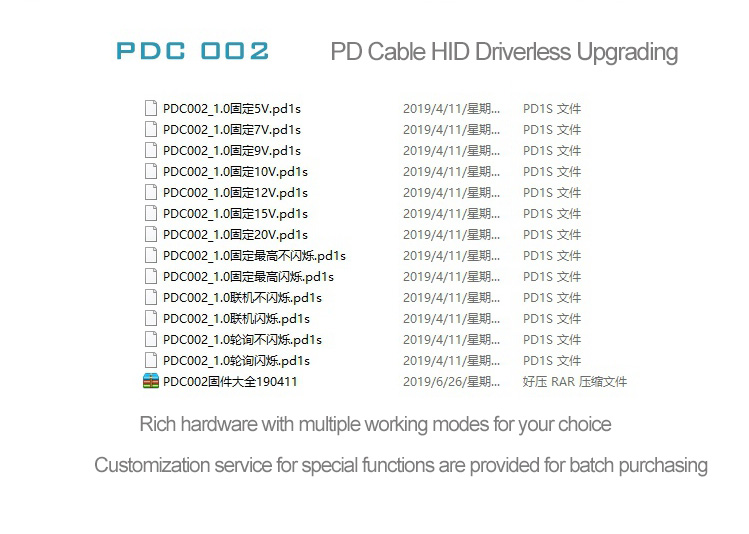

Rich Firmware Downloaded:
- Fixed Voltage Firmware: 5V, 7V, 9V, 12V, 15V, 20V fixed voltage firmware.
- Automatically Apply Firmware: Highest voltage application firmware.
- Smart Firmware: Polling Voltage Firmware (Convenient to test chargers in batches)
- Super Smart Firmware: With PD output capability display, it can display how many groups of output capabilities this PD head has. It can display which group is currently being applied, and can display the current application voltage.

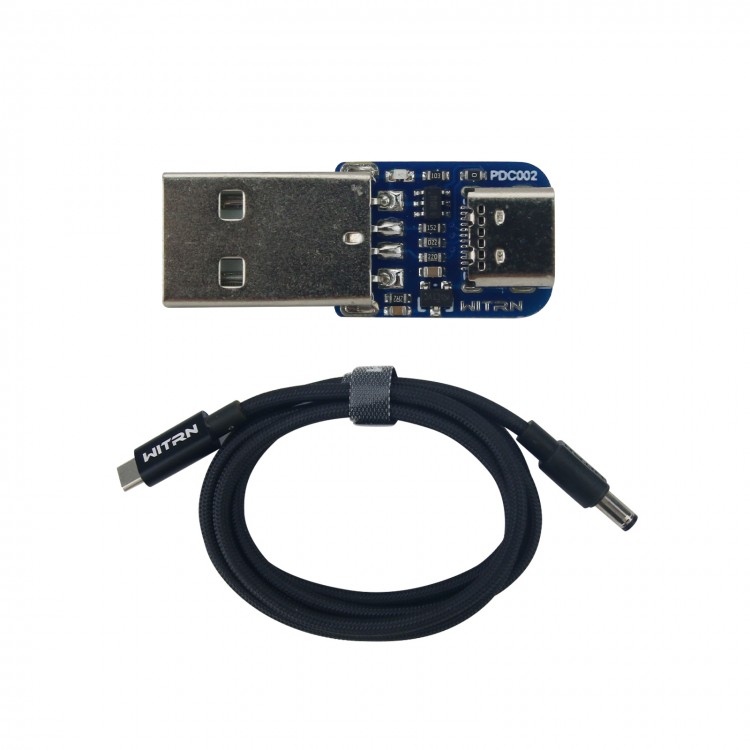

Package Included:
- 1 x PD Cable 1M
- 1 x USB HID Upgrading Adapter Board

Note:
- The above description is for reference only.
- There is a difference between each batch of products. The appearance, interface, color, function, etc. of the product might be changed and are subject to the actual product. Please make sure that you don't mind before purchasing. Thank you!

Download Instructions, Software & Hardware:
http://www.witrn.com/witrn/upd/PDC002_software.rar
