Description:

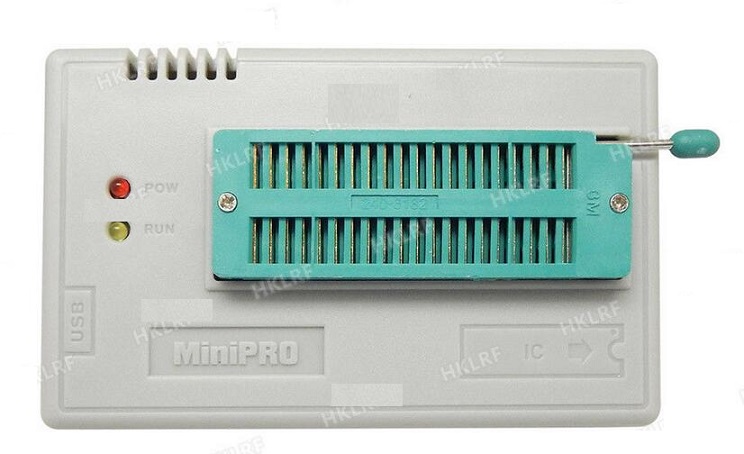

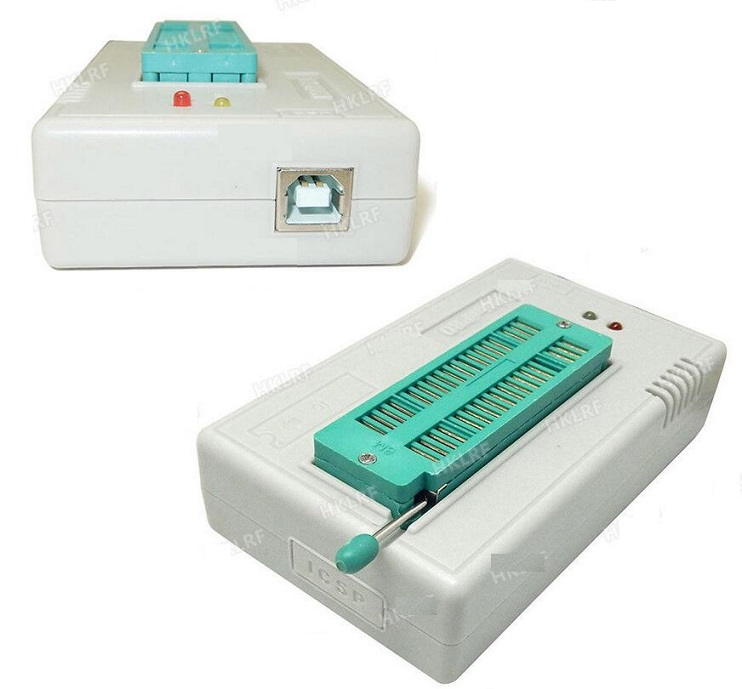

- MiniPro TL866CS multi function BIOS programmer,USB interface high speed programmer.
- True USB Willem & PCB5.0 support DIP32.PLCC32,SOP8,SOP16,TSOP BIOS chip.
- Operation system supports Win2000 WinXP Win2003 Win2008 WinVista Win7.
- This programmer is ultra low cost universal programmer made in China. The programmer comes with a USB interface.With adapter, it can support wide range devices commonly used.It comes with a 40 pin ZIF socket.The software works with Win 2K,Win Xp,Win Vista and Win 7.The software supports both Chinese and English languages.
- The In-Circuit-Serial-Programming supported on this TL866CS model.
Devices supporting:
·EPROM/EEPROM 27 28 29 37 39 49 50 series
·Serial EEPROM 24 25 35 45 85 93 95 serie
·Common MCU chip supporting,such as AVR, Microchip MCU chips.
·Some GAL logic array chips.
·SRAM Test.It can support common 24 61 62 DS12 series SRAM test,respectively data line testing,the address line testing,memory cell incremental testing and unit testing.
·CMOS/TTL test
Package Include:

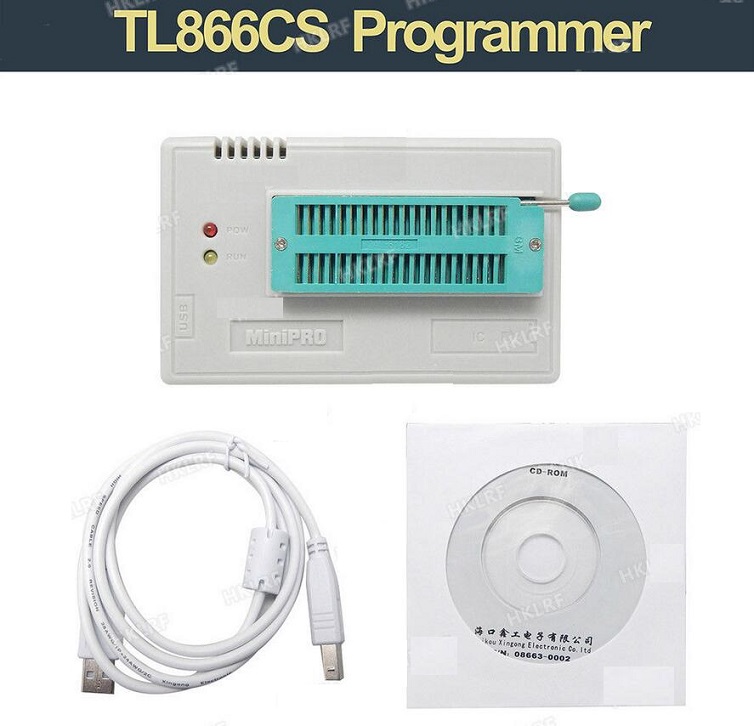

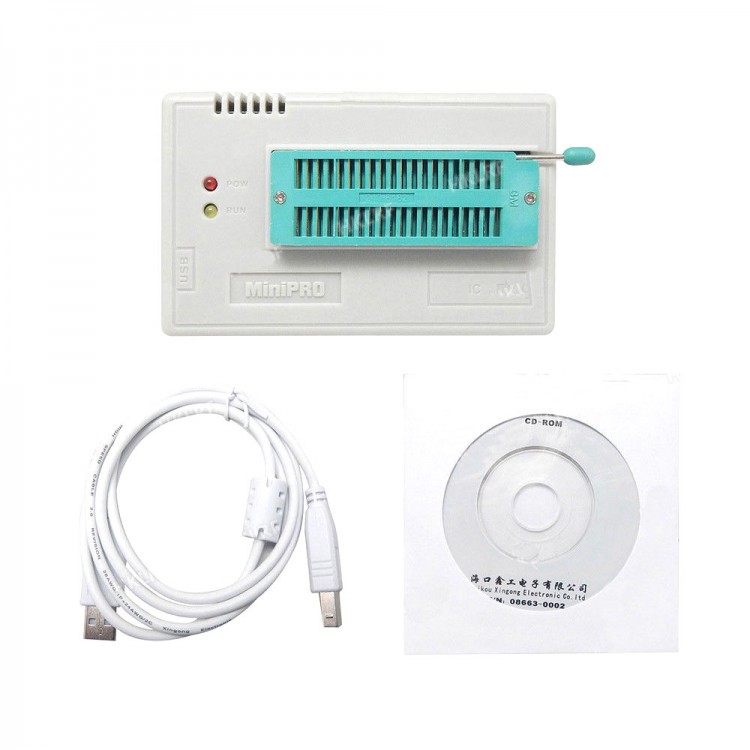

- 1 x True-USB TL866CS MiniPRO Programmer
- 1 x ICSP in circuit programming cable
- 1 x USB Cable
- 1 x Software CD with MiniPro software
