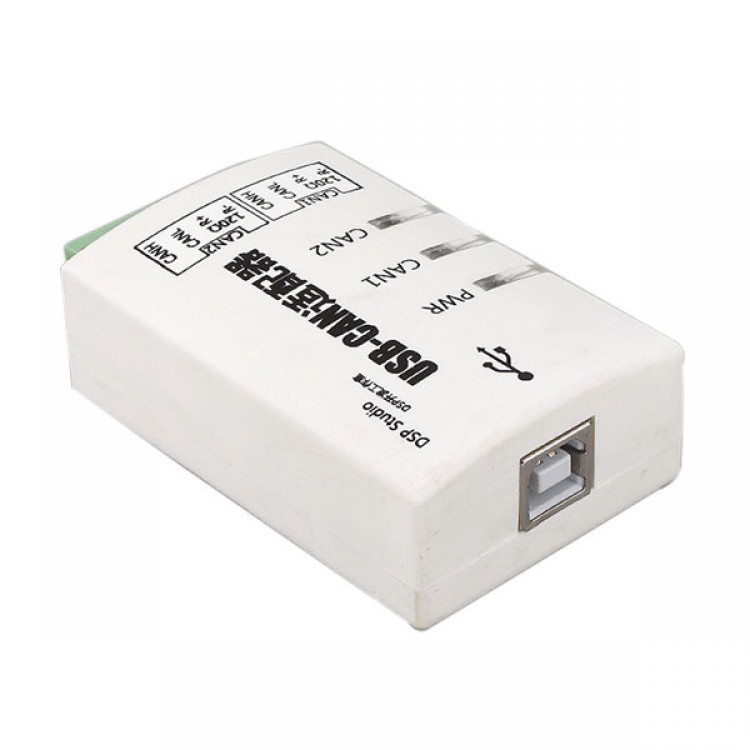

USB to CAN Converter Adapter Dual-channel CAN Interface Card

USB to CAN Converter Adapter Dual-channel CAN Interface Card

Description:
- USB to CAN Converter Adapter Dual-channel CAN Interface Card
- Model: USB-CAN-2A
- Performance: This product uses a 32-bit 80MHZ high-performance processor, the chip is owned by 1-way high-speed USB and two CAN ports
- The MCU chip integrated USB module and 2 CAN module can easily reach the speed of 8,000 frames per second
- 4 USB-CAN on a PC, you can run at the same time, with a monitoring device to simultaneously monitor multiple CAN networks or reliability requirements of data on the comparative experience when occasions.
- Can be use The latest version ZLGCANTest software
- USB drive: drive using Microsoft provided for all USB devices conventional the WinUSB drivers (Winusb.sys). Standard driver compatibility. Windows7 (64-bit, 32-bit), Windows Server 2008, Windows Vista, Windows Server 2003, Windows XP (64-bit, 32-bit), the Windows 2000
- Sample code development environment include: C + + Builder, Delphi, LabVIEW, VB, VC

Performance and technical indicators
- USB and CAN bus protocol conversion;
- USB-CAN-1 (x) has a channel CAN interface;
- USB-CAN-2 (x) with 2-channel CAN interface;
- CANalyat-II analyzer has two CAN interfaces;
- USB interface supports USB2.0 compatible with USB1.1;
- support CAN2.0A and CAN2.0B agreement, supports standard and extended frames;
- support bidirectional transmission, CAN transmit, CAN receiver;
- supports data frame, remote frame format;
- CAN controller baud rate between 10Kbps-1Mbps optional software configuration;
- USB-CAN-(x) A series of products: CAN bus interface is not isolated;
- USB-CAN-(x) B / C series: CAN bus interface with high-speed magnetic coupling isolation, isolated DC-DC power supply;
- ANalyst-II analyzer: CAN bus interface with high-speed magnetic coupling isolation, isolated DC-DC power supply;
- Maximum flow: each CAN channel for receiving the 8000 / s, and send to 8000 / s;
- internal CAN send buffer capacity of 1000 per channel (sending failed automatic retransmission) CAN receive buffer capacity of 2500 per channel;
- USB bus powered directly, eliminating the need for an external power supply;
- USB-CAN-(x) A series of products, the isolation module insulation voltage: not isolated;
- USB-CAN-(x) B Series products, isolation module insulation voltage: 1000V;
- — USB-CAN-(x) C series products, isolation module insulation voltage: 2500V;
- CANalyst-II analyzer, isolation module insulation voltage: 2500V;
- Operating Temperature: -20 ~ 85 ℃;
- Shell Size: 70 * 45 * 24mm.

Product of USB_CAN interface adapter can take advantage of the CANTools software tools, direct CAN bus configuration, send and receive. Users can also reference the DLL dynamic link library, VC / VB routine to write your own applications, to facilitate the development of application software products CAN system.

Typical applications
- PC or laptop's USB interface to send and receive CAN bus network;
-— the fast CAN network data collection, data analysis;
- CAN bus-USB gateway;
- USB interface to CAN network interface;
- extend the length of the CAN bus network communications;
- Industrial CAN network data monitoring.

Package includes:
1* USB to CAN Converter Adapter
1* CD
1* USB Cable
