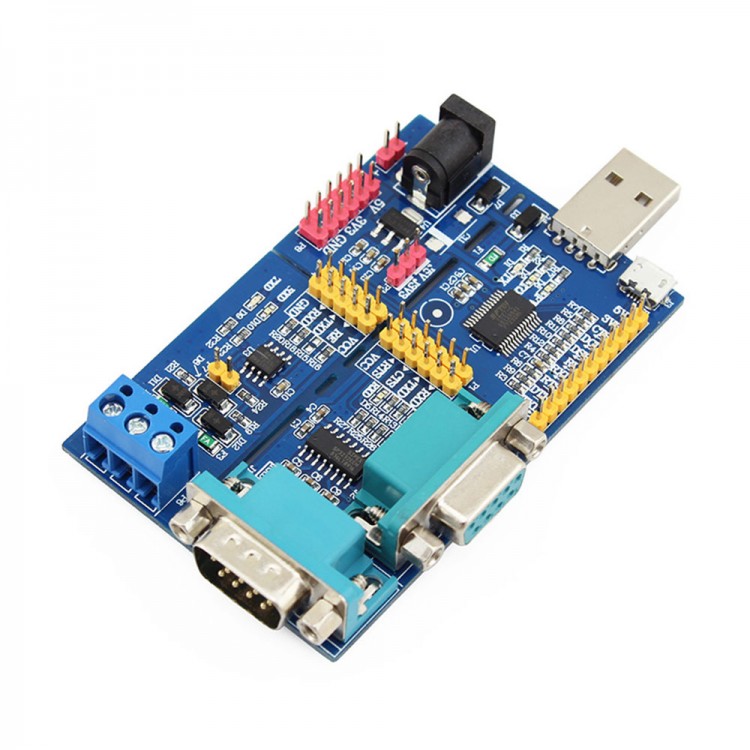

USB to UART USB to TTL RS485 RS232 Serial Converter Adapter USR-TCP232-T2
Features:
- Support the conversion between RS232, RS485 and USB
- Supports TTL5V and TTL3.3V level
- Support DB9 male and female head
- Support standard USB interface and USB Micro interface
Parameters:
- Operating temperature range: -40 to +85 deg C
- Storage temperature -65 ~ +150 deg C
- Humidity range 5% ~ 95%
- Power supply voltage DC5.0V
- Supply current 1.0A
- ESD :All pins for 2KV JESD22-A114-B; for 0.5KV ESD22-C101-D
Support serial conversion type:
- RS232- - - USB
- RS485- - - USB
- RS232- - - RS485
- RS232- - - TTL
- RS485- - - TTL
- USB- - - TTL
Package List:
- 1 x Module
- 1 x Jumper Cap
