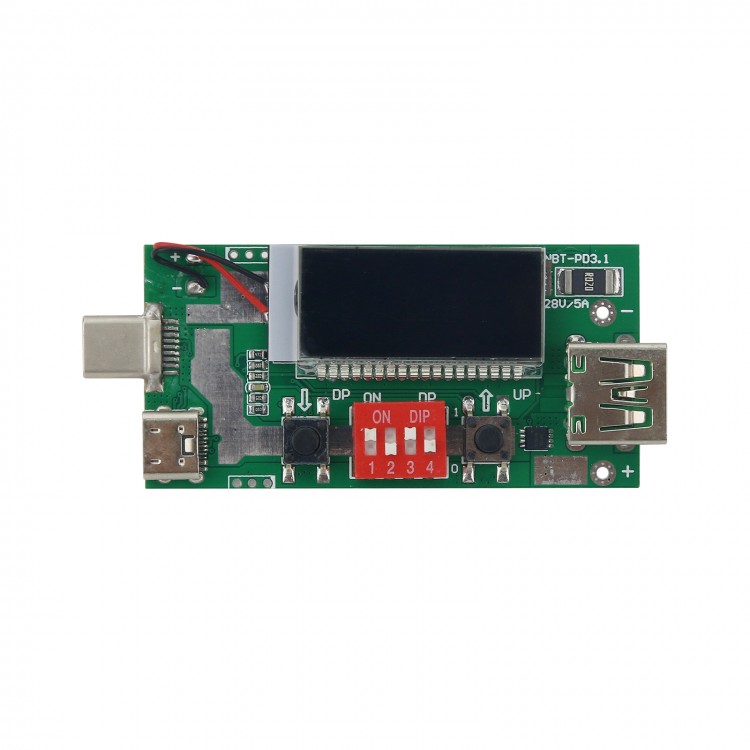

USB Voltage and Ammeter Tester Multi-function PD3.1 Fast Charging Protocol Tester Decoy Module 28V 5A

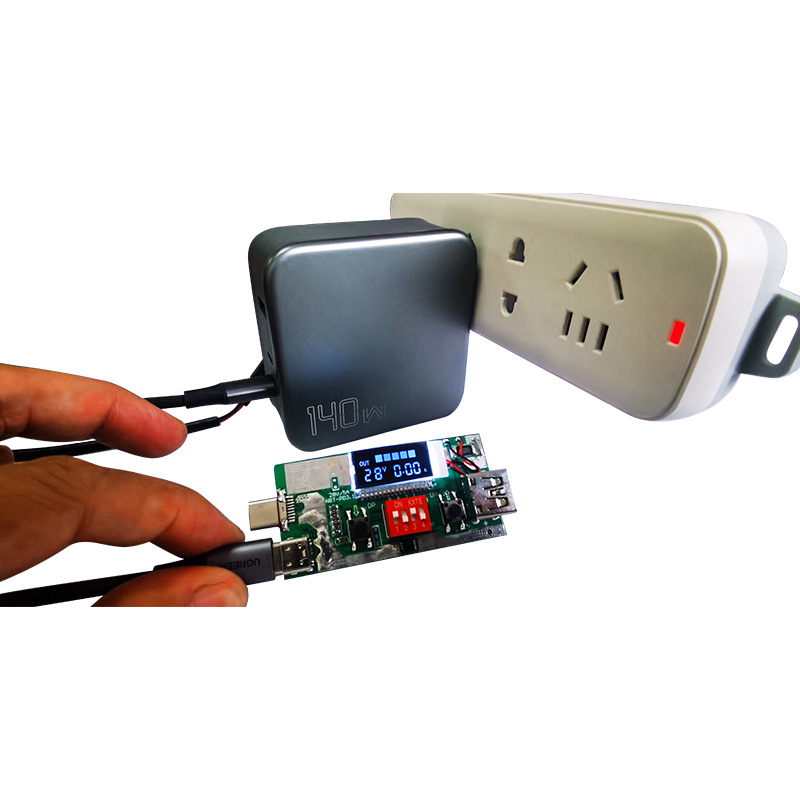

Operating instructions:
- PD3.1 fast charger (140W)
- EPR fast charging protocol PD3.1 data cable (it must be dedicated)

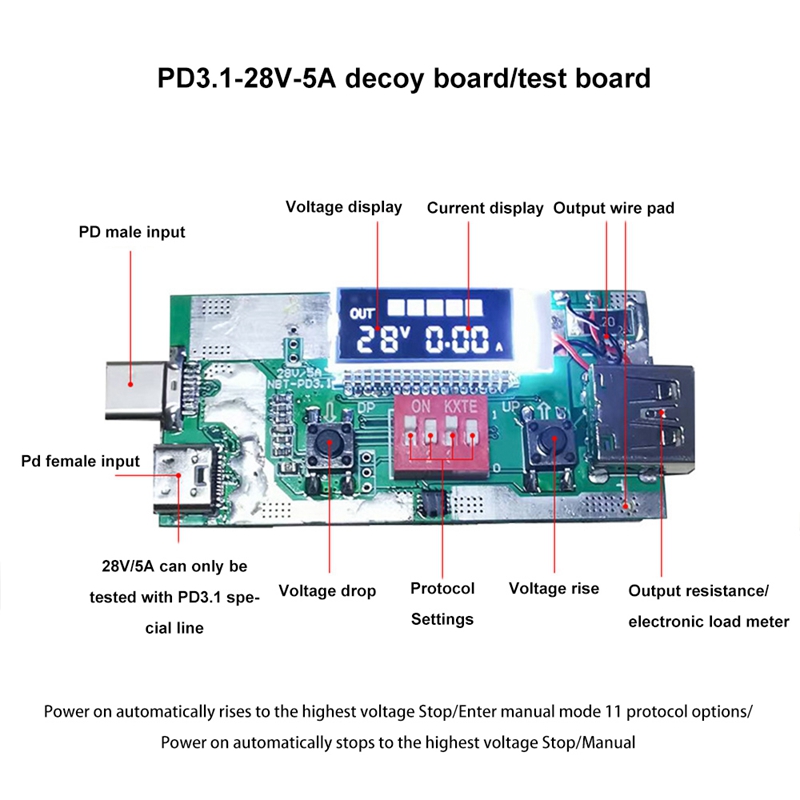

- PD3.1 decoy board

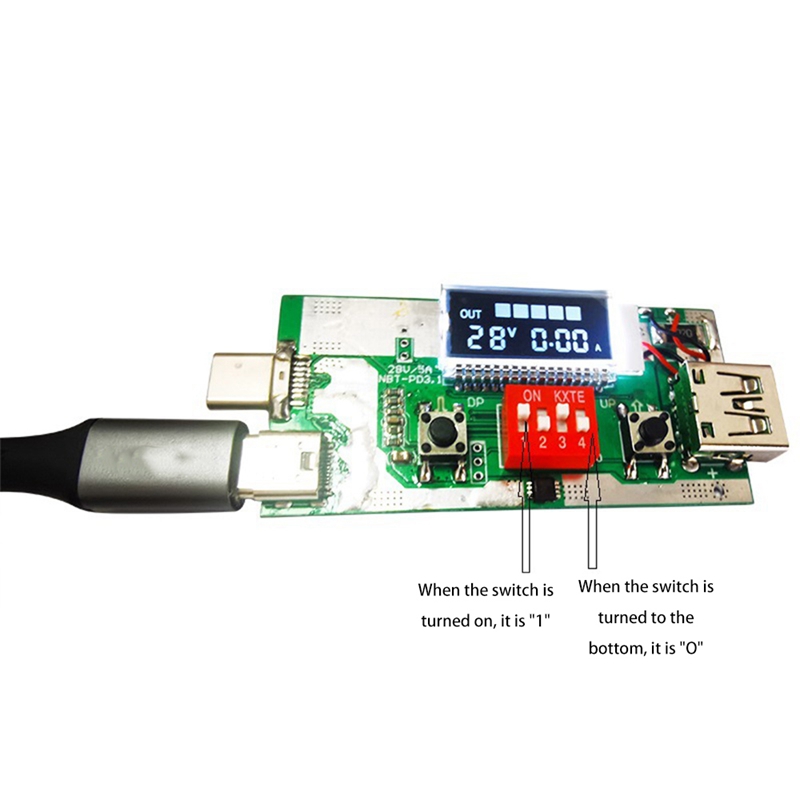

- After preparing the tools, set the position of the dial switch according to the following table
- The position of the dial switch corresponds to different fast charging protocols;

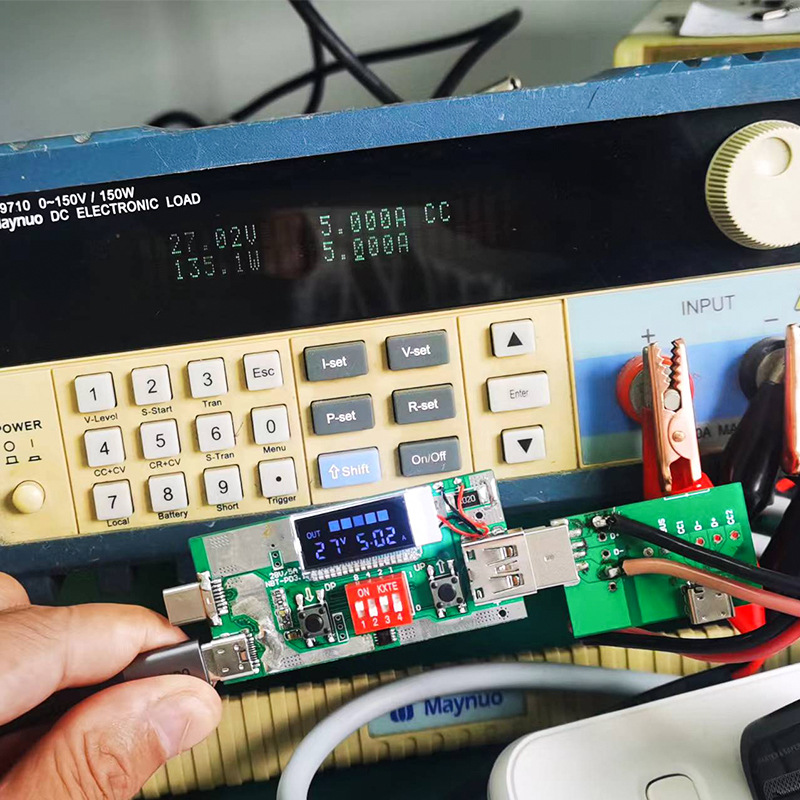

- PD3.1 - 28V-5A decoy test

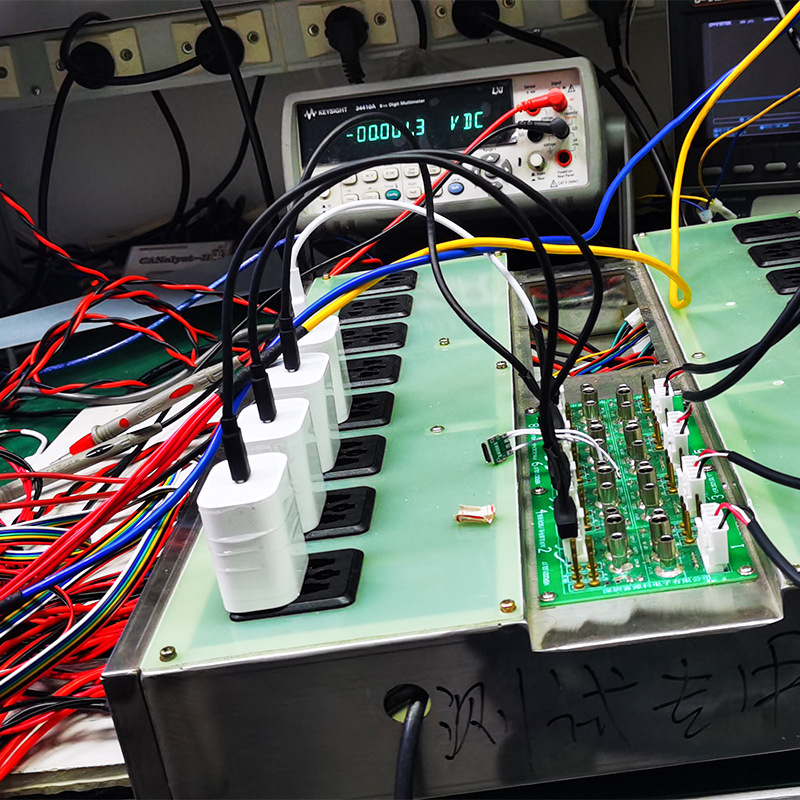

- PD3.1 Fast charging protocol, 140W aging
- Tip: If you need to test PD3.1, you must use wire rods that support PD3.1. Only PD2.0 3.0 with maximum 20V is not supported.
Protocol code description:
- 0000: no protocol, only display voltage and current
- 0001: QC2.0,5V/9V/12V/ 20V
- 0010: QC3.0,3V,6-20V
- 0011: MTK/PE1.1, 5V/7V /9V /12V
- 0100:MTK/PE2.0,5.0/5.5V/6.0V/6.5V.....20V
- 0101:FCP 5.0V 9V
- 0110:SCP_ A5V/4.5A
- 0111:SCP A4.5V/5A
- 1000: SCP B5V 5V/9V/10V/10.5V/12V
- 1001: AFC 5V/9V/12V
- 1010: PD2.0/3.0,5V/9V/12V/15V/20V/28V
- 1011: PD2.0/3.0+PPS in 1011 state: short press+/- 20MV, long press+/- 1000MV
Package Included:
- 1 x Tester
