USB1252A Data Acquisition Card LabVIEW High-speed 12Bit 16-Channel 8 Differential Input 500k Sampling Module

USB1252A Data Acquisition Card LabVIEW High-speed 12Bit 16-Channel 8 Differential Input 500k Sampling Module

Description:
- The USB-1000 series data acquisition card is basically based on the high-speed USB read and write technology to achieve high bandwidth data transmission and the data acquisition needs of the highest 500 KSa/s sampling rate. The analog input has two most commonly used ranges, 0-10V and ± 5V. In addition, 4 counter channels, 16 DI and 16 DO are configured.
- More data download: https://www.smacq.cn/product/usb-1252a/

Features:
- 12Bit analog input resolution
- 16 channels and 8 differential analog input
- 500 KSa/s sampling rate
- 0-10V and ± 5V dual range configuration
- On-board 16k sampling point
- 4 channels 32bit counter
- 16 channels Di and Do
- USB2.0 interface

Application:
- Sensor data acquisition
- Control system and automation
- Laboratory Scientific Research and Application

DAQ-Sensor:
- The general DAQ Sensor data acquisition software can complete the basic parameter configuration of the acquisition card and quickly start the data acquisition task without any programming.
- For the data acquisition of sensor output, the configuration includes sensor labeling, sensor unit transformation and other functions. The data acquisition results can be displayed in the form of waveform for real-time data storage and playback, and the stored data can be converted to csv format, which is convenient for subsequent data analysis and processing.

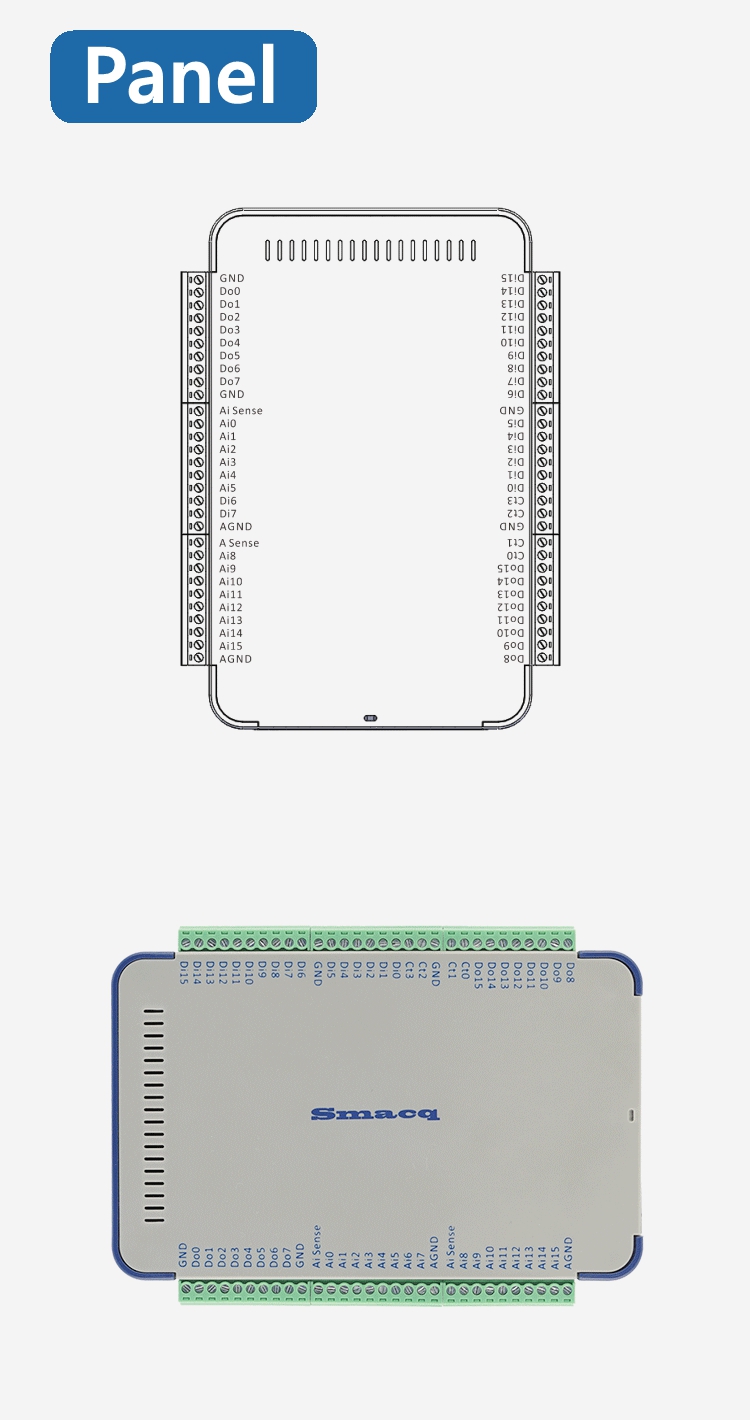

Parameter:
Analog input:
- Analog input channel: 16 channel single-ended or 8 channel differential can be configured through software
- Synchronous sampling: No
- Analog input resolution: 12-bit
- Converter type: Successive approximation type
- Sampling rate: for single channel acquisition: Max. 500kS/s
  for multi channel scanning: Max. 200kS/s
- Timing resolution: 20ns
- Analog input FIFO buffer: 16k sampling point
- Range: 0-10V and ± 5V can be configured through software
- Safety voltage: ±15V, if the input voltage exceeds the safe voltage, the acquisition card will be damaged.
- Input impedance: >1G ohm (power on)
- Input coupling mode: DC
- Trigger mode: Software trigger, digital input trigger
- System noise: NRSE single end 0~10V range: 0.15mVrms
  NRSE single end ± 5V range: 0.3mVrms
  DIFF differential 0~10V range: 0.2mVrms
  DIFF differential ± 5V range: 0.4mVrms
- Precision: NRSE single end 0~10V range: 2.8mV
  NRSE single end ± 5V range: 3mV
  DIFF differential 0~10V range: 3mV
  DIFF differential ± 5V range: 4mV

Digital I/O:
- Digital output channel: 16
- Output high level voltage: 0~3.4V
- Output low level voltage: 0~0.1V
- Digital input channel: 16
- Input low level voltage: 0~0.5V
- Input high level voltage: 3.3~5V

Counter:
- The number of counter: 4
- Resolution: 32-bit
- Counter measurement: Edge count
- Counting direction: Up
- Maximum input frequency: 1 MHz

Package Included:
- 1 x Host
- 2 x 10Pin Terminal Block
- 1 x USB Data Cable
