1.1 USB 3.0 HD video card is a external HD video and audio card,support voiceover recording function.Combining with the software of OSB or XSplit,it could stream living online.Support 1920X1080@60Hz,compatible with USB 2.0 socket,compatible with Windows/Linux/OS X.
2.Character:
2.1 Recording resolution up to 1080P 60FPS Full HD.
2.2 UVC design,free drive,easy to use.
2.3 Allow live video streaming,webcasting or video conferencing to Skype,Facebook live,YouTube live,Livestream,Ustream,Dacast,Wowza Cloud
2.4 Support most video software on Windows and MAC.
2.5 Support USB3.0 high speed socket,recording HD high resolution video to your computer.
3. technical specification
3.1 Input port is HD,recording video and audio.
3.2 Output port is USB,300-350MB/S@USB3.0,40MB/S@USB2.0.
3.3 1 HD port,1 way 1080P 60Hz HD HD,1 way LPCM audio signal.
3.4 Standard HD input/output format.tonality
3.5 Adopt HD 1.4a standard,support 1080P/60Hz 8-bit,(RGB,YUV).
3.6 Resolution support:640*480/720*480/720*576/768*576/800*600/1024*768/1280*720/1280*800/1280*960/1280*1024/1368*768/1440*900/1600*1200/1680*1050/
1920*1080/1920*1200
3.7 FPS support: 25/29.97/30/50/59.94/60fps。
3.8 apply UVC(USB video class),UAC(USB audio) standard,YUY2,RGB24.
3.9 hardware support color exchange,zoom in,zoom out.
3.10 Support adjustment of brightness,contrast,tonal,saturability and other function about image.
3.11 Support the X86 and X64 version of OS below: Windows Server 2008 R2/Windows 7/Windows 8/Windows 10
Linux(Kernel versiom 2.6.38 and above)/OS(10.8and above)Windows Media Live Encoder(Windows)
Adobe Flash Media Encoder(Windows,OS X)/Real Producer Plus(Windows)/VLC(Windows,OS X,Linux).
QuickTime Broadcaster(OS X/QuickTime Player(OS X)).
3.12 working frequency: 300MHz,Band: 16bit.
3.13 power: ＜=2.5W
3.14 temperature: -20℃ to 50 ℃
3.15 dimension: 93x52.2x20mm(LxWxH)

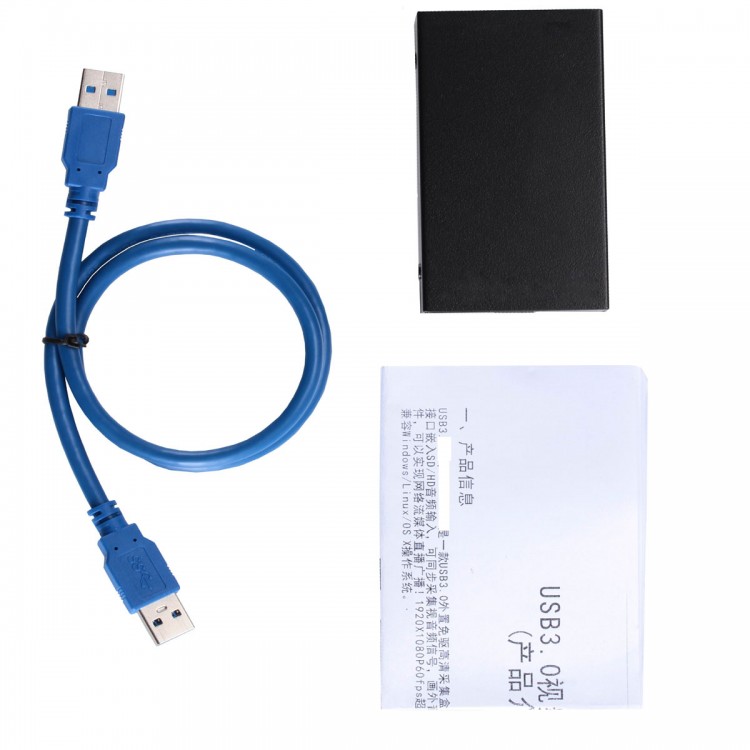

Package List:
- 1 x HD Video Card
- 1 x USB 3.0 Cable
- 1 x User Manual
