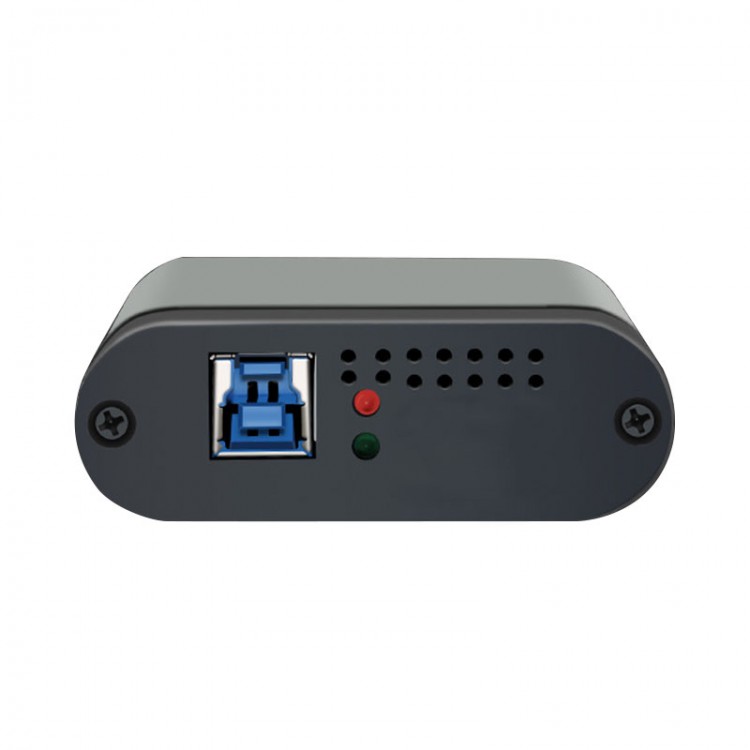

USB3.0 Streaming Box Game Video Streaming Box 1080P 60FPS Live Stream Broadcast UC3200S SDI Input

USB3.0 Streaming Box Game Video Streaming Box 1080P 60FPS Live Stream Broadcast UC3200S SDI Input

Features:
- Connect multiple dongles to one machine
- Enable the up/down conversion of video resolution, frame rate and audio sampling rate
- Support brightness, contrast, hue, saturation, and other screen adjustment functions
- The HDMI video seizure meets UVC standard, support YUV 4:2:2 (YUY2) or RGB 4:4:4 (RGB24) video output
- The HDMI video seizure meets UAC standard and 48KHz PCM stereo audio output
- The video processing engine can be updated via firmware without changing the hardware.
- Automatically detect and de-interlace signals
- Reliable and Stable: 64MB DDR2 on-board memory, it can effectively conduct video frame buffer and USB transfer flow control to avoid interruption or error images when the USB transmission bandwidth is occupied. Pass through 7x24h continuous high load tests in high and low temperatures (0-50 degrees)
- Easy to Use: For Windows, Linux, and OS X, real plug and play, requiring no drivers.

Compatibility:
- Compatible with various USB 3.0 chipsets (For Intel, Renesas, ASMedia, Fresco Logic), compatible with expended USB 3.0 via PCIe Gen1.1 x1
- Compatible with USB 2.0
- Compatible operating systems: For Windows (7, 8, 8.1), Linux (kernel version 2.6.38 and above), OS X (10.8 and above)
- Support For APIs, such as Windows: DirectShow, DirectSound, Linux: V4L2, ALSA, OS X: QuickTime
- Support for software including Windows Media Encoder (Windows), Adobe Flash Media Live Encoder (Windows, OS X), Real Producer Plus (Windows), VLC (Windows, OS X, Linux), QuickTime Broadcaster (OS X), QuickTime Player (OS X), Wirecast (Windows, OS X) and etc.

Excellent Video Processing:
1. Support up to 1920x1200p60 (CVT-RB) Video Input
2. Video output support up to 1920x1200p60 in YUY2
3. Video output support up to 1920x1200p60 in RGB24
4. The process of video and audio is done by the dongle and will not occupy CPU.

Specifications:
Interfaces:
- USB interface: USB3.0, 360MB/s (Compatiable USB2.0)
- Input interface: 1xSDI
- Output interface: 1xHDMI Loop
- Video input: 1080P50/60, 1080I50/60, 720P50/60, 576P, 576I, 480P, 480I
- Audio input: HDMI/SDI embedded
- Operation System: For Windows (7, 8, 8.1, 10), Linux (kernel version 2.6.38 and above), OS X (10.8 and above)

Parameters:
- HDMI interface: HDMI 1.4a compliance, support 1080P/60HZ 8-bit, (RGB,YUV) SD/HD/3G-SDI, SMPTE-259/274/296/372/424/425/292 compliance
- Interface Bandwidth: HDMI: 165MHZ, SDI: 1.485Gb/s, 2.97Gb/
- Video standard: UVC
- Audio standard: UAV
- Color space: YUY2

General Parameters:
- Operation system: For Windows 7, 8.1, 10, Windows Server 2008 R2 32bit 64bit
- Compatible software: For Windows Media Encoder, Adobe Flash Media Live Encoder, Real Producer Plus, VLC, Wire cast, AMCAP etc.
- Compatible development tools: For DirectShow (Windows), DirectSound (Windows)
- Upgrading: Firmware can be updated by USB port
- Dimension: 70x100x24mm
- Consumption: <= 3.5 W
- Working Temperature: 0 to 50℃
- Storage temperature: -20 to 70℃
- Storage humidity: 5% to 90%

Package Included:
- 1 x Video Streaming Box
- 1 x USB Cable
- 1 x User Manual
