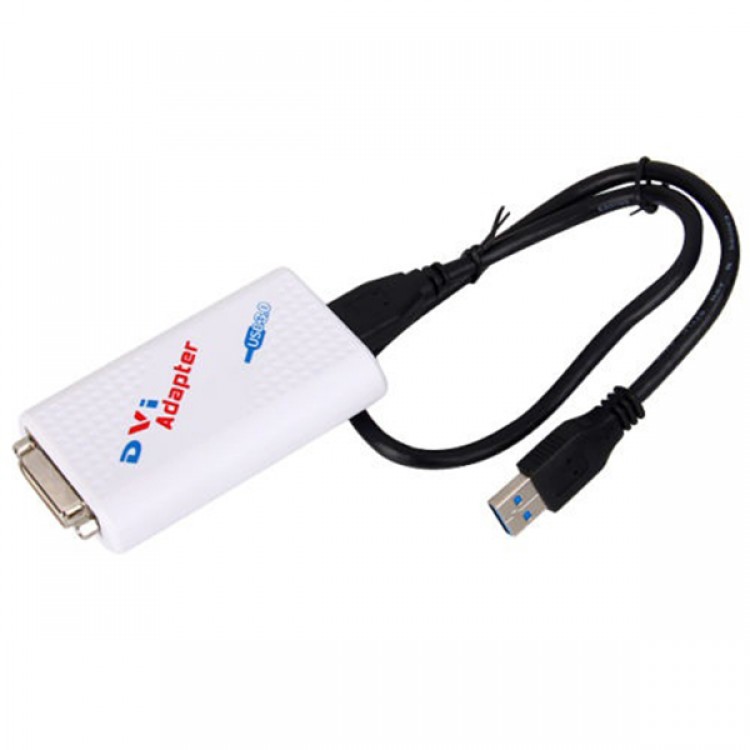

USB3.0 to HDMI/DVI Adapter U20 to Add Extra Displays to Computer

USB3.0 to HDMI/DVI Adapter U20 to Add Extra Displays to Computer

User manual
- Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
　　
Introduction
- The USB3.0 HDMI adapter provides a unique solution to add extra displays to a computer without using traditional graphics card. Users can instantly mirror or extend a desktop onto another display via standard HDMI/DVI, such as LCD, CRT, projector and plasma displays. With USB interface plug-n-play and bus power feature, this product brings multi-monitor applications into the mainstream.

Features
- Add-on monitor, LCD or projector through USB3.0 Super-Speed connectivity. High performance USB Graphics Engine supports resolutions up to 2048 x 1152 @ 32bit.Supports Microsoft Windows operation system.
- Supports desktop display mirror, extend mode, multi screen mode and screen rotation mode Up to six USB3.0 graphic adapters to work simultaneously. Automatic recognition of monitor type, resolution, and features.
- Hot-swapping / Plug-n-Play of monitors without reconfiguration.

Package
- USB3.0 to HDMI Adapter/ USB3.0 to HDMI Adapter/ USB3.0 to Display Port
- USB3.0 Cable
- Mini Disc Operation Manual

Specification
- Input ports:    1xUSB3.0
- Output ports:   1xHDMI(U10), 1XDVI(U20)
- Support Resolution: 640x480, 800x600, 1024x768,
- 1152x864,1280x720, 1280x768, 1280x800, 1280x960,
- 1280x1024, 1360x768, 1400x1050, 1440x900,
- 1600x1200, 1680x1050, 1920x1080, 1920x1200, 2048x1152
- O.S. Support: Windows XP/Vista/7
- Dimensions (mm): 84(D) x52 (W) x 18(H)
- Wight (g): 40

Download and install the latest drivers
- System Requirements
- Processors ranging from Atom N270 based PCs, basic single Core CPUs, and of course the latest Dual, Qual Core i3/i5/i7 CPUs.For 6 screens where 1 screen can run full screen DVD video:1.8GHz Core Duo,1Gb memory.
- Network access for software downloads, or access to a CD-ROM drive.At least one USB2.0 or USB3.0 port.
- Computer screen for use with the device.
- Windows 2000/XP(32-bit only)/Vista
(32/64-bit)/7(32/64-bit).Intel-Based MAC OS X 10.4.11 or higher, Linux 2.6.32 kernel or higher.
- Note: 64-bit editions of XP are not supported. No Windows Server editions are supported.
- Drivers are provided on CD-ROM, but as with any product, the latest drivers are best. On Windows, you can skip the CD-ROM and just plug in your adapter and allow Microsoft’s Windows update to automatically download the latest drives. for Mac OS X, or when Windows Update isn’t available, please visit displaylink.com and download the latest drivers. DisplayLink provided drivers are always compatible with the USB Graphic adapter.
As part of major operating system updates(especially for Mac OS X),the most recent driver updates may be necessary. For drivers in beta, visit displaylink.org/forum
For Linux, DisplayLink provides open source libraries. Drivers are community written. Displaylink.org has details for advanced and adventurous users.

Hardware Installation
- Connect the small end of the USB cable to the USB graphic adapter. Plug in the USB cable to your PC or notebook.
- Select and attach the appropriate adapter for HDMI, DVI output. Connect the required video cable to the device.
- Right-click the UGA Software icon(low right corner) to configure your screens.
