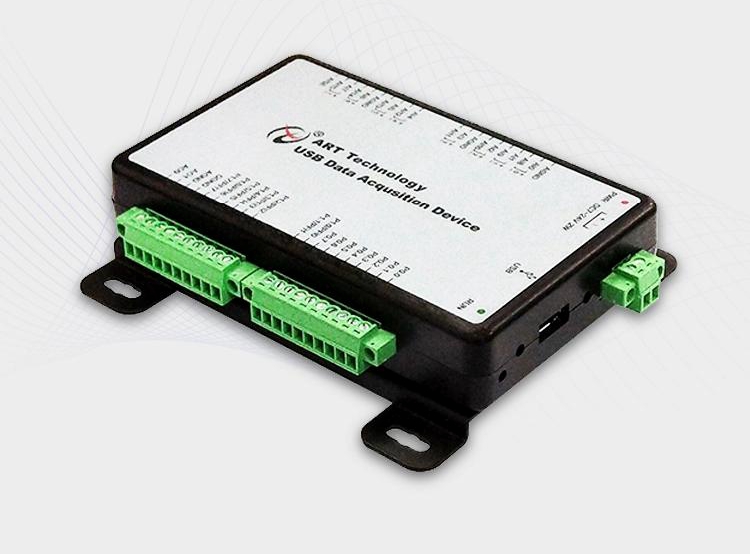

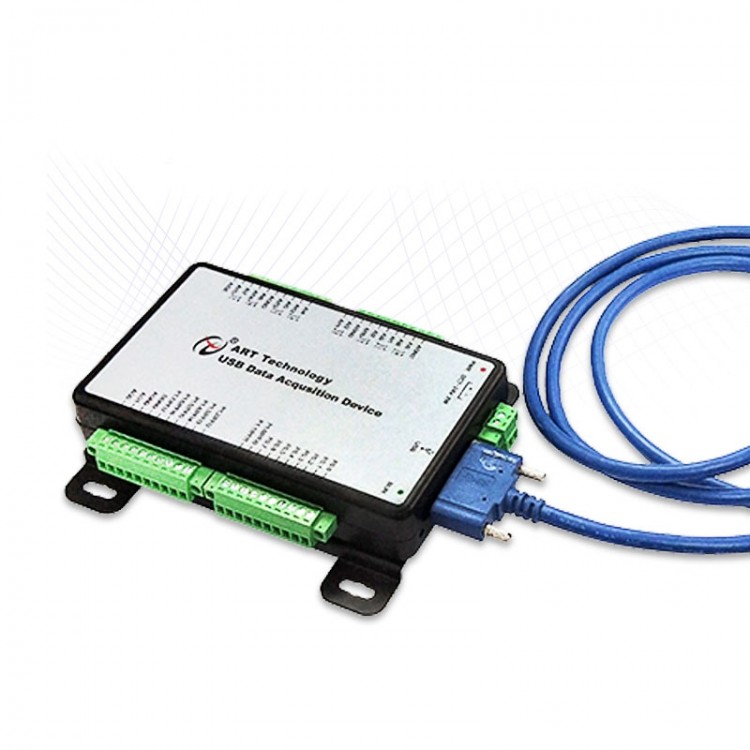

USB3131A 16Bit 100Ksps USB Multifunctional Data Acquisition Module 16-Channel Programmable DIO Analog Acquisition

USB3131A 16Bit 100Ksps USB Multifunctional Data Acquisition Module 16-Channel Programmable DIO Analog Acquisition

Description:
- USB3131A/2A/3A/4A/5A/6A is a USB multifunctional data acquisition card that uses unique USB Stream transmission technology (similar to DMA) to ensure the stability and real-time transmission of USB data at high speed.
- Features include: 16 channel analog signal acquisition; 2-channel analog synchronous output; 16 programmable DIOs; 2-channel multifunctional counters.

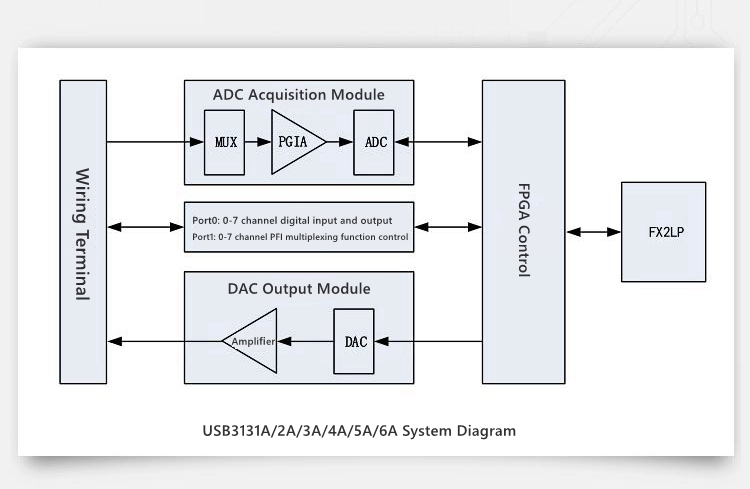

- The system diagram of USB3131A2A/3A/4A/5A/6A mainly consists of ADC module, DAC module, PFI multiplexing function control module, digital input/output module, FPGA control module, USB device controller, etc.
- The ADC module can realize the acquisition of 16 channel RSE/NRSE or 8 channel DIFF. The input front-end uses analog switches to switch input channels, supporting on-demand single point sampling, finite point sampling, and continuous sampling.
- The DAC module can achieve 2-channel signal synchronous output, with an output range of 10V. Supports on-demand single point sampling, finite point sampling, and continuous sampling.
- The digital input/output module includes a PFI multiplexing function control module (providing 8 configurable digital input/output and multifunctional I/O) and 16 DIO modules.
- USB3131A/2A/3A/4A/5A/6A counting includes PWM pulse output edge counting, frequency measurement, cycle measurement, half cycle measurement, pulse measurement, pulse width measurement, double-sided edge interval measurement, and encoder position measurement.

Specification:
- Model: USB3131A/2A/3A/4A/5A/6A
- Product series: data acquisition module
- Bus type: USB2.0 High Speed
- Operation system: for XP, Win7, Win8, Win10

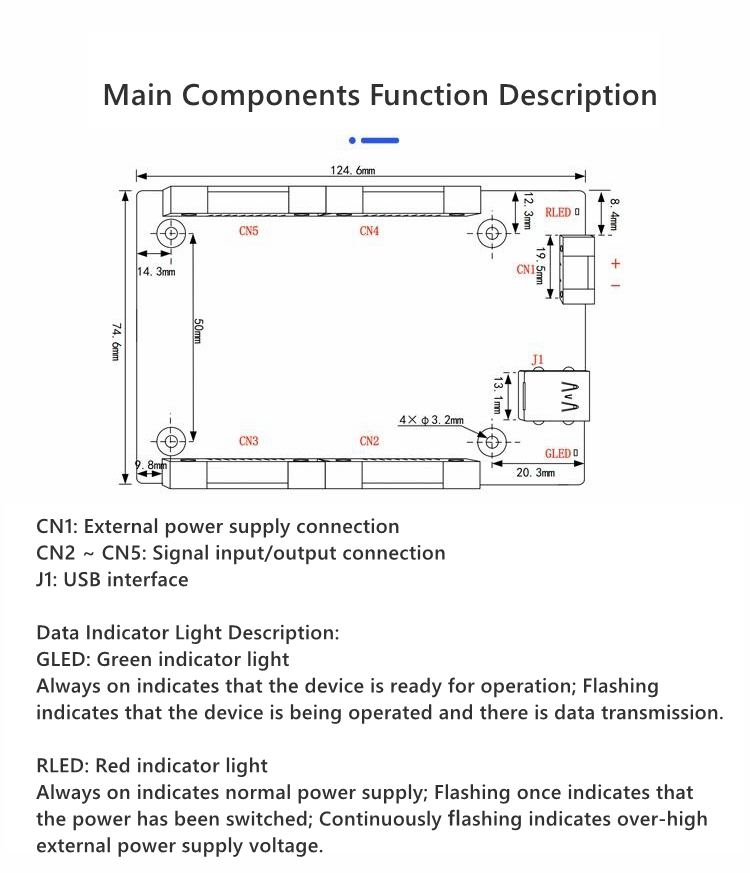

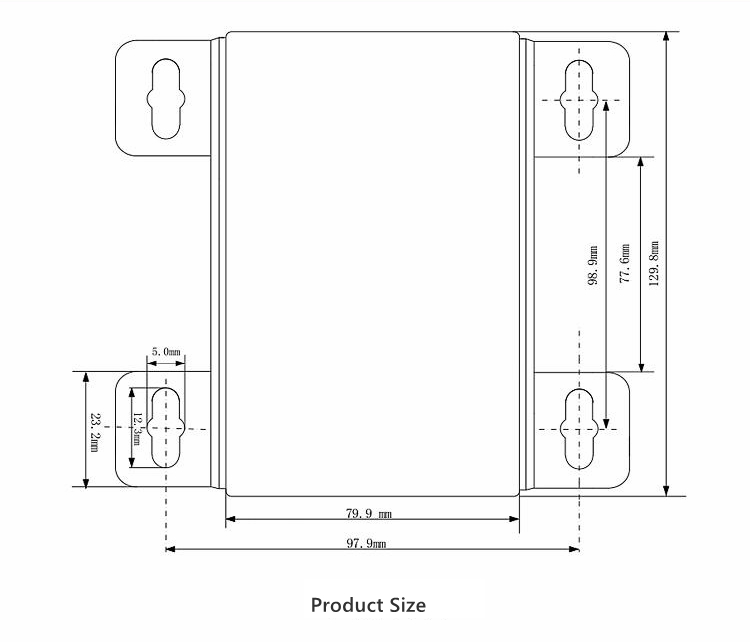

- Module size: L x W = 121 x 75mm
- Installation method: DIN rail (not included), flat installation

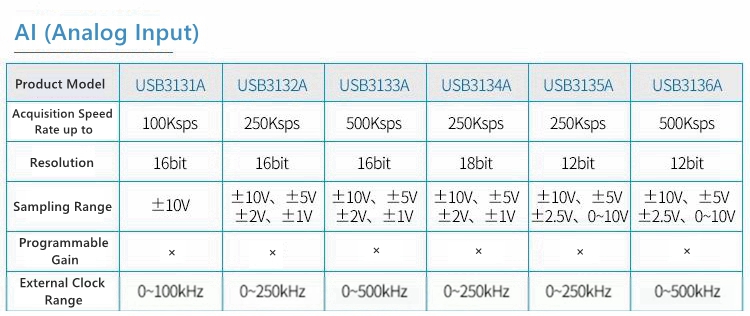

Analog Input:
- Channel: 16 channels (RSE, NRSE); 8 channels (DIFF)
- Calibration method: software automatic calibration
- Channel scanning mode: asynchronous loop scanning
- Working voltage up to: +/-12V
- Protection voltage: +/-25V
- Coupling method: DC coupling
- Trigger method: start trigger, pause trigger
- Trigger type: analog edge, analog window, digital edge
- Input impedance: 1G ohms

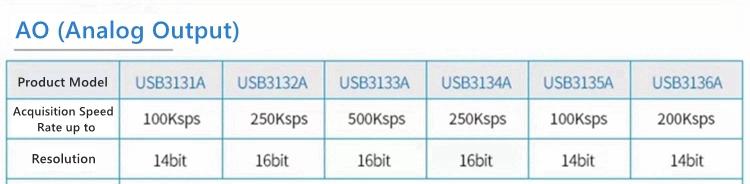

Analog Output:
- Channel: 2 channels
- Sampling range: +/-10V
- Memory depth: 4K digits (point) FIFO memory
- Calibration method: software automatic calibration
- Channel output mode: synchronous output
- Generation method: single-point (on-demand) generation, finite point generation, continuous generation
- Trigger method: start trigger, pause trigger
- Trigger type: digital edge
- Electric standard: TTL compatibility
- Configuration method: programmable I/O direction and status
- Input logic level:
  High level: voltage up to 5V; voltage as low as 3V
  Low level: voltage up to 0.8V; voltage as low as 0V
- Source current output logic level:
  High level: voltage up to 5.1V at 1mA; voltage as low as 4.6V at 20mA
  Low level: voltage up to 0V; voltage as low as 0V
- Sink current output logic level:
  High level: voltage up to 5.1V; voltage as low as 4.9V
  Low level: voltage up to 0.5V at 25mA; voltage as low as 0V at <1mA
- Input range: 0 - 5V
- Input speed rate: 10MHz
- Input impedance: 1Mohm
- Output speed rate: 10MHz
- Single channel drive ability up to: -20mA at Source current; 25mA at Sink current
- Over-voltage protection: -5V ~ +10V
- Sampling method: only support software (on-demand) single point sampling

Package Included:
- 1 x Acquisition Module

Precaution:
- When the device is not powered on, do not connect an external voltage exceeding 3.3V to the DIO channel, and do not exceed the working range for a long time during normal operation to avoid damaging the long-term reliability of the device.
- To reduce the power consumption of the board, it is recommended to use Sink for DO.
