USBCAN Debugger USB to CAN Bus Analyzer Compatible with PCAN Support Offline Playback for CANTest/CANMonitor/TSMaster

USBCAN Debugger USB to CAN Bus Analyzer Compatible with PCAN Support Offline Playback for CANTest/CANMonitor/TSMaster

Functions & Features:
- The USBCAN debugger has one CAN interface, and the PC can be connected to a standard CAN network through the USB bus to build a CAN core control unit for data processing, data acquisition, and data communication networks in fields such as fieldbus testing laboratories, industrial control, intelligent buildings, and automotive electronics.
- The USBCAN debugger can be used as a standard CAN node and is a powerful tool for CAN bus product development, CAN bus device testing, and data analysis; Meanwhile, the USBCAN debugger has the characteristics of small size and easy installation, making it the best choice for portable system users.
- The USBCAN debugger can use the USBCAN tool software provided by our store to directly configure, send, and receive the CAN bus. Users can also refer to the DLL dynamic link library and routines provided by our store to write their own application programs, making it convenient to develop CAN system application software products.
- In the USBCAN debugger device, the CAN bus circuit adopts an independent DCDC power module for optoelectronic isolation, which makes the interface adapter have strong anti-interference ability and greatly improves the reliability of the system in harsh environments.

Hardware Parameter:
- Protocol conversion between USB and CAN bus.
- The USB interface supports USB 2.0 and is compatible with USB 1.1.
- Supports CAN2.0A and CAN2.0B protocols, standard frames and extended frames.
- Supports bidirectional transmission, CAN sending and receiving.
- Supports data frame and remote frame formats.
- The baud rate of the CAN controller can be selected between 10Kbps and 1Mbps and can be configured through software.
- The CAN transceiver adopts magnetic isolation and has an isolation voltage of 2500V.
- The CAN controller is equipped with 3 sending buffers and 8 hardware FIFO receiving buffers, with a maximum receiving capacity of 7000 frames per second.
- Direct power supply via USB bus.
- Isolation module insulation voltage: 1000Vrms
- Working temperature: 0-70℃
- Shell size: 70 x 45 x 18mm

Typical Application:
- Realize the sending and receiving of CAN bus network through the USB interface of PC or laptop.
- Fast CAN network data collection and analysis.
- USB interface to CAN network interface.
- Industrial site CAN network data monitoring.

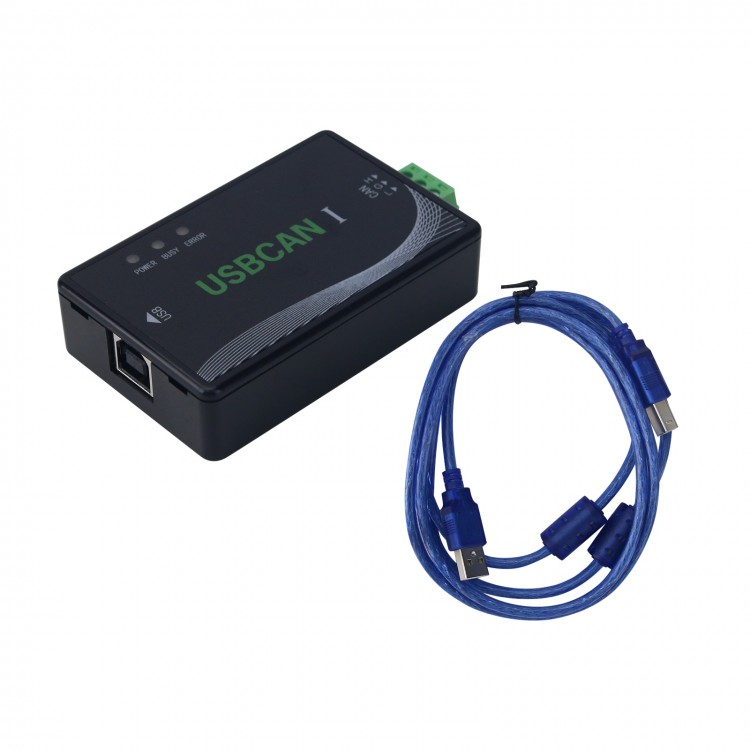

Package Included:
- 1 x USBCAN Debugger
- 1 x USB Connection Cable

Note:
- Please contact our customer service for development related resources after receiving the product.
