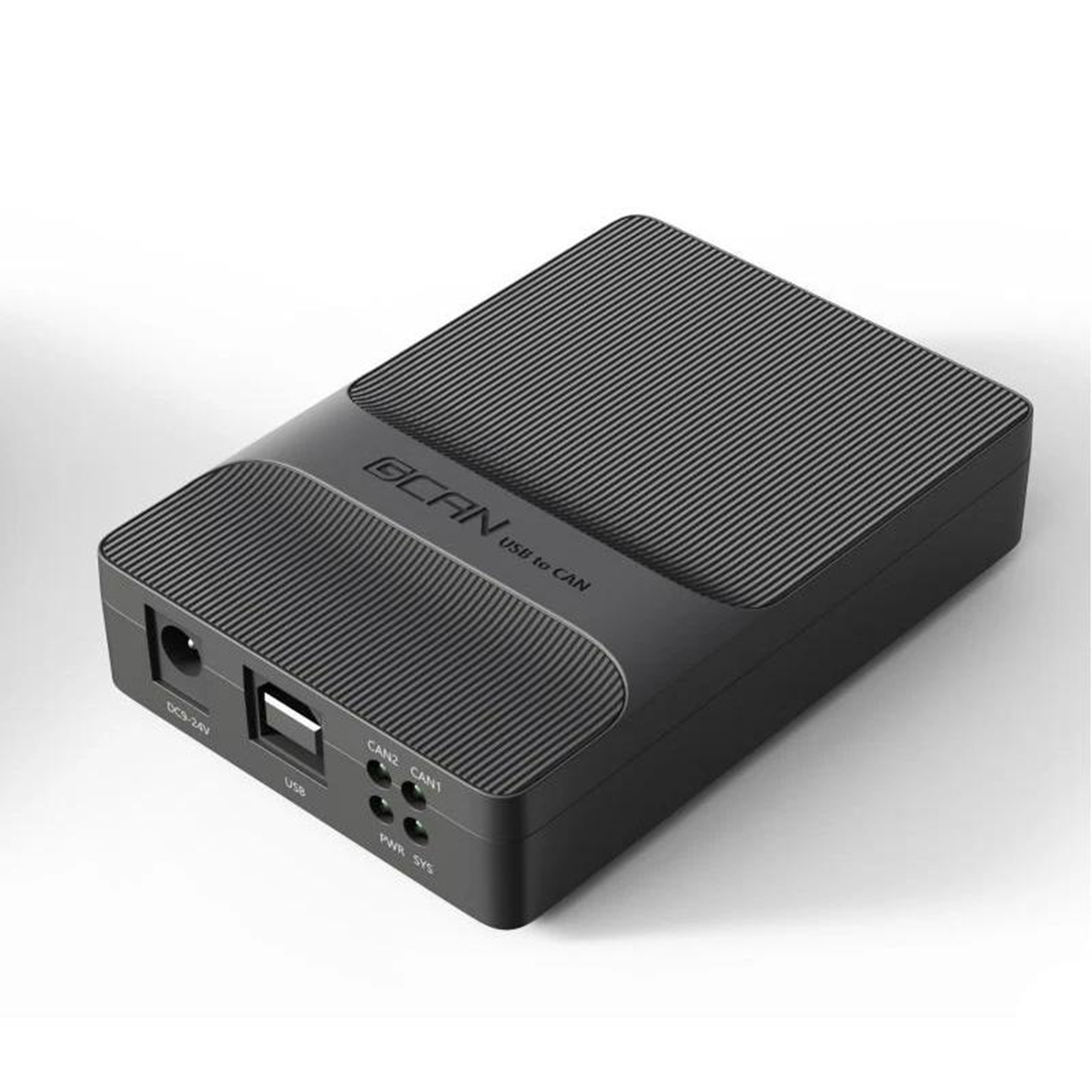

Description:

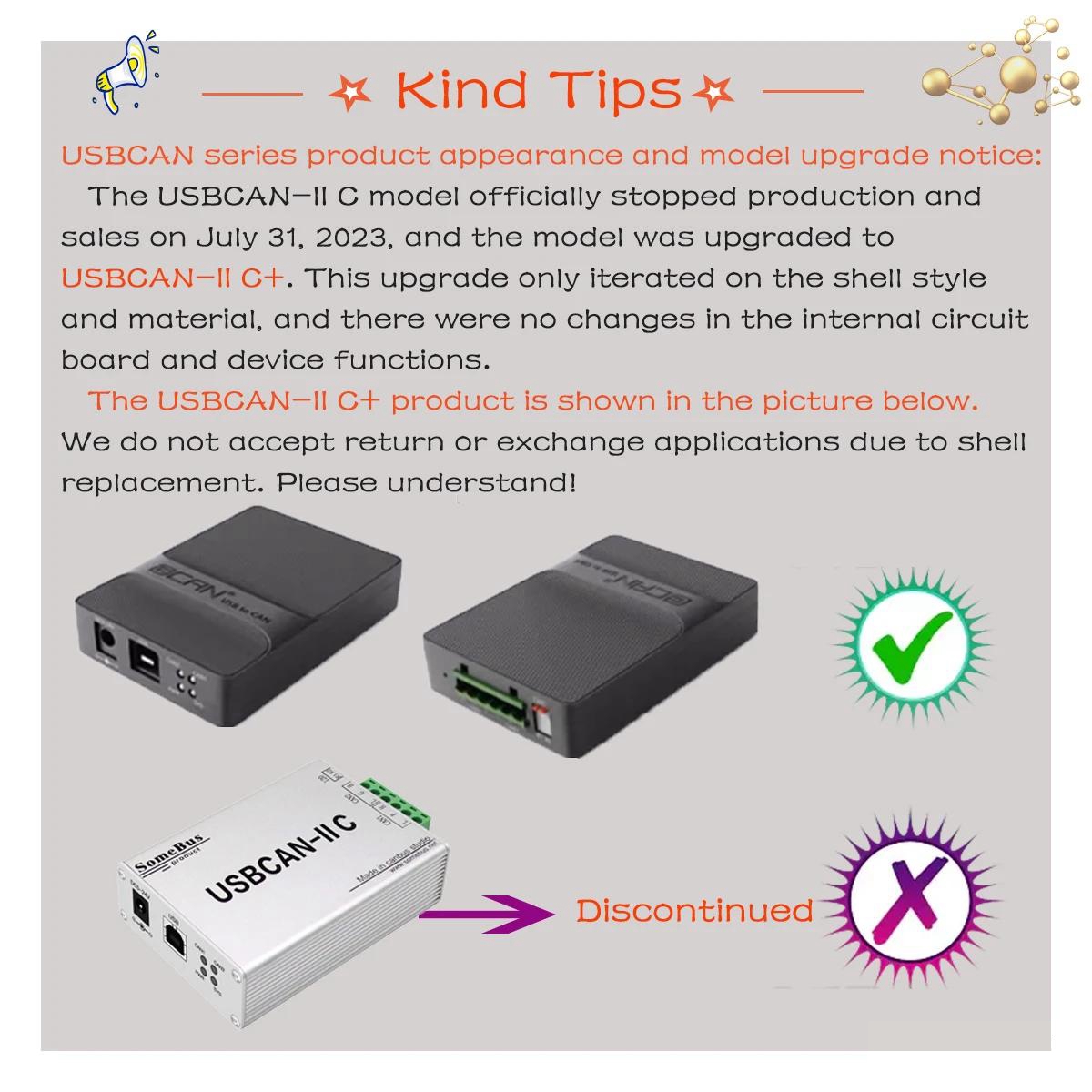

- USBCAN-II C+ is an industrial CAN-bus communication interface card integrated with two CAN interfaces. This type of can card can be compatible with the full speed specification of USB2.0 bus. Using USBCAN-II C+ interface card, PC can be quickly connected to CAN-bus network through USB interface to form a CAN-bus network control node for data processing and data acquisition in the field of CAN-bus network, such as fieldbus laboratory, industrial control, intelligent community, automotive electronic network and so on.

- USB CAN-II C+ is a universal USB-CAN analyzer, an independent dual channel device that can use ZLG CAN Test and ZLG CAN Pro software. Compatible with replacing ZLG USB-CAN II/II+(2A); Compatible with USBCAN-2E-U, running the new CAN Test software, supporting DBC file import function.

Function:
- J1939 protocol DBC file analysis

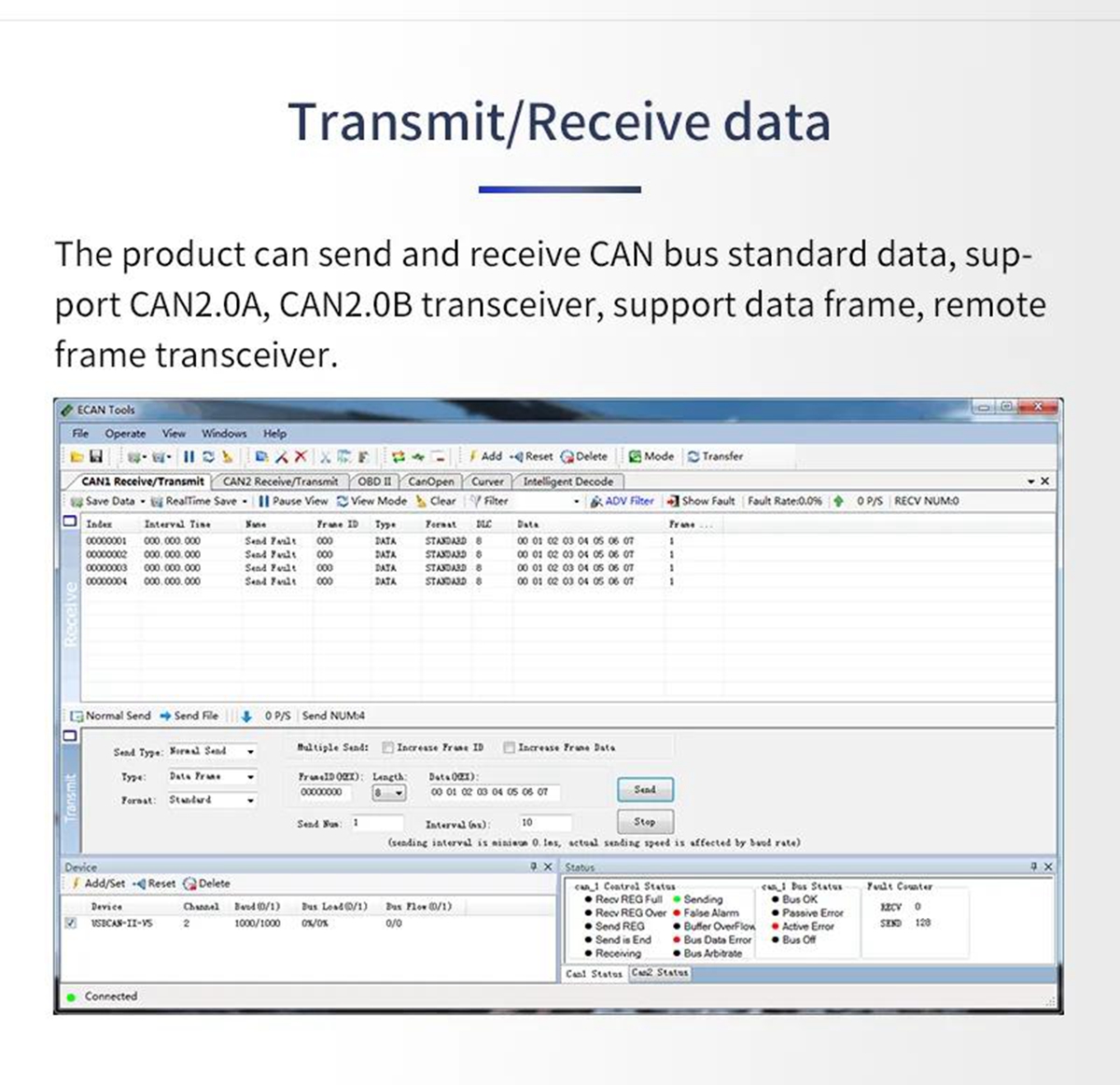

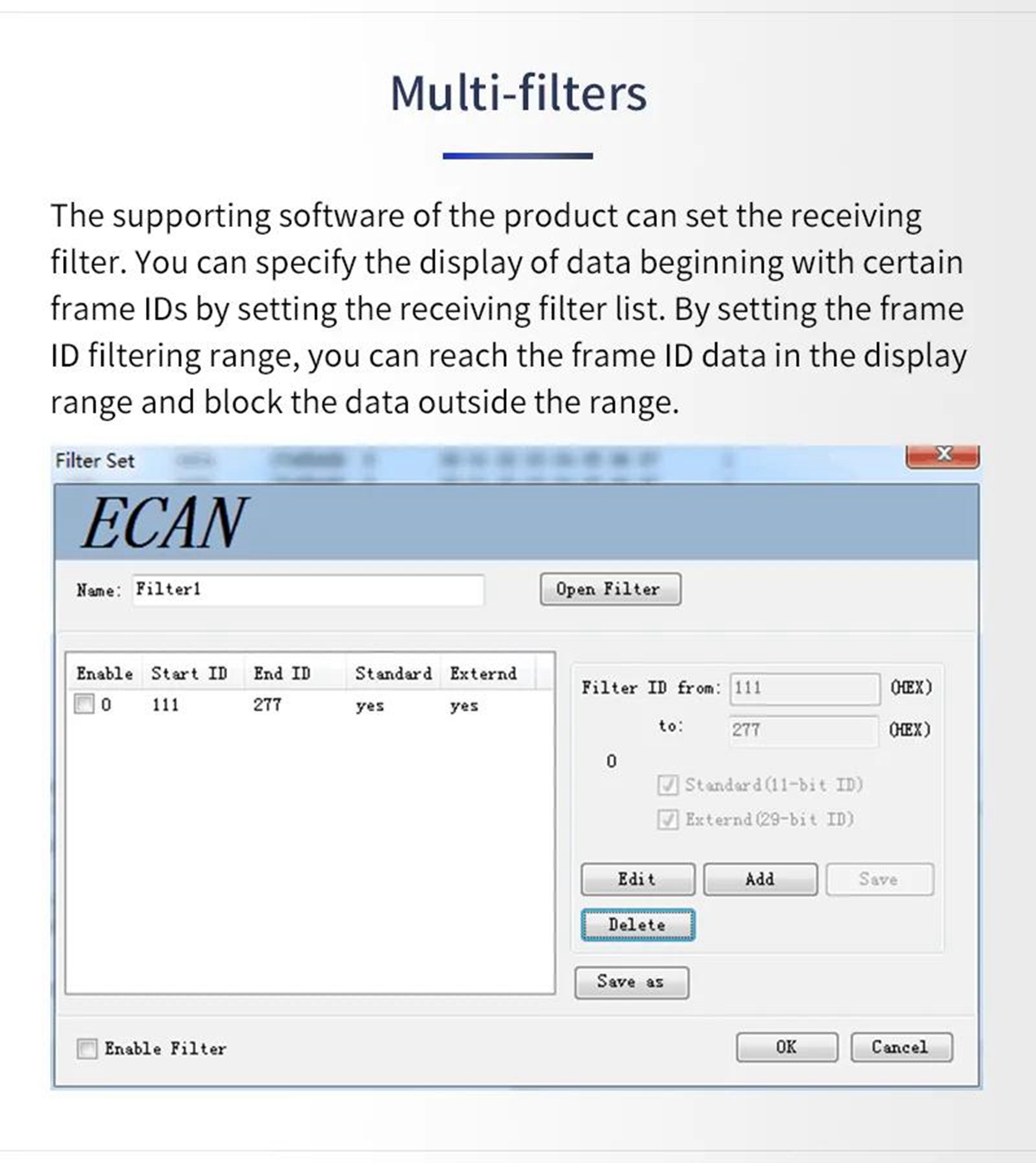

- Data sending / receiving
  CAN bus data can be sent by cycle / cycle without single frame / multi frame.
  Advanced operation can send data according to the time sequence, set up more than 100 time series data.

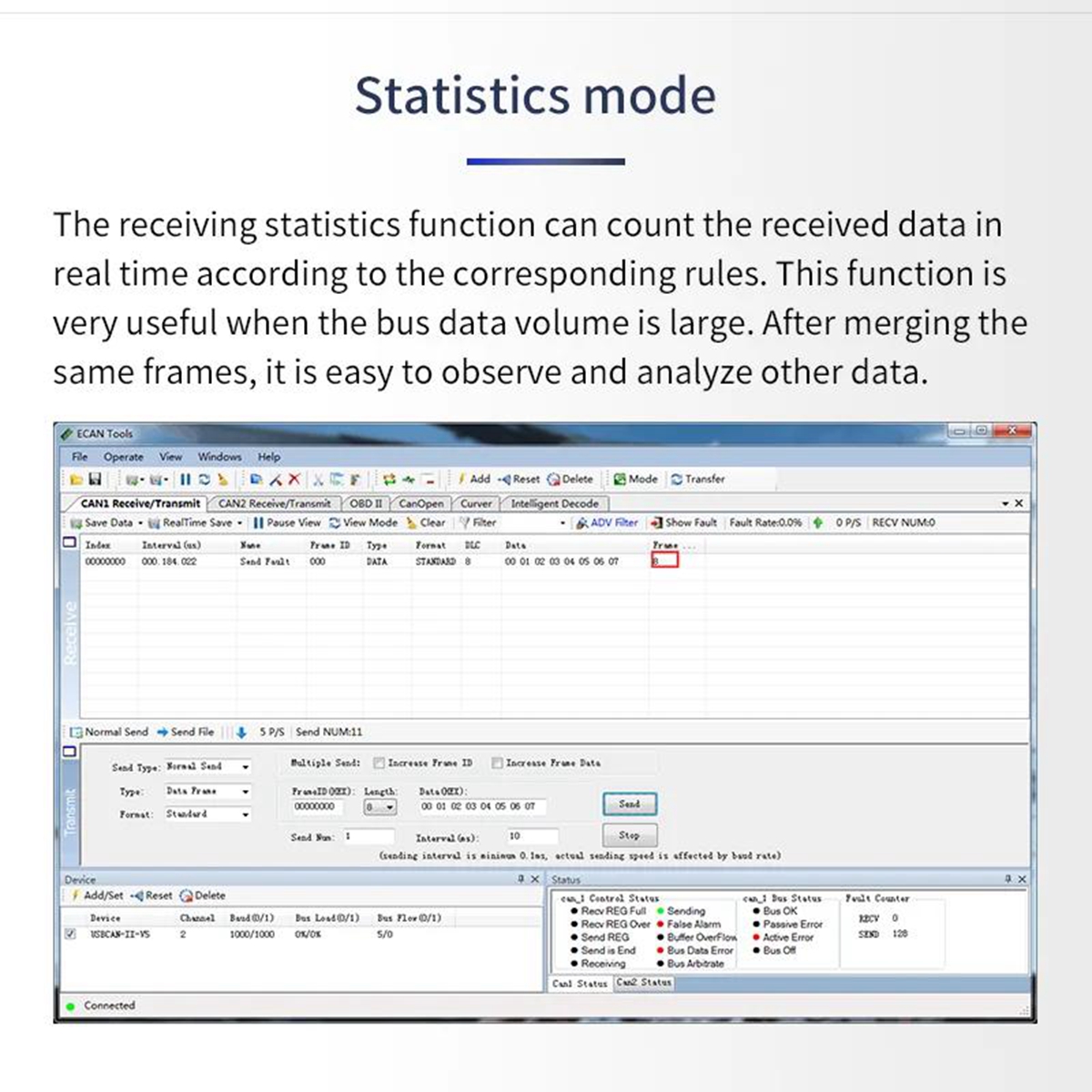

- (real time) Data storage: (real-time) data storage function, all data in the data frame can be saved to the computer in real time for further analysis and use. Software save supports two formats -- text files (.Txt) and Excel files (.Csv)
- Error message display: a detailed description of the error message that can be displayed.
- Bus utilization: the bus utilization rate is displayed intuitively in the form of curves.
- Protocol analysis function, supports CANopen, SAE, J1939, DeviceNET, ICAN and other high-level protocol resolution.
- Secondary development function.
- The trigger function,you can set up the USBCAN device.
- File transfer function.
- Bus monitoring function.
- Each product has particular ID number.
- Import USB connect to the plug-ins.
- The baud rate is calibrated strictly according to the CIA standard.
- The equipment uses our company's special drive.

Features:
- Supports CAN2.0A and CAN2.0B frame formats and conforms to the ISO/DIS 11898 specification.
- The baud rate of CAN-bus communication is arbitrarily programmable from 5Kbps to 1Mbps.
- Use USB bus power supply, or add external power supply (DC5-24V, 130mA) when the power supply is insufficient.
- CAN-bus interface adopts electrical isolation, isolation module insulation voltage: DC 1500V.
- Maximum received data flow: 8000 fps.
- Support for Win2000, for WinXP, for Win7, for Win8, for Win10 and other operating systems for Windows.
- Support for ECANTools, CAN Test, CAN Pro test software.
- Working temperature range: -20℃ ~ +70℃.
- Application: CAN-bus network diagnosis and test; Automotive electronics applications; Electric power communication network; Industrial control equipment; High-speed, large data communication.
- The main control uses an industrial grade 32-bit NXP high-speed MCU, and the equipment must pass the high and low temperature aging test at -40℃ ~ +85℃ before leaving the factory. 3x24-hour full load data transmission and reception test, no data frames were lost.
- All products are produced by factory flow SMT, and the components are double checked by machine and manual to ensure the reliability and consistency of all products before leaving the factory.
- It can be powered by USB or 5VDC. When the USB interface of the computer is overloaded and cannot provide sufficient current, an independent 5VDC plug can be used to power it, improving the stability of the system power supply.
- The CAN terminal adopts advanced magnetic coupling isolation technology to isolate high-voltage common mode signals on the bus, increase product life, improve system stability, and ensure that data is not interfered.
- Protocol parsing function, which can parse standard protocols such as CANOpen, Devicenet, SAE J1939, ICAN, etc. Split and classify the received data according to the protocol standard format for display, or simulate the data of the specified protocol by sending data. (For users who control imported equipment, drivers, sensors, or work in automotive electronics, these protocols will be used. If you are not very familiar with these protocols, this feature can help you accelerate the project process.)

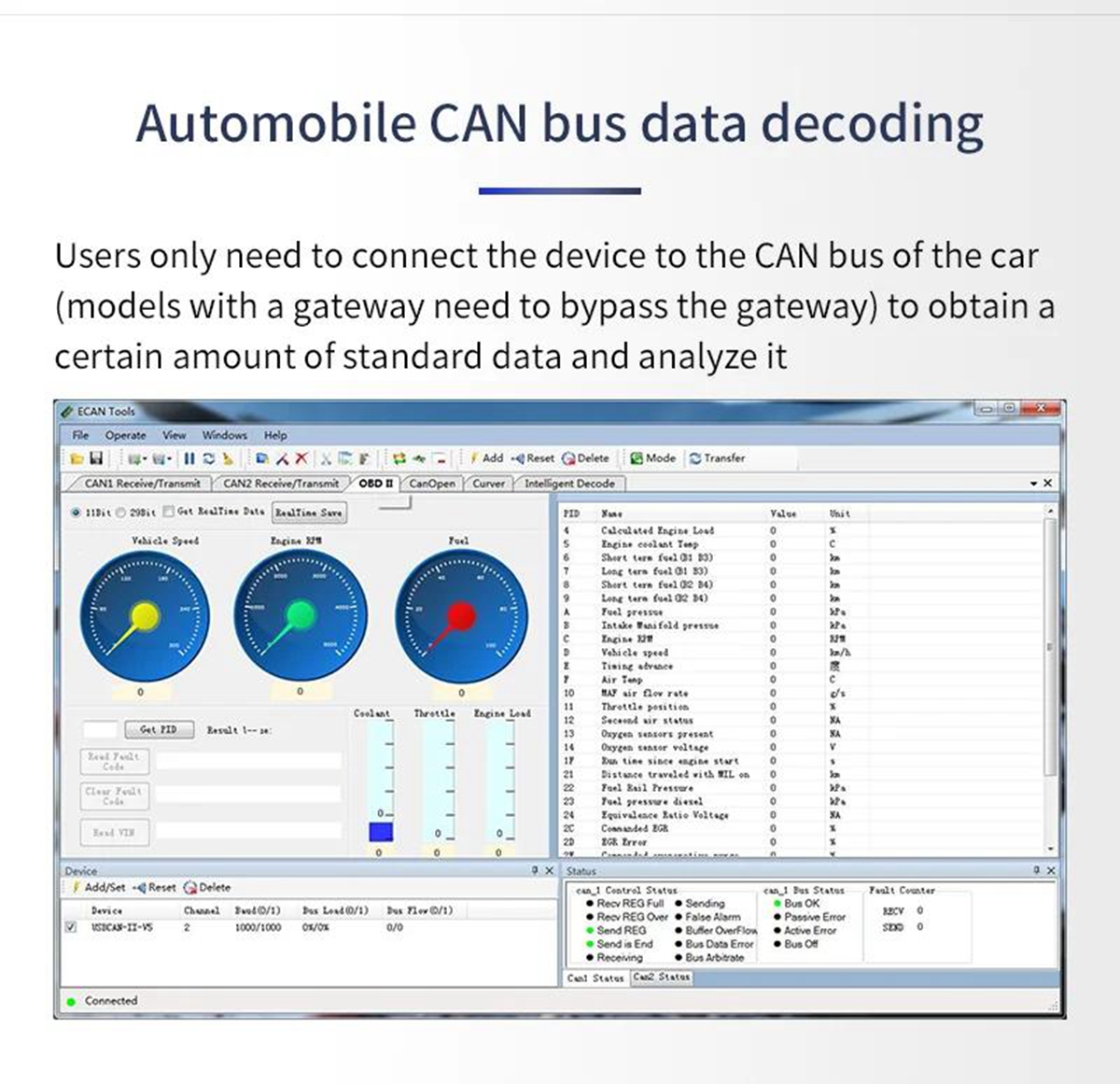

- This software supports DBC file import and parsing. By using the parsing function, the meaning of each data in the frame data sent by the ECU and some vehicle parameters can be intuitively seen. It can be used to crack vehicle CAN signals and debug and repair, making it an indispensable tool for automotive electronics users, saving a lot of time for you.

Protocol Specification:
- This CAN analyzers support CAN2.0A and CAN2.0B frame formats, which comply with the ISO11898 standard specifications. Supports CAN low-level data reception display and analog transmission, and can support all standard or non-standard CAN bus protocols.
- The CAN analyzer supports high-speed and low-speed fault-tolerant CAN data transmission and reception, and can also be extended to support single line CAN through external single line CAN converters.

Information Download Link (includes driver/ECAN Tools software, software usage instructions, secondary development routines and other related materials, CAN bus learning materials, etc.): https://pan.baidu.com/s/10R7zou8yxzarjlwlJkeN1A

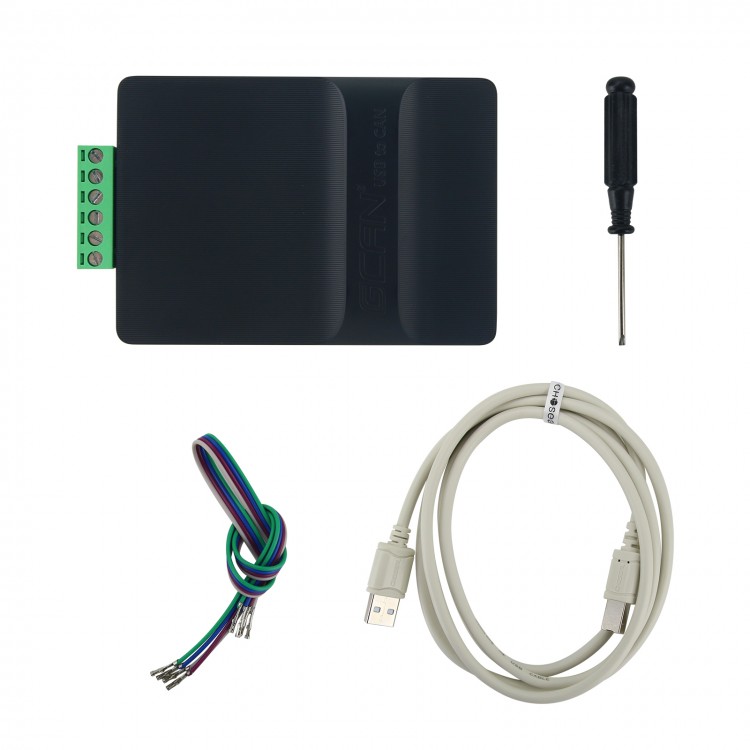

Package Included:
- 1 x USBCAN-II C+
- 1 x USB Data Cable
- 4 x DuPont Cable
- 1 x Screw Driver
- 2 x Resistor
