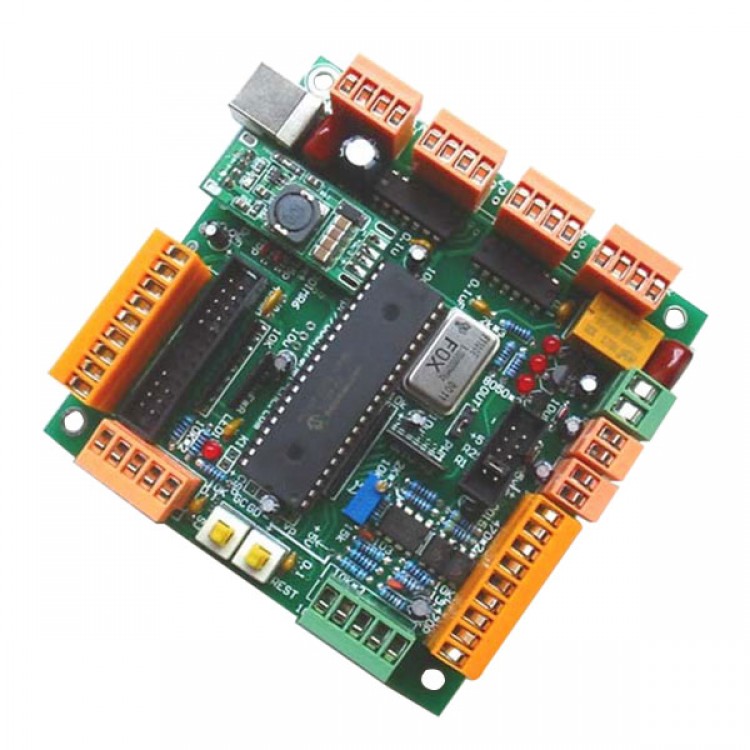

USBCNC 2.1 Version CNCUSB (MK1) CNC USB alternative MACH3

USBCNC 2.1 Version CNCUSB (MK1) CNC USB alternative MACH3

Description:
Using a 40- foot strip microcontroller, easy maintenance and replacement.
All use HT3.96 socket , easy wiring.
3 output is directed outside the direct control of a relay device .
You can control the drive completely isolated .
An external manual interface , it is easy to connect external took control box .
Increase in power since the restoration of insurance to protect your computer.
7 diode , electrolytic capacitor 10 , capacitor 104 7 , 103, 102 a , 4700P / 250V capacitor are both to stabilize .
The latest version of the software can:
You can use the plasma
You can use the 3D printer
You can use man Export G code
Fully functional (Set power supply, inverter spindle speed control , convenient socket , external limit , external knife , external origin. External I2C. External manual , external emergency stop , external reset , external relay output instructions, work instructions , reset button , upgrade button has convenient wiring stepper motor drive) , Easy to use, simple to upgrade , use unlimited. Inexpensive, compact disc in the details , they have a forum exchange column technical guidance .

Features and Specifications :
Can run on Windows XP, Vista or Windows 7Windows 8( 32-bit or 64-bit PC / laptop USB port (2.x version ) )
Can be used in pulse / direction stepper motor and servo motor drives on the market
Input and output buffer for maximum performance
Advanced interpolation algorithm
You can start, stop , pause, and resume execution of the program on your computer
RS274 / NGC G code (EMC2 compatible with standard )
Support for advanced G- code - G40, G41, G42 (the tool radius compensation )
Advanced G- code - G43, G49 ( tool length compensation )
Support for advanced G-code - G54, G59.3 ( the origin of the coordinate system )
Supports 4 and 3-axis G-code
You can import DXF files from the toolpath
You can import toolpath from PLT / HPGL files
You can import image files from the toolpath
You can use the CNC drilling tool path file
You can toolpath simulation
Advanced ATC procedures
Automatic tool length measurement
Provide SDK ( Software Development Kit )
You can define key external power
Foam can be cut
The maximum step frequency 25 kHz
3 digital outputs ( floods, fog , spindle )
The minimum pulse width 12
All axes can be manually
All axes can take the limit
You can control external devices I2C protocol
