USDX-BATT HF QRP SDR Transceiver Full Set 8 Band All Mode Built-in Battery 3 Buttons w/ Microphone

USDX-BATT HF QRP SDR Transceiver Full Set 8 Band All Mode Built-in Battery 3 Buttons w/ Microphone

Description:
uSDX_BATT is optimized and modified based on the open source project uSDX/QCX-SSB of Guido PE1NNZ. uSDX is a shortwave QRP SSB/CW transceiver. With built-in battery, microphone, 1602 display, and ultra-small size, it is easy to carry and convenient to use.

Open source address: https://github.com/threeme3/QCX-SSB
Discussion group: https://groups.io/g/ucx/topics

Performance Characteristics:
- 8 bands: 3.5Mhz/5.3MHz/7MHz/10MHz/14MHz/18MHz/21MHz/29MHz
- Transmitting efficiency: efficiency is higher than 85% (3.5Mhz/5.3MHz/7MHz/10MHz/14MHz); efficiency is higher than 80% (18MHz/21MHz); efficiency is higher than 70% at 29MHz
- Connect to PC, use FT8, JS8, FT4 and other digital mode software control, support CW automatic decoding
- It can reach 3-5W power in 8 bands and can freely upgrade the PA module (TO-220)
- High-precision TCXO for KDS, frequency accuracy better than 1PPM, frequency stability better than 0.5PPM
- Ultra-small size: 120 x 88 x 38mm/4.7 x 3.5 x 1.5" (excluding protruding parts)
- All LPF parts use 100V C0G/NP0 capacitors
- Loudspeaker with built-in LM386 amplifier driver
- Use original LM4562 or LM833 op amp chip
- Three buttons: PTT/MENU/MODE, built-in MIC
- Front MIC/PTT interface (UV-3R hand microphone)
- Abundant interfaces: HP, PTT OUT (CAT), K-head hand microphone, MIC/PTT hand microphone
- BNC antenna interface (BCN-SL16 adapter required, easy to match the antenna)
- External power supply: 12-15VDC (13.8VDC power adapter)
- Built-in battery charger: 12.6VDC
- Metal switch

System Functions:
- Full mode support: USB, LSB, CW, AM, FM
- All-digital and software-based SDR receive channels
- All-digital and software-based SSB transmit channel
- Receive attenuator: 0dB, -13dB, -20dB, -33dB, -53dB, -60dB, -73dB
- DSP filter bandwidths: 4000, 2500, 1700, 500, 200, 100, 50 Hz
- Receiving noise floor: -135dBm at 28MHz (BW=200Hz)
- Receiver Front-End Selectivity: Tuning Frequency -45dB/decade roll-off +/- 2kHz
- SSB/Carrier Suppression: transmit, better than 45dBc; receive, better than 50dBc
- DSP functions: Automatic Gain Control (AGC), Noise Reduction (NR), Voice Triggered Xmit (VOX), RX Attenuator (ATT), TX Noise Gate, TX Drive Control, Volume Control, dBm/S table

Connector (JACK):
1. HP Jack (3.5 mm):
* Tip – Audio out
* Ring1 – Audio out
* Ring2 – INER SPK control
*Sleeve – GND

2. MIC/PTT (KEY) Jack (3.5 mm):
* Tip - SPK
* Ring1 – MIC
* Ring2 - PTT
*Sleeve – GND

CW-KEY INPUT MODE:
* TIP: NC
* RING 1 – DAH
*RING 2 – DIT
*Sleeve – GND

3. KJ:
* SPK Jack (2.5mm)
* TIP: SPEAKER
* RING 1: NC
* SLEEVE: GND
*PTT/MIC Jack (3.5mm)
* TIP: NC
* RING 1: MIC
* SLEEVE: PTT

4. PTT OUT (CAT) Jack (3.5 mm):
* Tip - RXD
* Ring2 – TXD
* Ring2 – SSR output
*Sleeve – GND

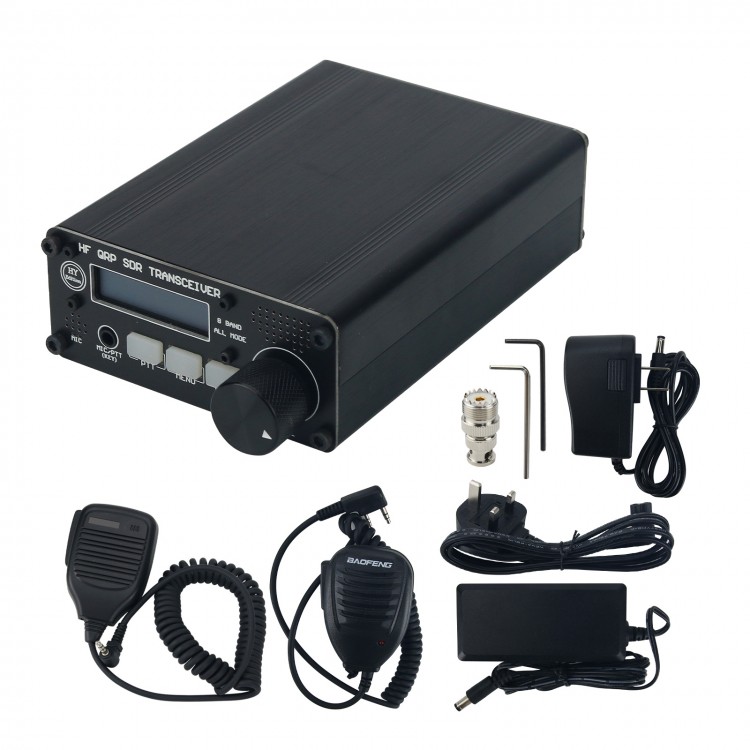

Package Included:
- 1 x USDX-BATT Main Unit
- 1 x Handheld Microphone (UV-3R or K head)
- 1 x Power Adapter
- 1 x Charger
