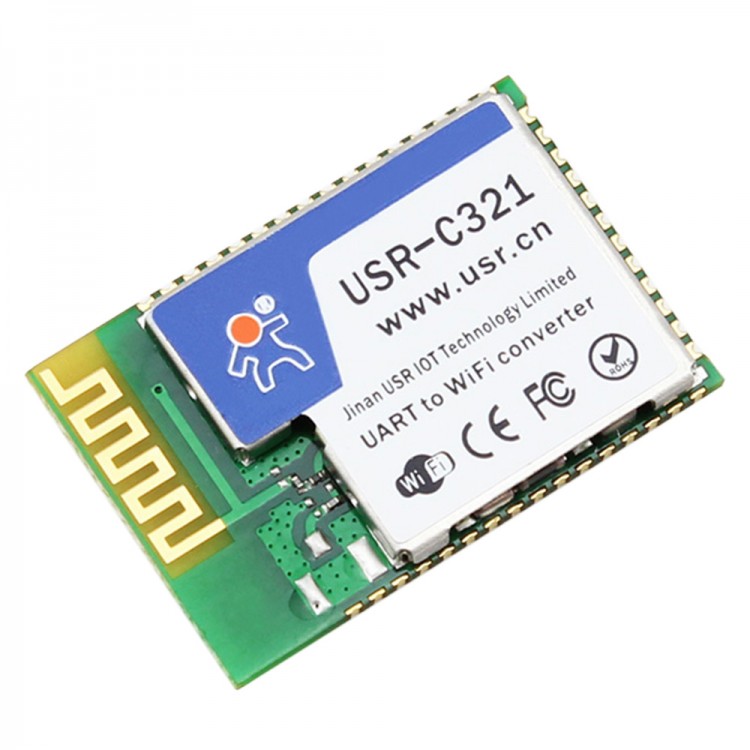

USR-C321 Low Cost Serial UART to Wifi Module Bi-directional Transmission with CC3200 Chip

USR-C321 Low Cost Serial UART to Wifi Module Bi-directional Transmission with CC3200 Chip

Features
- TI CC3200 Chip：TI chips;quality and delivery are guaranteed;based on ARM Cortex-M4 kernel;running frequency of 80 MHZ
- Ultra-low power:  Working : Min 3.5mA; Deep Sleep : Min 25uA
- Minisize: 18.22*26.65*2.8(mm)
-  High-speed UART：Max baud rate of 3M bps
- Simplelink：one key access to WiFi

Function and Detail
- High-speed Baud Rate : serial baud rate up to 3Mbps; have high speed in large amount of data transmission applications like WIFI printer,WIFI serial camera and WIFI high-speed data acquisition.
- Onekey WIFI Connection : support two fast networking ways--"SimpleLink" and "UsrLink";perfectly solve problems of complex networking operation in smart home applications.
- RegistryPackage Function : send registry data package immediately after TCP connection,which is convenient for server identifying and processing;registry data package supports custom ID and MAC.
- Baud Rate Sync : support using USR Visual Serial Software（USR-VCOM）.

Specification:

System Information
- Processor: TI CC3200（Cortex-M4 core）
- Main Frequency: 80MHz

Network Parameter
- Network Protocol: IPv4 , TCP , UDP , DHCP , DNS , HTTP , ARP , ICMP
- TCP Server Max TCP Number: 4

Wi-Fi
- Standard: 802.11 b/g/n
- Network Mode: AP / Station
- Access Terminal Quantity in AP Mode: 1
- Frequency Range:2.412 GHz ~ 2.484 GHz
- Transmit Power: 17.0 dBm @ 1 DSSS; 17.25 dBm @ 11 CCK; 13.5 dBm @ 54 OFDM
- Receive Sensitivity: –94.7 dBm @ 1 DSSS; –87.0 dBm @ 11 DSSS; –73.0 dBm @ 54 OFDM
- Transmission Rate: 802.11b：11 Mbps; 802.11g：54 Mbps; 802.11n：54 Mbps
- Transmission Range: Max 200m (open horizon,3dbi antenna)
- Security：WEP-A / WPA-PSK / WPA2-PSK
- Encryption：WEP64 / WEP128 / TKIP / AES
- Antenna Interface: External: I-PEX connector; Internal: on-board antenna

Serial
- Port Number: 1
- Interface Standard:  TTL：3.3V
- Data Bits: 5，6，7，8
- Stop Bit: 1，2
- Check Bit:  None，Even，Odd，Space，Mark
- Baud Rate: 300 bps ~ 3M bps
- Flow Control: RTS / CTS
- Buffer: receive 1K bytes

Software
- Virtual Serial (USR-VCOM): Windows 2000 or higher（32bit/64bit）
- Configuration: built-in webpage,serial AT command,network AT command
- Networking: UsrLink："USR" defined module networking mode; SimpleLink：onekey networking provided by TI
- Features
RegistryPackage：connecting or sending data with registration package(Registered package can be set as MAC address or double-byte characters)
Baud rate sync
Support custom webpage

Basic Parameter
- Size: 18.22 x 26.65 x 2.8（mm）
- Operating Temp.: -40 ~ 85°C (industrial)
- Storage Temp.: -45 ~ 125°C，5 ~ 95% RH（no condensation）
- Input Voltage: DC 3.0 ~ 3.6 V
- Working Current: 3.3V
- Continuous TX：~75mA
- Normal Mode：Average: ~18mA，Peak: 200mA
- Working：3.5mA
- Deep Sleep：Min 25uA

Product information: click here

Package included:
- 1* USR-C321 UART to WIFI module
