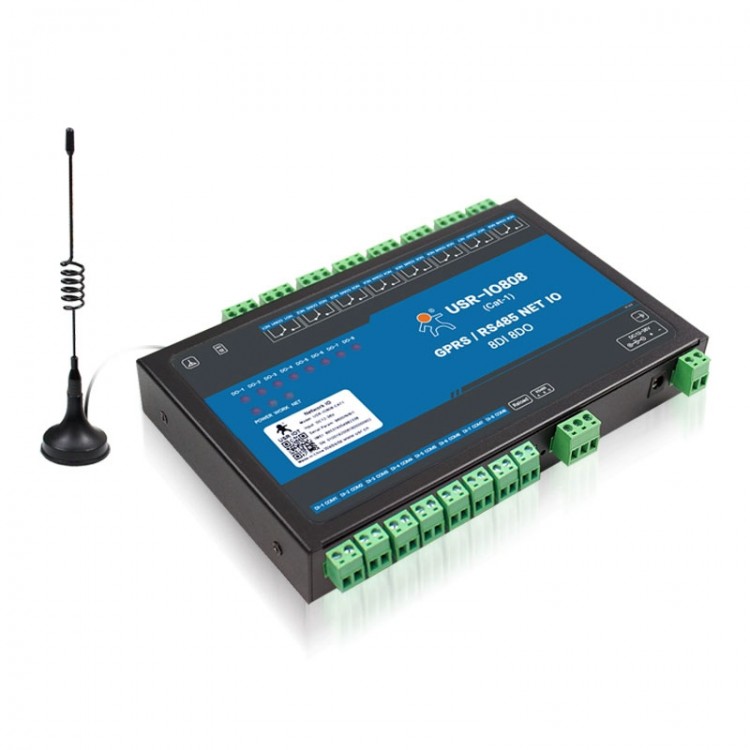

USR-IO808-CAT-1 Network 8-Channel Ethernet IO Controller Remote Control Switch Module Analog Acquisition

USR-IO808-CAT-1 Network 8-Channel Ethernet IO Controller Remote Control Switch Module Analog Acquisition

Description:

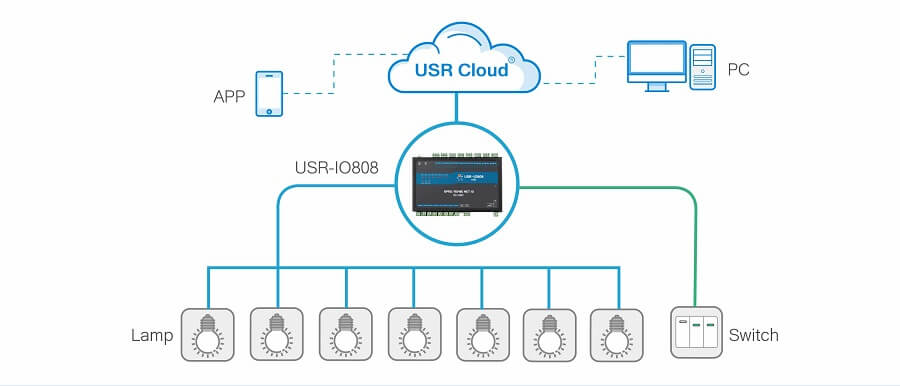

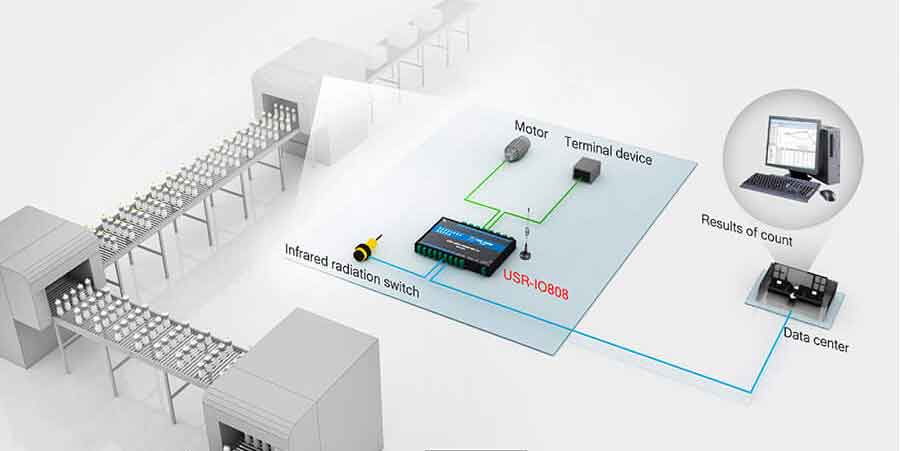

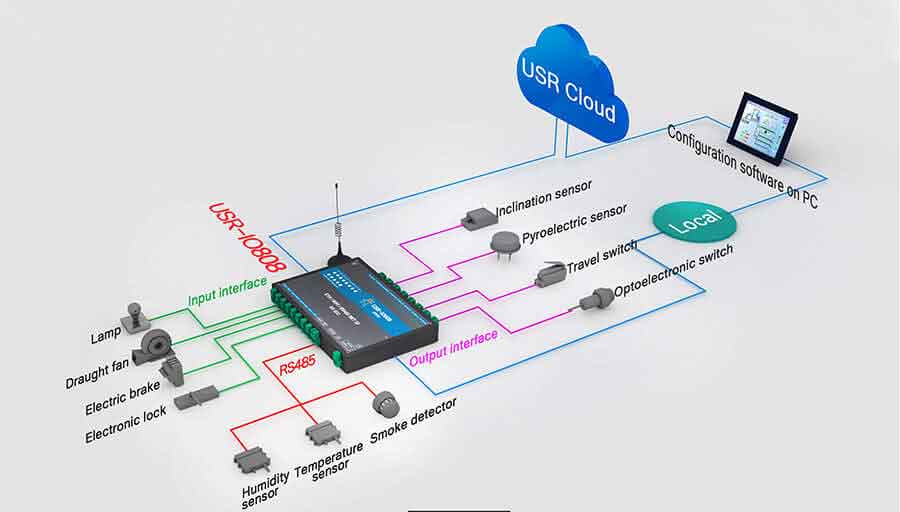

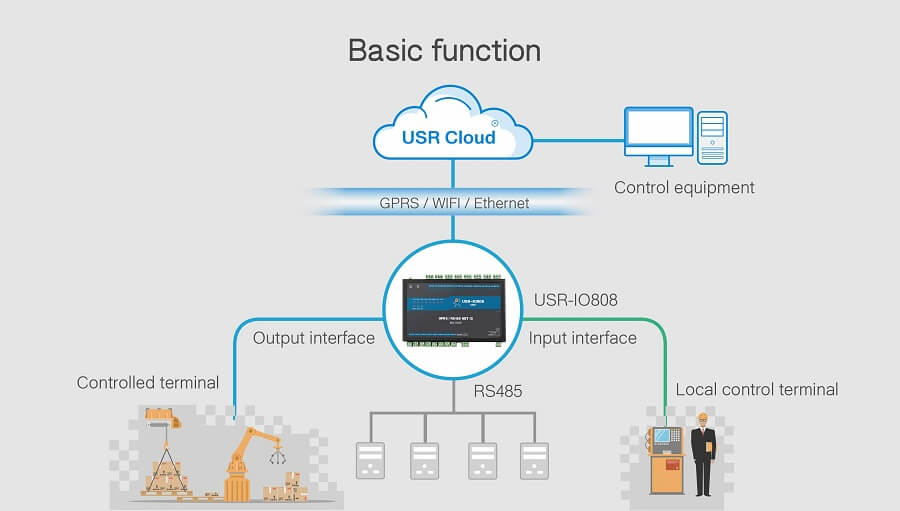

- The default working mode of network IO devices is slave mode, which can be host queried and controlled by both the network and RS485 end simultaneously. You can also choose the master mode, and the RS485 interface of the device can cascade Modbus RTU devices, which is suitable for remote monitoring and control project applications, such as temperature and humidity agricultural greenhouse monitoring applications.

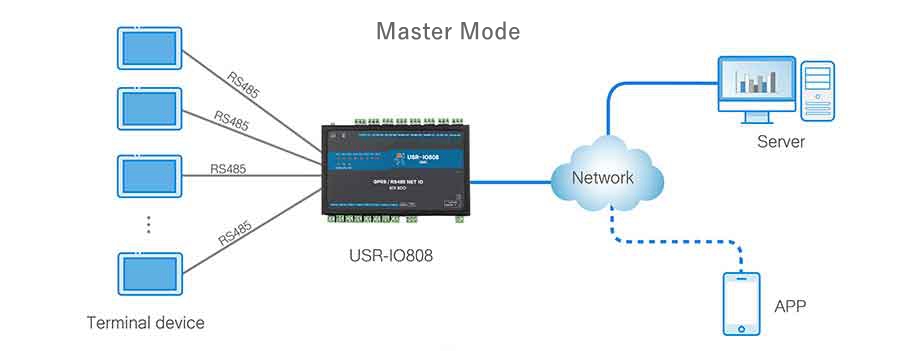

- Master mode: After receiving data, network IO devices first determine whether the target address is a local address. If it is a local address, the protocol is processed, and non local addresses are forwarded. Users can mount multiple slave devices on the RS485 bus through this mode.

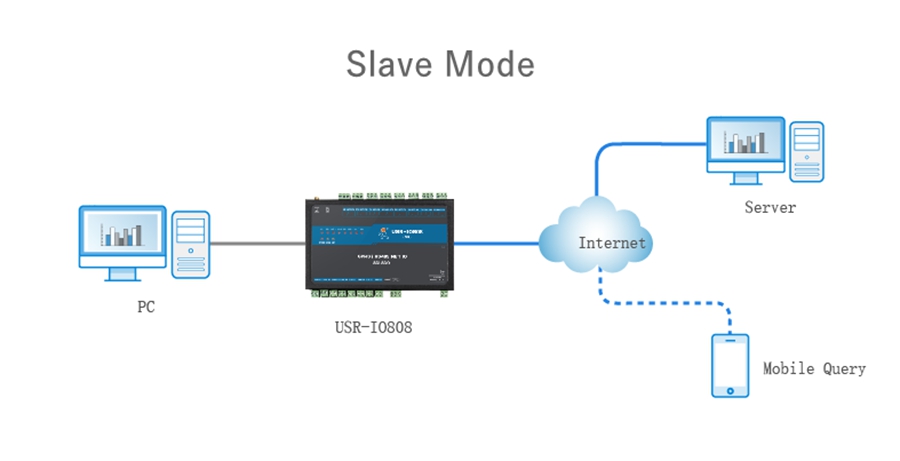

- Slave mode: In this mode, the network IO device is mounted as a slave device under the master device and can also be used by a single device. The device parses and processes the received data. If the target address is a local address, the device responds accordingly. Otherwise, the data is discarded.

Specification:
- Wireless network: support for Mobile 2G/LTE Cat-1; support for Unicom 2G/LTE Cat-1; support for Telecom LTE Cat-1

Technical specification:
- TD-LTE: 3GPP Release 13 CAT1 down 7.5Mbps, up 1Mbps
- FDD-LTE: 3GPP Release 13 CAT1 down 10Mbps, up 5Mbps
- GSM: GPRS Class12 down speed rate 384kbps, up speed rate 128kbps

Standard frequency band:
- TD-LTE: Band 38/39/40/41
- FDD-LTE: Band 1/3/5/8
- GSM: Band 3/8

Transmission power:
- TD-LTE Band 38/39/40/41: +23dBm (Power class 3)
- FDD-LTE Band 1/3/5/8: +23dBm (Power class 3)
- GSM Band 8: +33dBm (Power class 4)

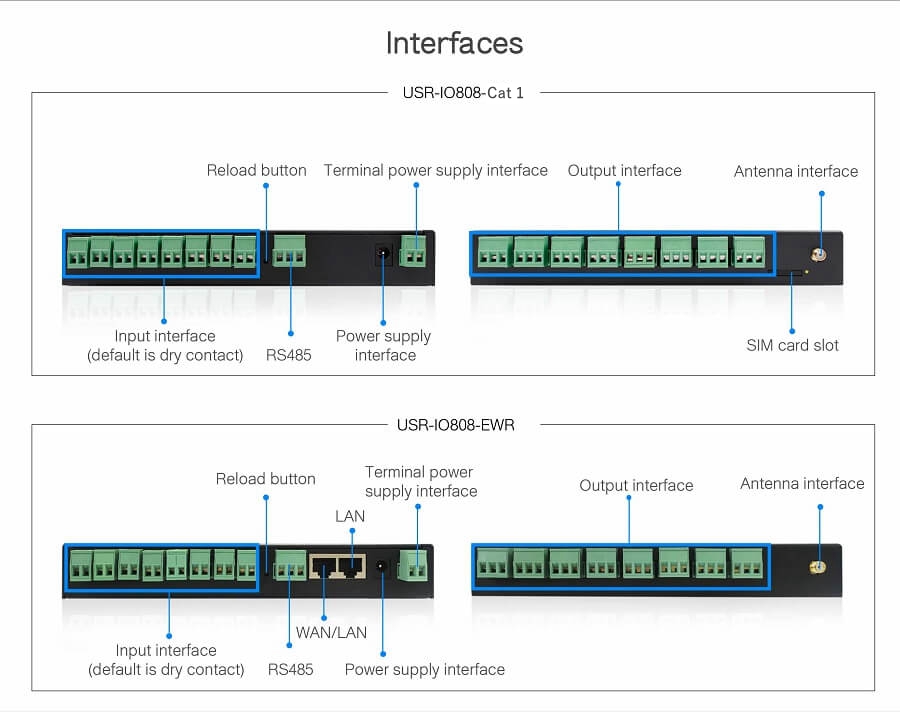

Hardware parameter:
- Data interface: RS485: 300bps - 230400bps
- DI input: wet and dry node compatibility

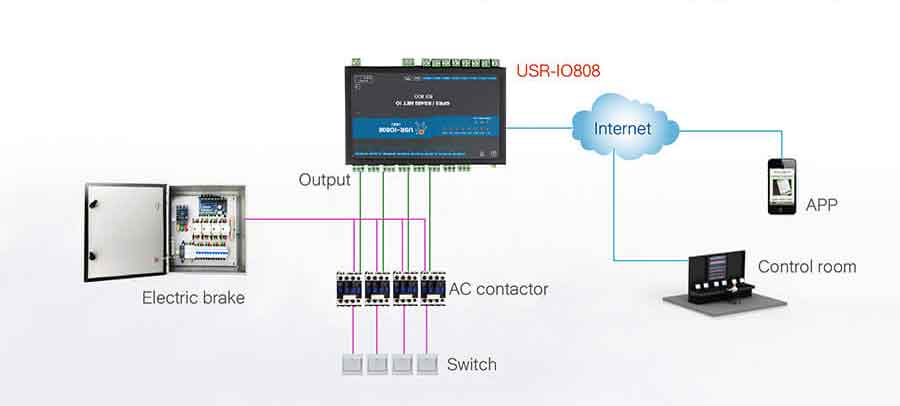

- DO output: AC 277V/10A; DC 30V/10A
- Working voltage: 12V ~ 36V
- Working current: 318mA (aver)/400mA (max) at 12V
- Working temperature: -20 ~ 70℃
- Storage temperature: -40 ~ 85℃
- Working humidity: 5% ~ 95%
- Storage humidity: 1% ~ 95%

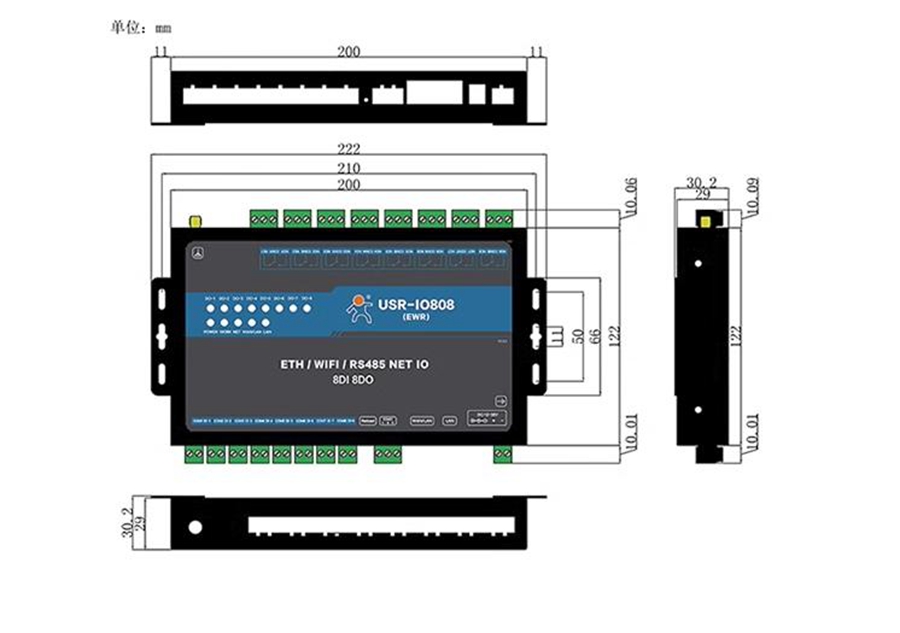

- Size: 200 x 142.7 x 29mm

Software parameter:
- Working mode: master mode, slave mode
- Setting command: for Modbus RTU

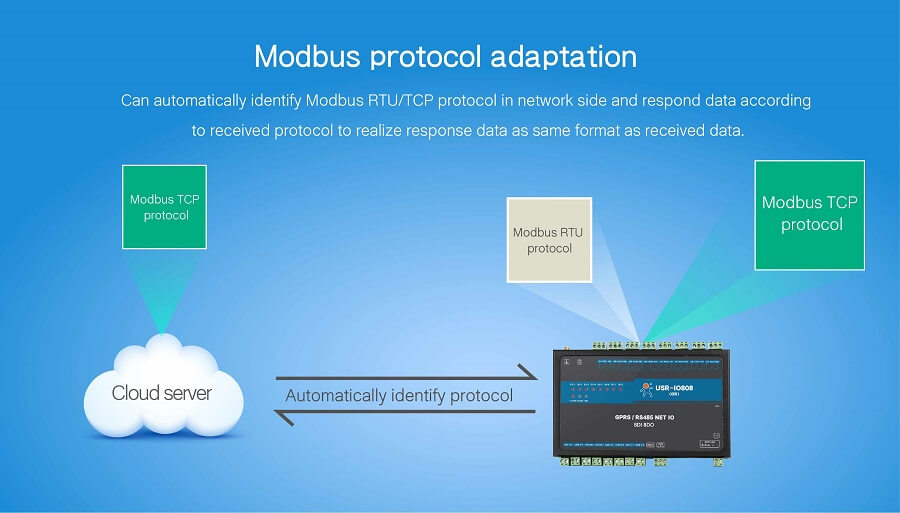

- Network protocol: for Modbus TCP, for Modbus RTU

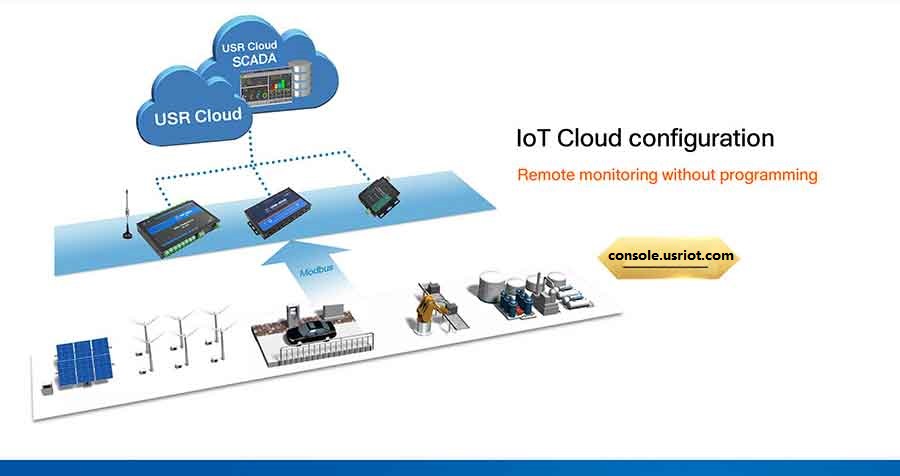

- Customer application software: support configuration software

Software function:
- DNS: support
- Data transmission mode: support TCP client

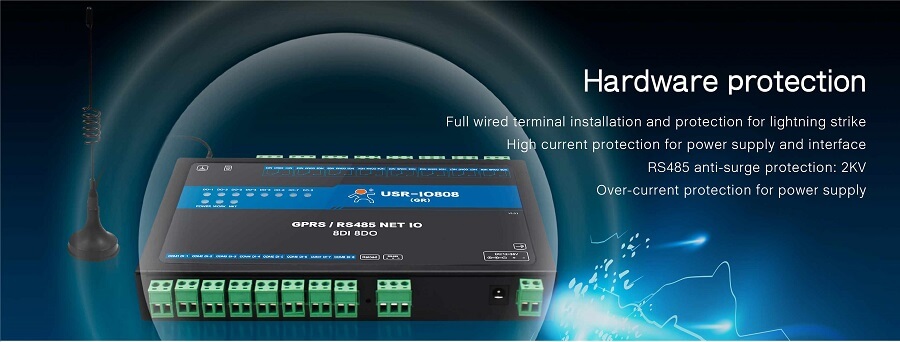

EMC level:
- ESD: IEC61000-4-2, level 4
- Surge: IEC61000-4-5, level 3
- Group pulse: IEC61000-4-4, level 3

Package Included:
- 1 x IO Controller
- 1 x 4G Full Frequency Antenna
- 1 x 12V Power Adapter
