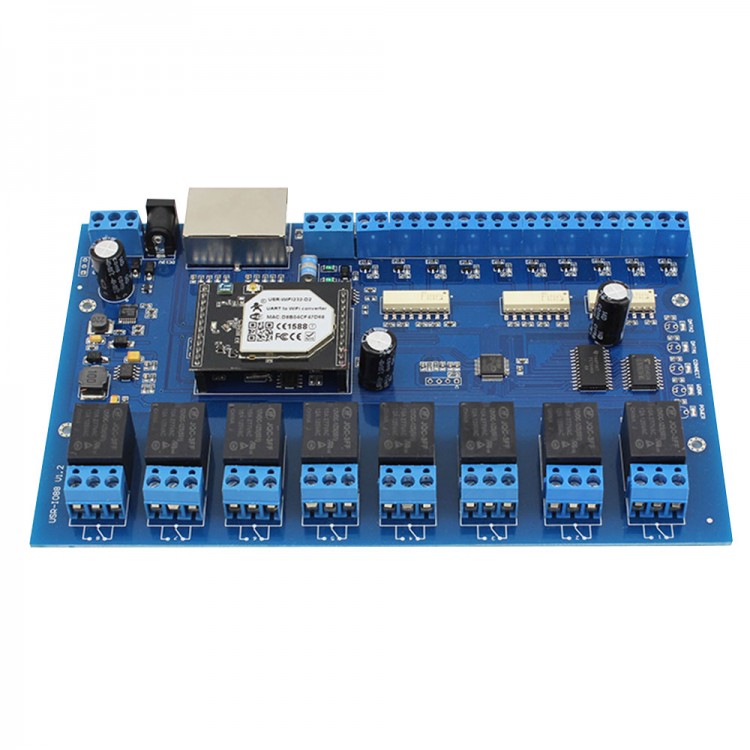

USR-IO88 Wifi Ethernet Controller Network Relay 8CH Input 8CH Output Remote Controller Board

USR-IO88 Wifi Ethernet Controller Network Relay 8CH Input 8CH Output Remote Controller Board

Description:
SR-IO88 is a wifi network relay with 8 inputs and 8 outputs.Users can control devices at any time under three modes of Wifi, direct connection and remote connection.

Features:
- TCP interface, control switch through local area and remote network
- 8 channel relay outputs under the open/close condition at all times
- 8 channel configurable inputs which can report the input state
- Extract RS485 interface. Users can extend device conveniently.
- Double net gapes and support LAN and WAN
- Support the password vertification and realize the safety control of the device
- Each relay access has 6 accesses switch function at certain times.
- Input light-coupled isolation and isolate the interference of the outside
- Output the latch and prevent the relay from the interference
- The controlled software supports 5 platform: Windows, IOS, Android, Webpage, you can choose freely
- Restore the factory setting and return to the original state

Parameter:
- Dimension:190x118x23mm(L*W*H)
- Working Voltage:DC 12V/15~60V
- Power Consumption:12V: Max 7W; 15~60V: MAX 8W
- Operating Temperature:-40~85°C
- Storage Temperature: -40~85°C
- Storage Humidity: 5%~95%RH
- Relay Voltage: 10A 277VAC/28VDC;12A 125VAC

Shipping List
- USR-IO88 *1
