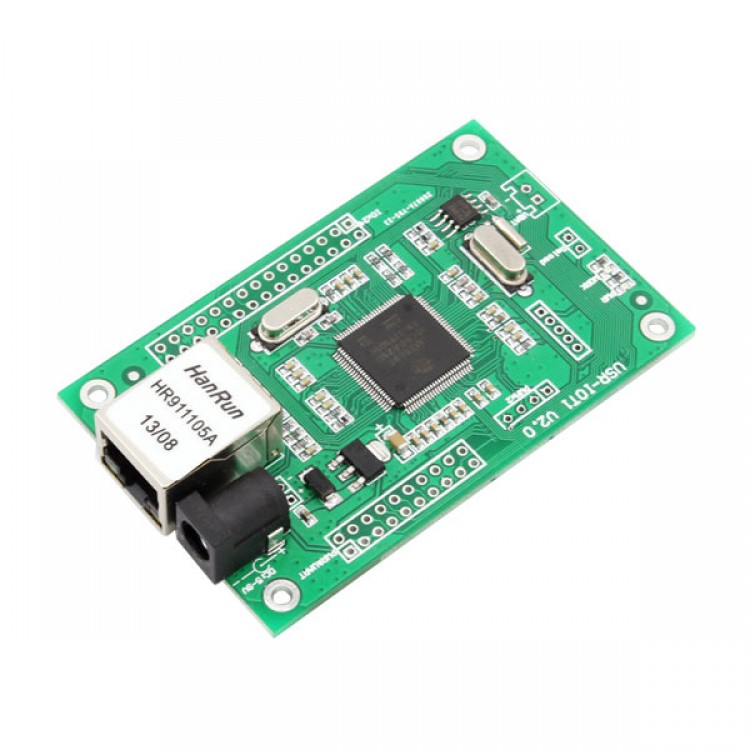

USR-IOT1 Serial Ethernet IO Control Module Support WEB IO PWM Home Automation

USR-IOT1 Serial Ethernet IO Control Module Support WEB IO PWM Home Automation

Description:
- Up to 24 channel configurable IO
- Up to 2 channel PWM
- Support WEB IO/WEB serial port
- Support custom webpage

Character:
- Up to 24 channel configurable IO, 3.3V TTL
- Up to 2 channel PWM
- 2 channel Serial to Ethernet Port, can set COM port and working mode independently
- Built-in webpages with language CN and EN
- Support user-defined webpages
- Support WEB IO
- Support WEB Uart
- Free setup softuare
- Support USR sensor node(USR-WSD, Modbus protocol)
- New CortexM3 kernel, industrial working temperature range, elaborate optimization LWIP protocol stack, stable and reliable.
- Serial port support RTS/CTS hardware flow control.
- Auto-MDI/MIDX function, discretionarily connect cross-over or direct network cable, automatic switching.
- Support TCP Server, TCP Client, UDP, UDP Server, HTTPD Client various of work modes.
- Support virtual serial work way, provide corresponding software.
- Serial port highest baud rate from 110bps to 1024000bps.
- 5V power input
- Support DHCP automatically access IP, can inquire the facility within network through the UDP broadcast protocol.
- Supply the protocol for VIP customers, can integrate parameter seting function to user software applications.
- Provide PC TCP/IP SOCKET programming example, VB, C++, Delphi, Android, IOS.
- Support parameter setting via web pages, can customize web pages for users.
- Can set via UDP, provide the set up protocol and software source demo code.
- Reload pin, pull down when power on ca restore default Settings.
- RJ45 status indicator light, RJ45 interface built-in isolation transformer
- The global only MAC address bought from IEEE, the user can modify MAC address you wanted(in misc web pages).
- Support upgrade firmware via network.
- Support upgrade webpages via network
- Support IP and domain name at the same time
- Support up to 4 link from client when act as TCP Server,send and receive data with or no id.
- Can modify http server port for module built-in web pages.
- Support Keepalive.

Application:
1) Current config and status
2) PORT0 settings: first serial to ethernet
3) PORT1 settings: second serial to ethernet
4) PORT2 settings: the IOT communication channel
5) Web to Serial: receive or send data from webpage
6) Web IO: config and use IO from webpage
7) Miscellaneous settings: including IP or module etc.
