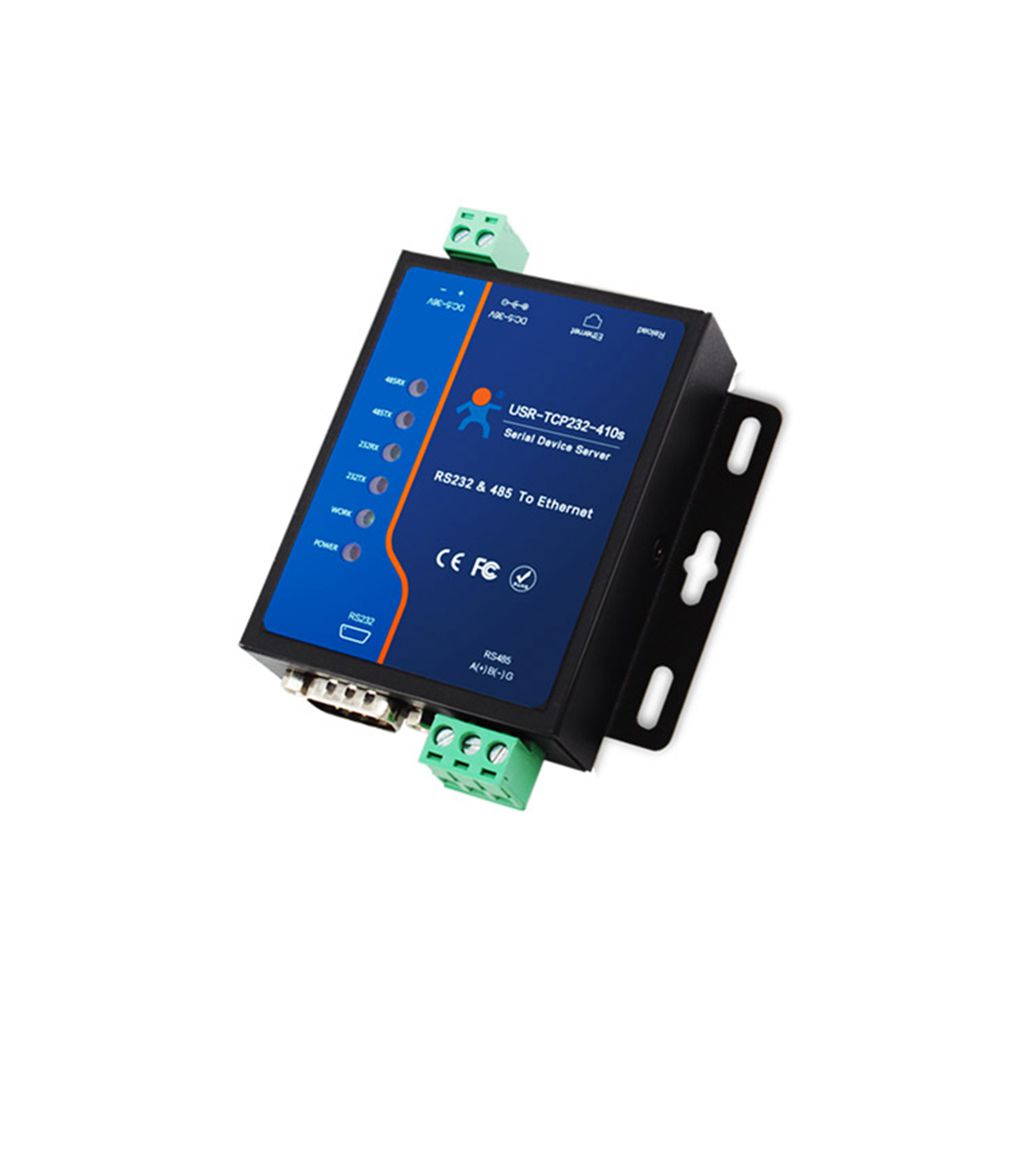

USR-TCP232-410s Modbus Converters support DNS DHCP RS232 RS485 Serial to Ethernet TCP
Description:

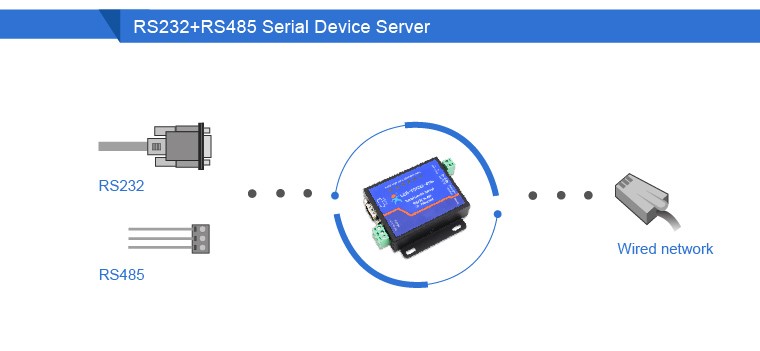

- This is a serial RS485 & RS232 to Ethernet server, used for data transparent transmission. For USR-TCP232-410S is a dual serial server, which supports RS232 & RS485 working at the same time. It is based on Cortex-M4 solution and the internal of the serial server integrates TCP/IP protocol stack. Besides, for USR-TCP232-410S has the function of terminal power supply.
- Registration package + Two-way heartbeat package + Keepalive
When the 410S is used as a TCP client, it automatically sends a predetermined registration packet, which is used by the TCP server to identify this TCP. The network + serial port heartbeat packet + + keepalive actively maintains a heartbeat link with terminal devices and servers to ensure the stable operation of the system.
- Industry Applications
410S and the RS232 / 485 serial port of the electrical fire alarm, quickly transmit the alarm information to the cloud platform to remind the staff to eliminate the fire. And 410S communicates with the serial port lighting equipment through the Internet, which is convenient for lighting control and can also realize the functions of active reporting of equipment faults. 410S provides serial port to network port function, and monitors the working details of water plant equipment in real time through TCP server mode.

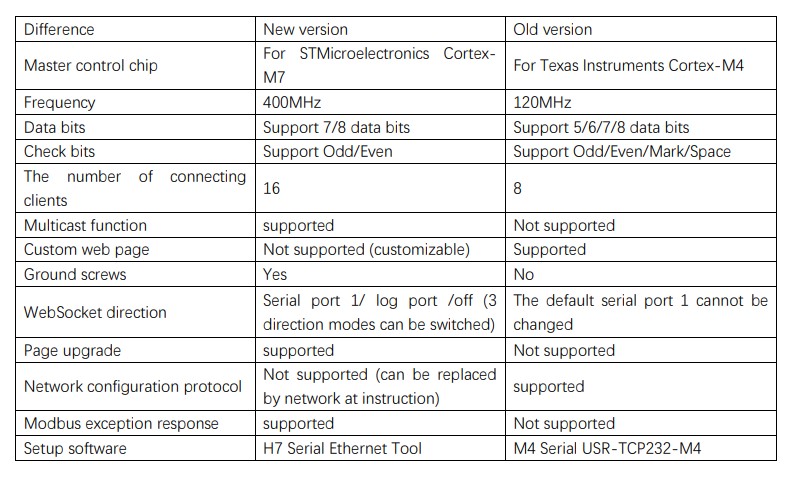

- The ST-scheme is adopted and equipped with Cortex-M7 processor. The main frequency can reach 400Hz. The signal processing is more efficient and reliable. Equipped with optimized TCP / IP protocol stack, the technology is mature, stable and reliable, and the two-way transparent transmission of data can be realized quickly. The product has passed the high and low temperature long-term test of - 40 ~ 85 ℃ and the 7 x 24-hour stability pressure test.
Features:
- TCP Server, TCP Client, UDP, UDP Server and HTTPD Client work mode.
- M7-Kernel
Advantage:
- Virtual serial port
- Network identification, automatic connection.
- Modbus Gateway
- Synchronous baud rate
Package Included:
- 1 x Modbus Converter
- 1 x Network Cables
- 1 x 5V Power Adaptor
- 1 x Male to Female Serial Cable
- 1 x Female to Female Serial Cable
