Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $42.07 | $41.21 | $39.92 | $38.21 | Contact US |

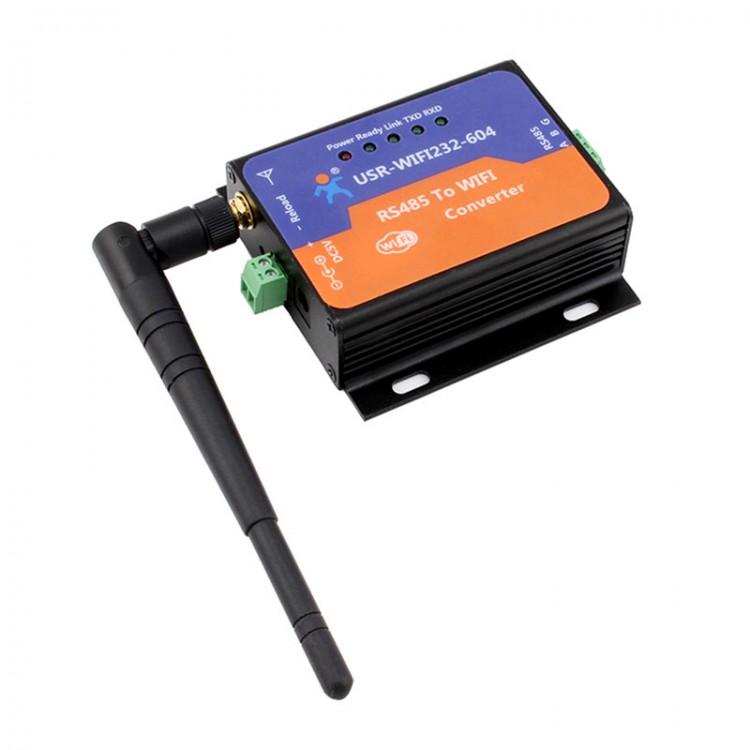

USR-WIFI232-604 Serial RS485 TO WIFI Module Converter 802.11b/g/n
Description:
- WIFI232-604 is work for Transparent transmission,TCP server,TCP client and UDP mode can be choose.
Data from serial to WIFI or WIFI to serial.
- Start time 6s
- Suport TCPB function
- Module as Server, 32 Client can access to it
- Support AP+STA
- Support hardware AP
Features:
- Can be used in project driectly,WIFI232-X module inside
- Standard power supply DC 5~9V input,customized design is accept
- Reload for restore default setting,
(at work status, press it 1 second and then left it free wait restart finish will back to default setting)
- 2.54 RS232 lever TXD TXD GND pin out
- leds for Power Ready Link RXD TXD
- important pin out
- DC5.5*2.1 standard power supply interface
- COM port can link to Power input, for power in or out from COM port
- Power adapter for free
- TCPIP demo VB / DEPHI / Boland C++
- Work for Networking, M2M, bi-directional data transmission
