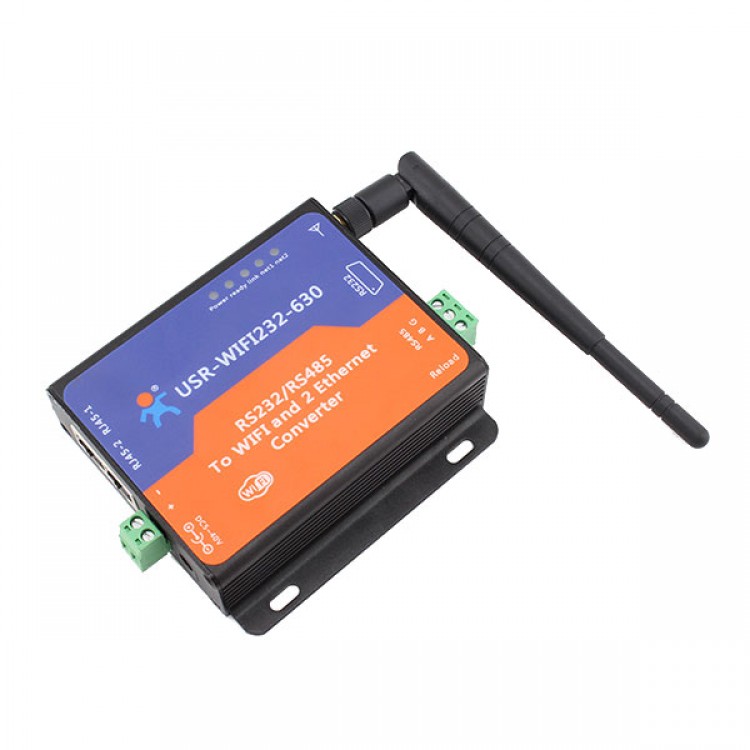

USR-WIFI232-630 Serial RS232/ RS485 to Wifi Server with 2 Channel RJ45

Availability: In stock, usually dispatched in 1 business day

  • Price:$71.07
  • Price in reward points: 711 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $69.65 $68.23 $66.10 $63.25 Contact US
Quantity:

USR-WIFI232-630 Serial RS232/ RS485 to Wifi Server with 2 Channel RJ45

Description:

- USR-WIFI232-630 wifi serial server is a wireless networking server, which is used for project of RS232/RS485 serial equipment to WIFI or Ethernet networking. and It has 2 channel RI45 port.

Unique features:
- Interface: RS232/RS485 With 2*RJ45 ports
- Module as Server, 32 Client can access to it
- Support AP+STA
- Support hardware AP

Characters:
- Inner board core module specifications,please reference to USR-WIFI232-D2
- Support hardware flow control (RTS/CTS) RS232 interface, male mouth(needle) consistent with computer pin definition
- RS232/RS485 automatic switching
- RJ45 network connection, support wired Ethernet transmission
- Reload button, do not worry incorrect settings(in working status, press the button 3s then it load to default settings and automatic restart)
- Rich status indicator light: Power/Ready/Link/NET1/NET2
- Pin 9 of the DB9 can be connected to power input (solder jumper on the back of PCB), used for power the sensor or the serial port cable power Convert Server.
- Design with positioning hole, convenient installation
- Highest support baud rate 460800 bps
- optional TCP Server/TCP Client/UDP Client/ UDP Server mode, the TCP Server mode can support up to 32 Client connection
