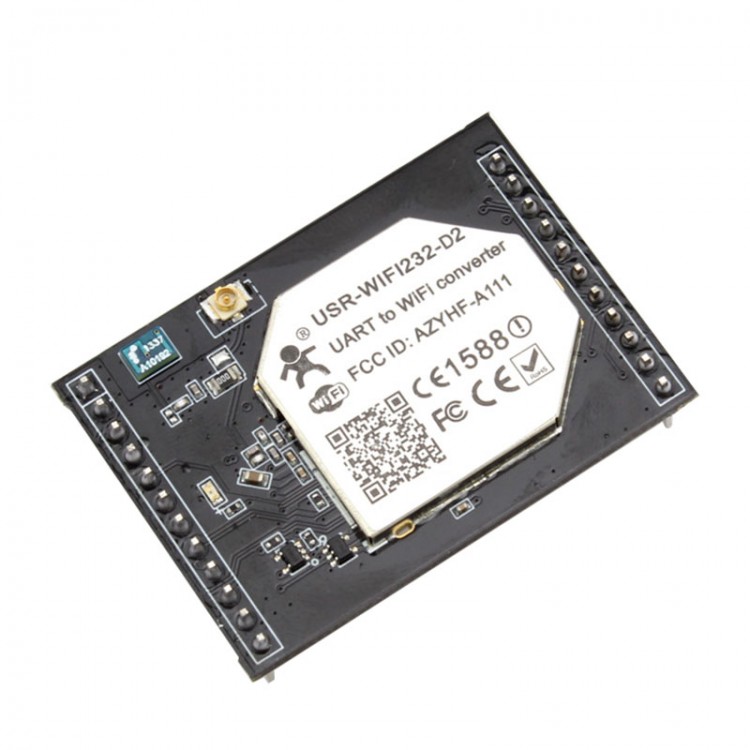

USR-WIFI232-D2 Serial UART to Wifi Module Serial to Wireless Module
Description:
- USR-WIFI232-D2 module is an integration of 802.11 b/g/n wi-fi module.It has the following applications:data transparent transmission;wireless router application; wifi relay amplification application. And it support the following functions: serial to wifi and LAN simultaneously;realize LAN to WIFI or LAN to LAN transmission;realize wifi bridging and amplify wifi signal range.WIFI-D2 module has been widely applied in various fields.
Function features
- Support IEEE802.11b/g/n Wireless Standards
- Support TCP/IP/UDP Network Protocols
- Support UART Data Interface
- Support Work As STA/AP/AP+STA Mode
- Support Router/Bridge Mode Networking
- Support External/Internal Antenna
- Support Transparent Transmission Mode
- Support AT+ Instruction Set for Configuration
- Support Friendly Web Configuration Page
- Support Palmodic Signal
- Support UART Auto-Frame Function
- Single +3.3V Power Supply
- Small Size: 32 x 45x8 mm
- FCC/CE Certificated
- Support setup software and customized services
- Support customized configuration of factory parameters
Specification:
| Class | Item | Parameters |
| Wireless Parameters | Certification | FCC/CE |
| Wireless standard | 802.11 b/g/n | |
| Frequency range | 2.412GHz-2.484GHz | |
| Transmit Power | 802.11b: +20 dBm (Max.) | |
| 802.11g: +18 dBm (Max.) | ||
| 802.11n: +15 dBm (Max.) | ||
| Configurable | ||
| Receiver Sensitivity | 802.11b: -89 dBm | |
| 802.11g: -81dBm | ||
| 802.11n: -71dBm | ||
| Antenna Option | External:I-PEX Connector | |
| Internal:On-board chip antenna | ||
| Hardware Parameters | Data Interface | UART: 1200bps - 230400bps |
| Operating Voltage | 3.3V (+/-5%) | |
| Operating Current | 170mA~300mA | |
| Operating Temperature | -25°C- 85°C | |
| Storage Temperature | -40°C- 125°C | |
| Dimensions and Size | 32×45×8mm | |
| Software Parameters | Network Type | Station /AP mode/STA+AP |
| Security Mechanisms | WEP/WAP-PSK/WAP2-PSK/WAPI | |
| Encryption | WEP64/WEP128/TKIP/AES | |
| Work Mode | Transparent Transmission | |
| Serial command | AT+instruction set | |
| Network Protocol | TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP | |
| Max. TCP Connection | 32 | |
| User Configuration | Web Server+AT command config. | |
| Application Software | Client can customize software |
