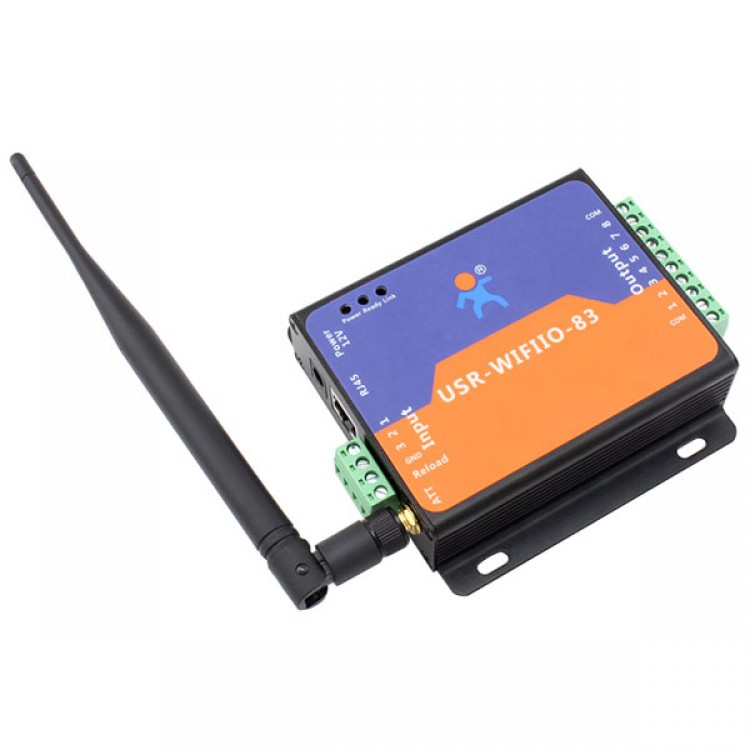

USR-WIFIIO-83 8 Output Wifi Remote Control Relay DC 12V Power Supply
Description:
- IOT series is designed and developed for terminal equipment in the field of smart home, Internet of Things, etc. Matched with our Windows/IOS/Android/MAC platform software and our back end server, an ideal choice to realize Internet of Things.
- This series product is suitable for family use to build smart home for more comfortable life. Also it can be used in industry, and agriculture for low production cost, high efficiency by fulfilling the intelligence of the production control. Then, users will own more effective cost control and more strong profitability.
- Control switches remotely!
- New version, 8 channel output, 3 channel input
- Single channel max working current up tp 10A
- Supply app based on Android Iphone Windows and MAC
- Support timing function
Electric parameter:
- Size: (L*W*H) 104.5*83*28.7mm
- Input voltage: DC 12V
- Channel: 8 channel output, 3 channels input
- Standby consumption: 3W/max: 6w
- Input way: Passive switch input
- Output max voltage/current: AC 250V/10A
- Working temperature: -25-75 C degree
- Storage temperature: -40-85 C degree
- Storage Relative Humidity: 5%-95%RH
Packing list:
- USR-WIFIIO-83 relay board device*1
- 12 v power adapter
