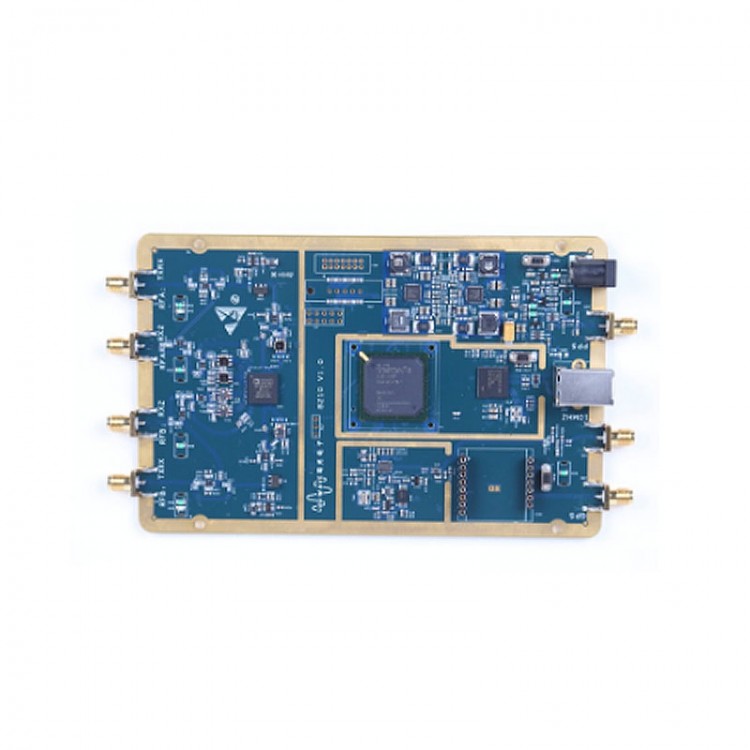

USRP-LW B210 RF Transceiver Module SDR Module Software Defined Radio Compatible with USRP B210
Description:
USRP-LW B210 is designed with RF front-end integrated in AD9361. AD9361 supports direct up-conversion and down-conversion of the RF side to provide real-time bandwidth of 56MHz. The two-way signal chain of AD9361 provides coherent MIMO capability. The host implements processing and control of signals in AD9361 through a series of operations on XC6SLX150 FPGA via USB 3.0. It provides up to 61.44MS/s throughput and is connected to PC using UHD's API to provide real-time bandwidth up to 56M.
Features:
- Highly integrated, two-channel for receiving and transmitting, with RF range of 70 MHz to 6 GHz
- Support for high speed USB 3.0 connectivity
- Open source UHD supports multiple frameworks
- User-programmable XC6SLX150FPGA for Spartan 6, a fully integrated mixed-signal baseband direct conversion transceiver that provides bandwidth up to 56MHz
Low Cost Software Radio Device:
USRP-LW B210 can be used for a wide range of applications, including radio, mobile phones, GPS, WiFi, ISMFM and TV signals. It supports for GNU Radio to quickly develop some radios, or participate in some open source software radio projects. Based on UHD support, users can reuse existing designs on different USRP devices. For example, multiple USRP-LW devices are suitable for HDSDR and OpenBTS open source applications.
Package Included:
- 1 x USRP-LW B210
- 1 x USB 3.0 Cable
- 1 x Power Adapter
