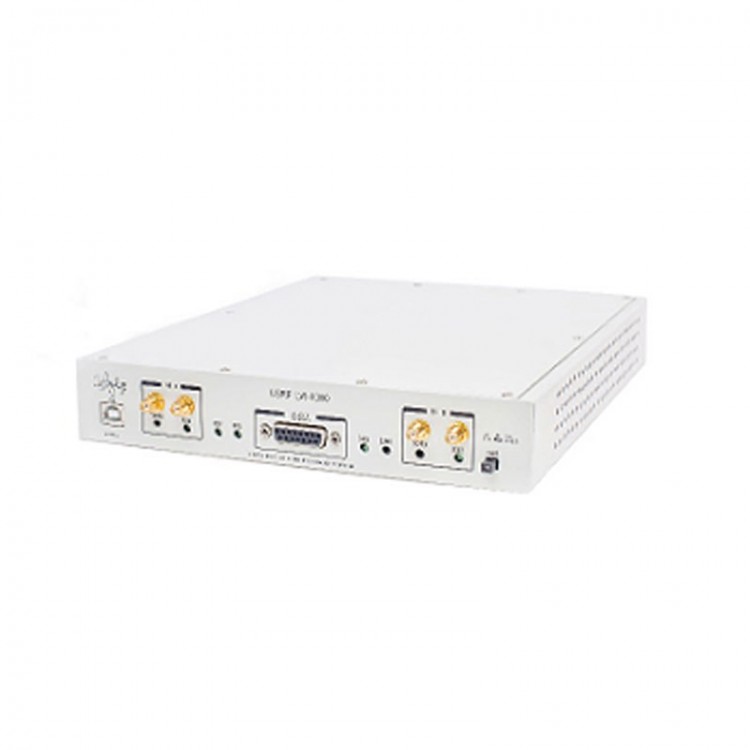

USRP-LW X300 Software Defined Radio Device SDR Platform Compatible with USRP X300

USRP-LW X300 Software Defined Radio Device SDR Platform Compatible with USRP X300

Description:

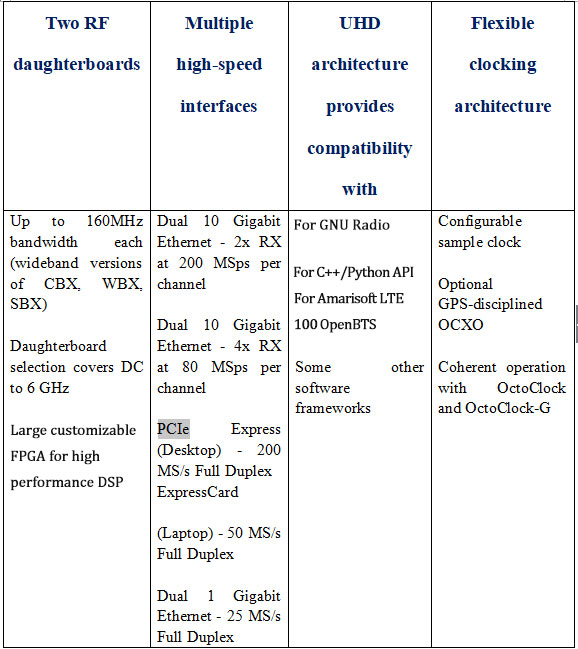

USRP-LW X300 is a high-performance, scalable software defined radio (SDR) platform for designing and deploying next generation wireless communications systems. The hardware architecture combines two extended-bandwidth daughterboard slots covering DC-6 GHz with up to 160 MHz of baseband bandwidth, multiple high-speed interface options (PCIe, dual 10 GigE, dual 1 GigE), and a large user-programmable FPGA in a convenient desktop or rack-mountable half-wide 1U form factor. In addition to providing best-in-class hardware performance, the open source software architecture of X300 provides cross-platform UHD driver support making it compatible with a large number of supported development frameworks, reference architectures, and open source projects.

Features:

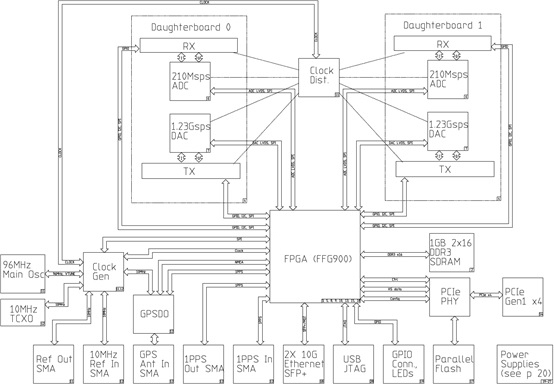

Schematic Diagram:

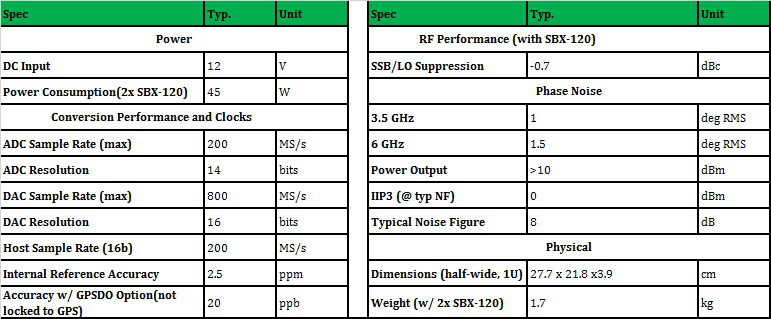

Detailed Performance:


High-performance FPGA:
As the digital processing core of the X300, XC7K325T FPGA provides high-speed connectivity between all major components. Includes RF front end, host interface and DDR3 memory. The default FPGA provides all UHD for digital down conversion and digital up conversion, fine frequency tuning, and some other DSP function blocks. Users can take advantage of the rich space of the resource-rich FPGA, plus the development framework supported by USRP, and open source projects to implement their own DSP processing modules.

Multiple High-Speed Interface Options:
The X300 offers a variety of high speed interfaces to choose from. On the panel of the box, Gigabit Ethernet port is the easiest way to interface. For applications that extend bandwidth and low latency, such as PHY/MAC research, PCIe x4 provides an efficient bus for this deterministic operation. When the application uses network recording or multi-node processing, the 10G port is the best choice.

Additional --GPSDO, GPIO, 1 GB DDR3:
The X300 includes many additional features that will help with some other wireless applications. For example, in FPGA design, 1GB DDR3 on the motherboard can be used as data buffer and data storage. The optional internal GPSDO provides high-precision frequency reference when synchronized to the GPS system, and global timing alignment within 50ns. The external GPIO interface allows user-controlled external components such as amplifiers and switches to accept input event triggers and observe debug signals. USRP-LW X300 also includes an internal JTAG adapter that allows FPGA developers to easily load and debug new FPGA images.

System & Development Environment:
- For Windows and Linux operating systems. Software development environment supports for GNU Radio, Matlab, Lab View. Open source LTE project fits for OpenAirInterface and OpenLTE.

Package Included:
- 1 x USRP-LW X300
- 1 x Cable
- 1 x SFP+Gigabit Adapter
- 1 x Power Supply
- 4 x SMA Cables

Recommended Daughterboards:
1. 120M: WBX-120, SBX-120, CBX-120
2. 160M: UBX-160

Compatible Accessories:
- GPSDO, GPIO, 10Gb Network card, PCIe Adapter
