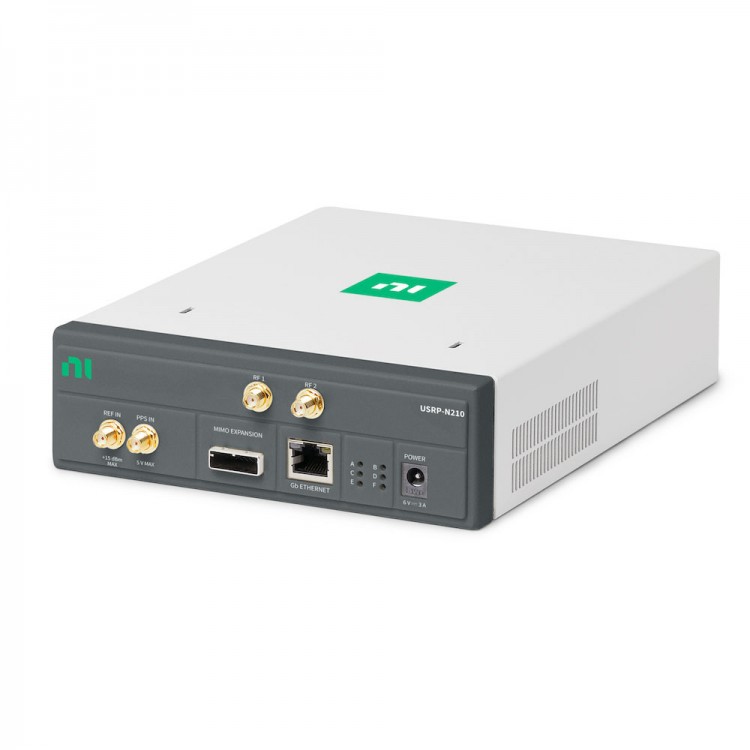

USRP N210 Kit (USRP N210 SDR + 2 RF Cables + Ethernet Cable + Power) w/ DSP 3400 FPGA for Spartan 3A

USRP N210 Kit (USRP N210 SDR + 2 RF Cables + Ethernet Cable + Power) w/ DSP 3400 FPGA for Spartan 3A

Overview:

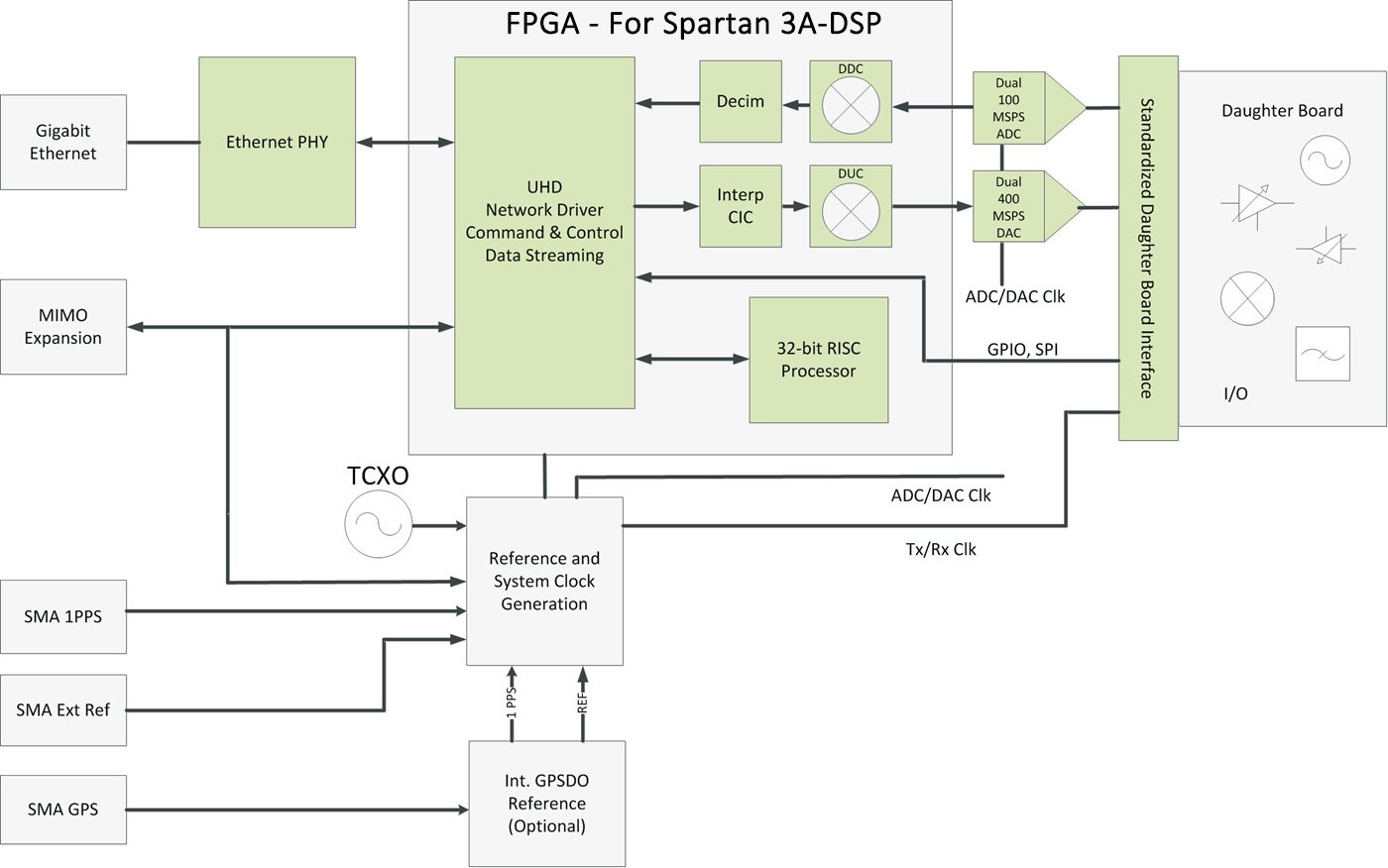

The USRP N210 provides high-bandwidth, high-dynamic range processing capability. The USRP N210 is intended for demanding communications applications requiring this type of rapid development. The product architecture includes a DSP 3400 FPGA for Spartan 3A, 100 MS/s dual ADC, 400 MS/s dual DAC and Gigabit Ethernet connectivity to stream data to and from host processors. A modular design allows the USRP N210 to operate from DC to 6 GHz, while an expansion port allows multiple USRP N210 series devices to be synchronized and used in a MIMO configuration. An optional GPSDO module can also be used to discipline the USRP N210 reference clock to within 0.01 ppm of the worldwide GPS standard. The USRP N210 can stream up to 50 MS/s to and from host applications. Users can implement custom functions in the FPGA fabric, or in the on-board 32-bit RISC softcore. The USRP N210 provides a larger FPGA than the USRP N200 for applications demanding additional logic, memory and DSP resources. The FPGA also offers the potential to process up to 100 MS/s in both the transmit and receive directions. The FPGA firmware can be reloaded through the Gigabit Ethernet interface.

Package Included:
• 1 x USRP N210
• 1 x Gigabit Ethernet Cable
• 1 x Power Supply
• 2 x SMA-Bulkhead RF Cables

Packaging Details:
• Weight: 1kg

Note:
• It is an original version.
