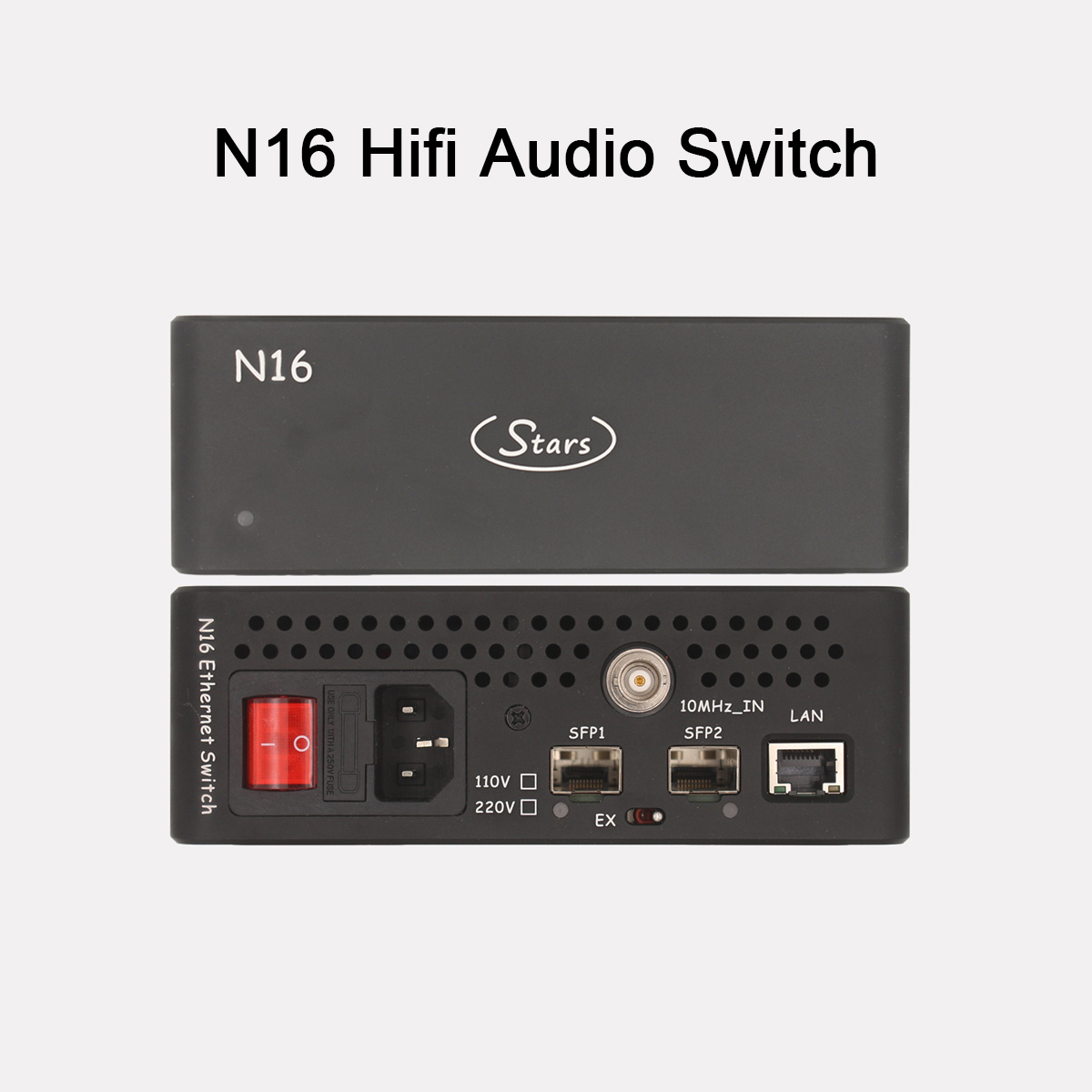

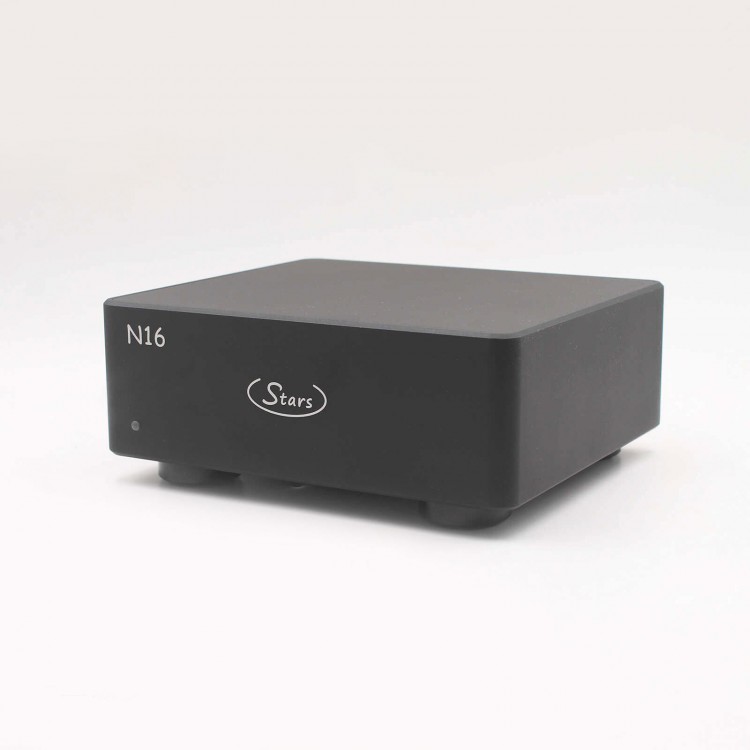

Ustars Audio N16 Ethernet Switch 3 Port Switch Hifi Audio Switch Supports External 10MHz Clock

Ustars Audio N16 Ethernet Switch 3 Port Switch Hifi Audio Switch Supports External 10MHz Clock

Features:
N16 Hifi Audio Switch
* Femtosecond clock
* Built-in OCXO
* External 10MHz clock can be connected
* 4-layer PCB substrate design
* SFP photoelectric conversion isolation
* Multi-stage pure optical series implementation
* LT3042 + PNP voltage regulator
* Multiple low noise voltage regulators

Precise Base Time
* The N16 has a built-in audiophile-grade OCXO that provides accurate clock signals for the entire switch. Through the intervention of the 10M clock signal, the clarity and transparency of the sound have been greatly improved, and the sound field is wide and the positioning is accurate.

Femtosecond Clock
* N16 Ethernet switch has a SI5340 professional-grade clock synthesizer. Its output jitter is as low as 90fs in the femtosecond order, providing a high-quality clock signal for the whole machine. The clock performance is far better than that of other switches using PS-level ordinary clock chips.

Supports External 10MHz Clock

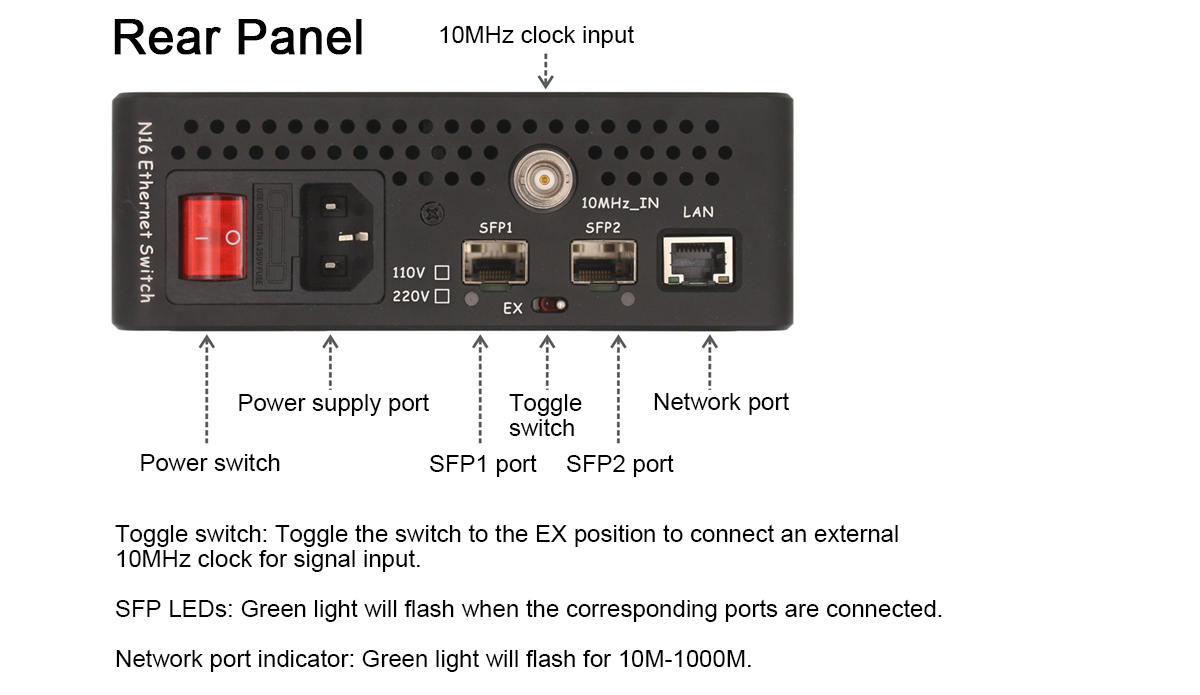

* The Hifi audio switch provides a single clock input for easy connection to your high-quality synchronous clock to boost machine performance. When the toggle switch is moved to the EX position, the N16 will be connected to an external input clock, and its built-in OCXO will power off to reduce interference.

High-Quality Components
* Imported network transformer
* High-performance switch chips
* Built-in OCXO
* SI5340 femtosecond clock
* Low-noise secondary voltage regulator
* Original Hifi filter capacitors for Nichicon
* EMI AC filtering
* SFP interfaces are powered independently
* 25W sealed transformer
* Polymer tantalum capacitors

Specifications:
Interfaces:
* 1 x 10M/100M/1000M adaptive Ethernet interface
* 2 x SFP interfaces/1000M (SFP interfaces are suitable for 1.25GSFP fiber module and RJ45 expansion. The module is not included in the package)
* 1 x 10MHz BNC input interface (input impedance is 50R. It supports most 0.5-3.3Vpp level sine wave or square wave)

Power Consumption of the Whole Machine:
* Power consumption: <12W

Size and Weight:
* Dimensions (excluding the sizes of protrusions): 160mm x 140mm x 55mm/6.3" x 5.5" x 2.2" (WxDxH)
* Net weight: about 1.6Kg/3.5lb

Package Included:
* 1 x N16 switch
* 1 x Power cable

Packaging Details:
* Packaging size: 250mm x 250mm x 125mm (WxDxH)
* Weight: 2.25kg

Note:
* Since N16 is powered by a linear power supply, the heat generation is relatively large during operation. Please place the machine in an open and ventilated environment.
