Ustars Audio UTX_A 384KHz IIS to Coaxial Board with Cables & Output Terminal for Raspberry Pi

Ustars Audio UTX_A 384KHz IIS to Coaxial Board with Cables & Output Terminal for Raspberry Pi

Description:
UTX_A IIS to coaxial board is suitable for some machines, Bluetooth modules, USB modules, Raspberry Pi, car audio head units and other occasions that need to change IIS to coaxial output.

The small size of the board makes it easy to install inside your machine.

This board is different from the common WM8804/WM8805 IIS to coaxial solution. It uses a more advanced and enthusiastic, professional-grade SPDIF digital synthesis solution that supports up to a high-spec PCM 384KHz coaxial output. There is a source synchronous clock, which avoids cold and thin sound caused by using PLL to generate the clock. In addition, it also has a high resolution, a sense of speed and transparency, three-frequency balance, a stronger analog flavor, and a mellow and sweet vocal. It's very good value for money.

Specifications:
Input:
- 1 x IIS input (format for Philips)
* Regular 3-wire mode, no MCLK input required
*BCLK is 64FS (e.g. 44.1KHz sampling frequency, BCLK: 2.822MHz)

Output:
- PCM 44.1KHz~384KHz/24Bit

Power Supply:
- Recommended power supply voltage: DC regulated +5V~+9V
- Operating current: <60MA

Size:
- Board (without the sizes of protrusions): 43mm x 28mm/1.7" x 1.1" (LxW)

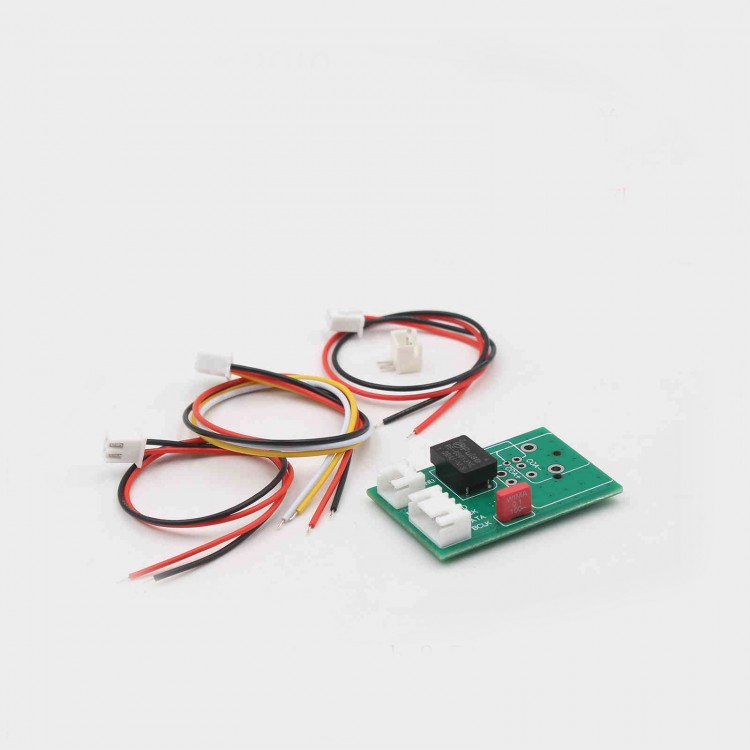

Package Included:
- 1 x IIS to coaxial board
- 1 x 2.54_4P FFC cable
- 2 x 2.54_2 FFC cables
- 1 x 2.54_2 bent connector

Attention:
- Certain hands-on ability and basic knowledge are highly recommended to install and use the product.
- The board does not have screw holes.Please fix the board by yourself.
- A output terminal needs to be soldered and installed by yourself.

Packaging Details:
- Weight: 0.18kg
