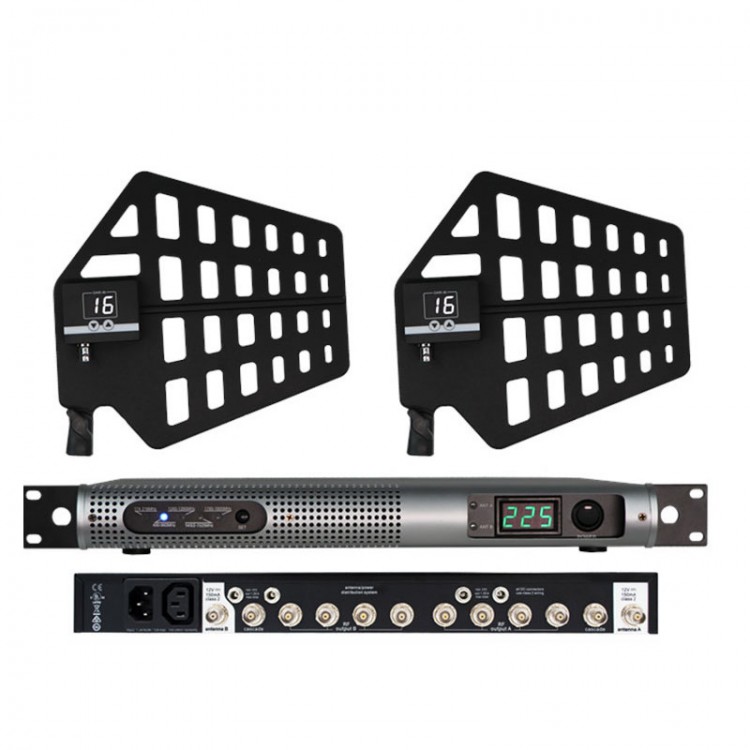

UT-876J Wireless Microphone Signal Amplifier with Waterproof Antenna Five Channel Signal Splitter Amplifier
Description:
- UT-876J is a broadband, dual-channel 1 to 5 antenna distribution system with low internal modulation distortion. The stable functional characteristics, combined with the exquisite appearance design, are fully applicable to the operation of UHF high-bandwidth wireless systems, and support the application of 2-5 wireless systems or other wireless systems.
Features:
- It has low noise signal amplification function and provides signal enhancement function.
- It can be used with wireless receiver and antenna distribution system.
- Lightweight and flexible appearance and structure, convenient for carrying, erection and installation.
Installation:

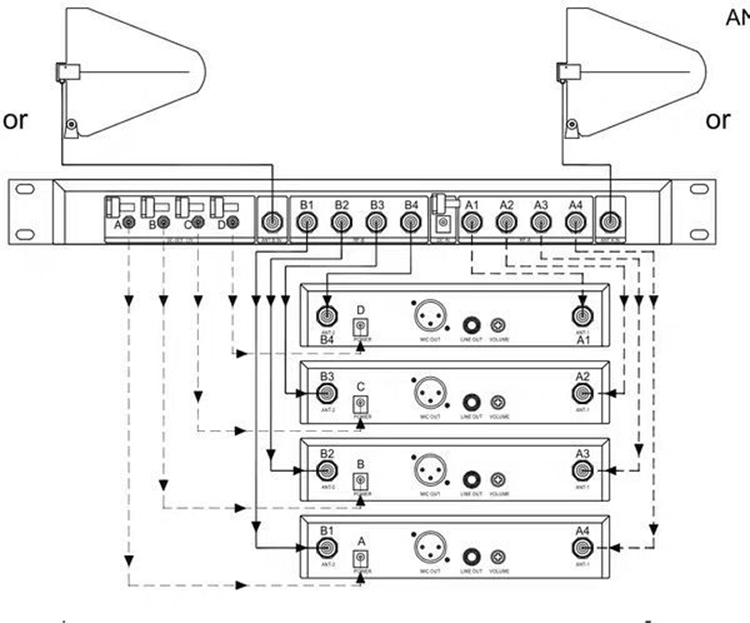

- Any 50 ohm low-loss coaxial cable can be used to connect the antenna to the receiver or antenna distribution system.
- It can only be used for receivers and antenna distribution systems with antenna power supply function.
- The antenna shall be aligned with the area covered.
Antenna placement use: (When fixing the antenna, pay attention to the following)
- The antenna and receiver must use the same frequency band.
- The antennas shall be fixed at a distance of at least 1.5 meters from each other.
- Keep the antenna away from interference sources (such as large metal objects).
- Adjust the antenna position to avoid any obstacles between the antenna and the transmitter.
Antenna Specification:
- Frequency range: 480-950MHz
- Directionality: cardioid
- Polarization mode: linear
- Gain: - 16 ~ 16dB (manual step 1dB)
- Standing wave ratio: < 2
- Low noise of amplifier: < 0.6dB
- Amplifier OIP3: > 38dBm
- External power supply: 6-12DCV
- Current: 150mA
- Connector port: BNC connector
Host Specification:
- Frequency range: 450MHz - 950MHz (The positive and negative deviation is not more than 10%)
- Total gain: 0dB, ±1dB
- Input/output impedance: 50ohm
- Isolation degree: > 25dB
- Connector port: BNC
- Antenna power supply: +12V DC/200mA (The center point is positive.)
- DC output: 12V DC/1A (MAX) x 4 group (The center point is positive.)
- Power supply: 100--240V AC, 50/60Hz 36W
Package Included:
- 1 x Host
- 2 x Antenna
