| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $402.48 | $394.26 | $381.94 | $365.51 | Contact US |

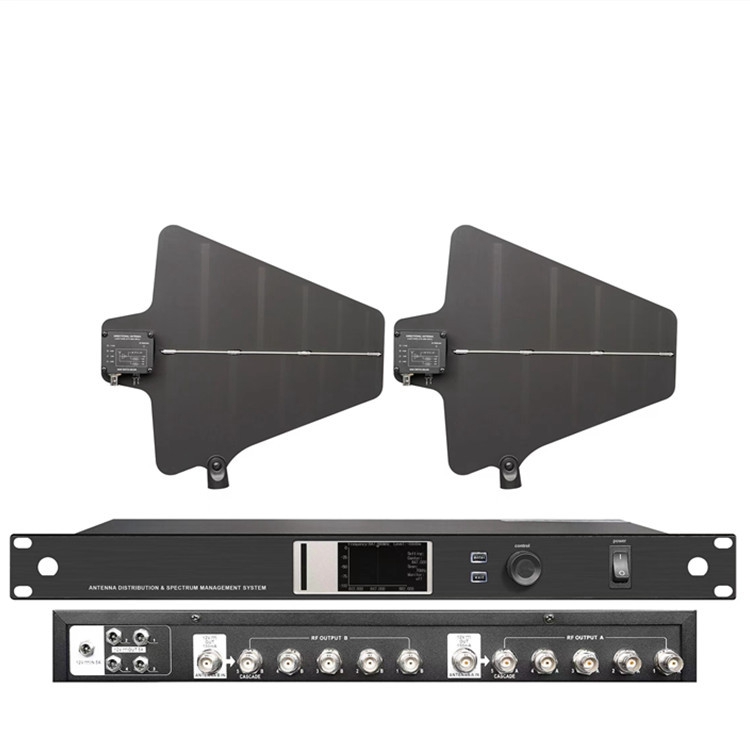

UT-877 High Performance Wireless Microphone Signal Amplifier Five Channel Signal Strengthening Devices
Host specification:
- Frequency range: 500MHz - 950MHz
- Gain: 5dB, 10dB, 15dB, 20dB(±2dB)
- Frequency scanning range: 500MHz - 950MHz
- Frequency scanning bands: 18
- Input/output impedance: 50ohm
- Connector port: BNC
- Antenna power supply: +12V DC/150mA (The center point is positive.)
- DC output: 12V DC/3A (MAX) x 4 group (The center point is positive.)
- Power supply: 100--240V AC, 50/60Hz, 12V DC/3A

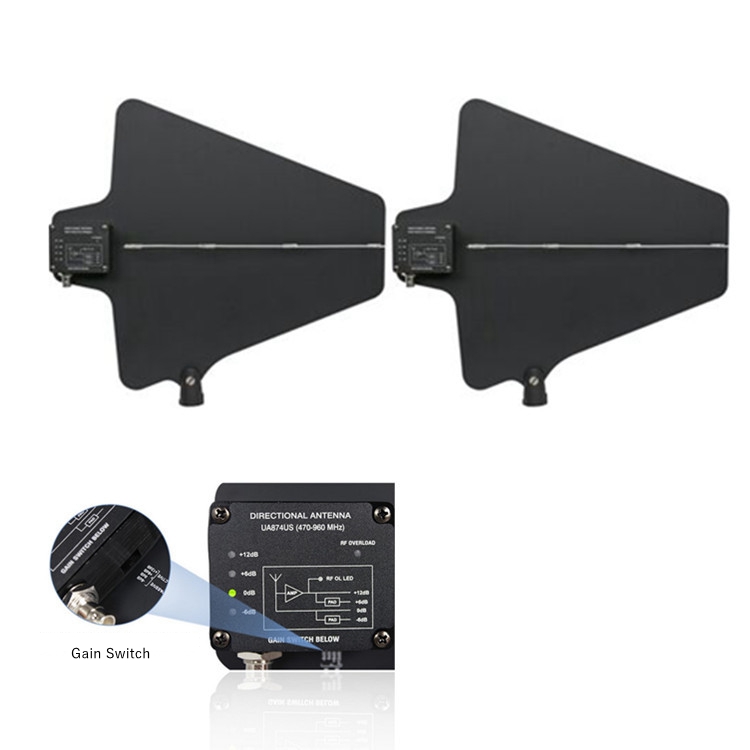

Antenna specification:
- Standing-wave ratio: ≤2.0
- Frequency range: 470-980
- Wavelength: 1/4
- Gain: 3 levels adjustable, 0dB, 3dB, 12dB
- Impedance: 50
- Polarization mode: Vertical polarization and horizontal polarization
- Connector mode: BNC connectors
- Power supply mode: +12V DC/150mA
Package Included:
- 1 x Host
- 2 x Antenna
