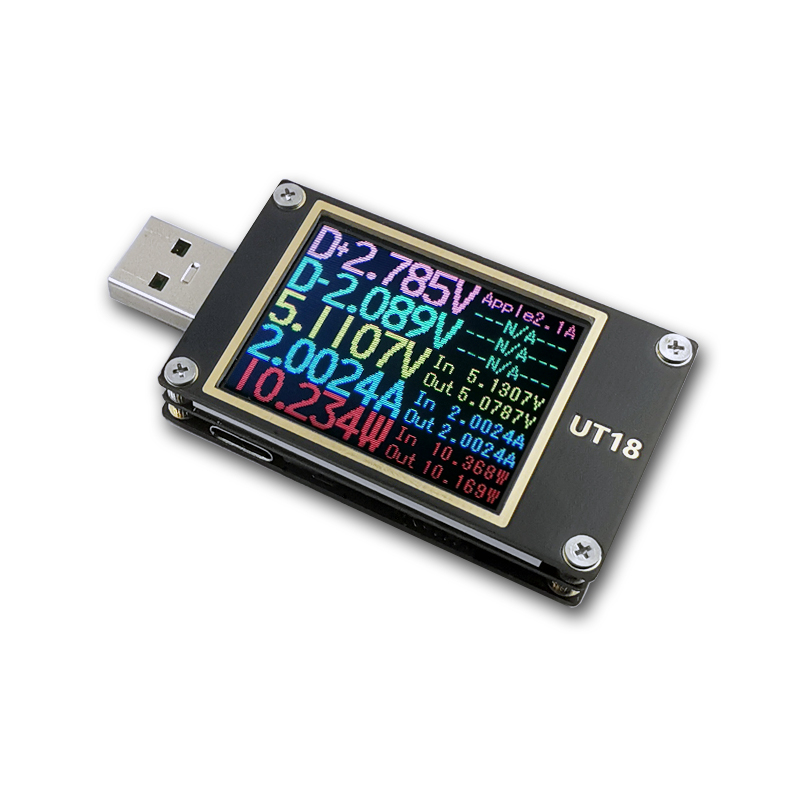

UT18 USB Tester Meter USB Voltage Current Meter Voltmeter Ammeter Charger Detector For QC4+PD3.0 PPS

UT18 USB Tester Meter USB Voltage Current Meter Voltmeter Ammeter Charger Detector For QC4+PD3.0 PPS

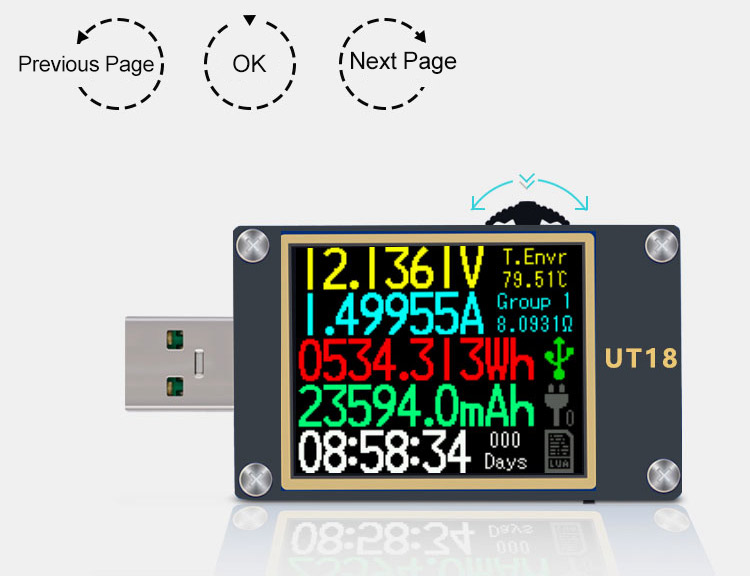

Features:

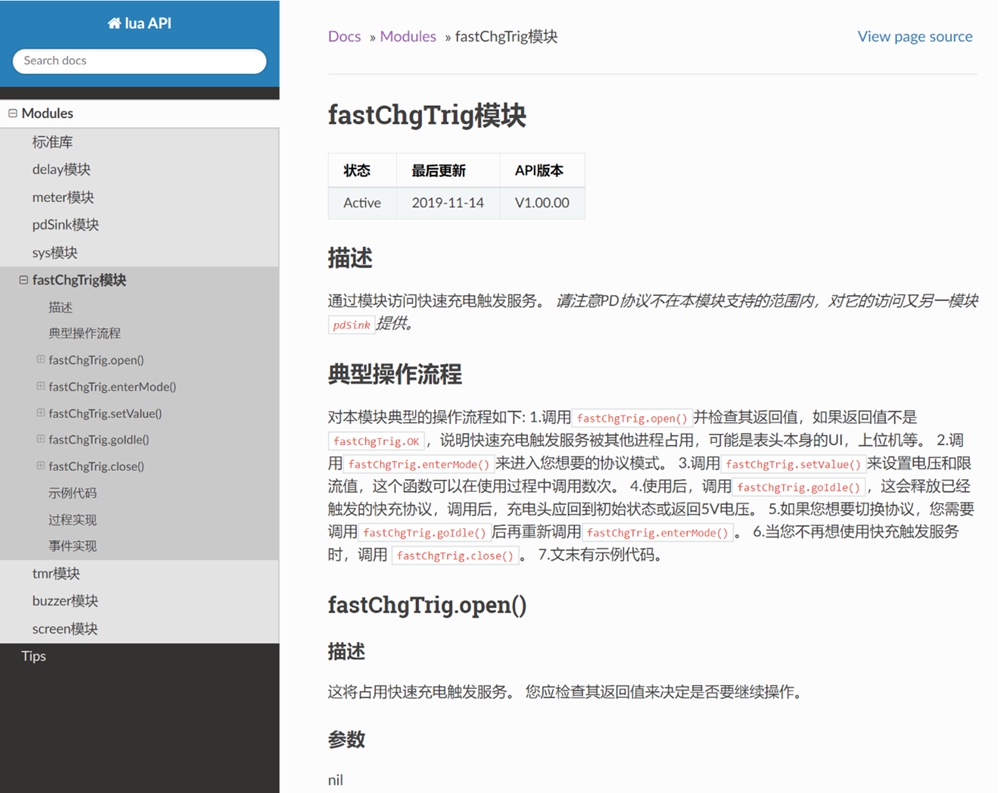

1. Material for lua API is provided, user independent programming, convenient for batch testing.
2. Support expansion modules (currently only one load module SM-LD-00, other modules with rich functions are under development).
3. A more powerful host computer.
4. Internal 12MB user storage space for storing user programs (user programs can also write files to this space), offline recording.
5. VBUS ripple can be viewed through 3.2Msps ADC.
6. Larger screen (2.6", 128*160).
7. (Super)VOOC/DASH special identification line is straight through, and can be directly measured without additional leads.
8. Added buzzer for better user experience.
9. Added a gravity sensor to automatically turn the screen.
10. Full font support, user programs can directly display Chinese, Japanese and Korean strings.
11. (Super) VOOC/DASH cable reading and identification.

Package Included:
- 1 x Set of USB Voltmeter Ammeter

Note:
- Other items pictured are not included, for demonstration purposes only.
- After receiving the product, please scan the QR code on the package box to download PC APP and host manual, PC software manual.

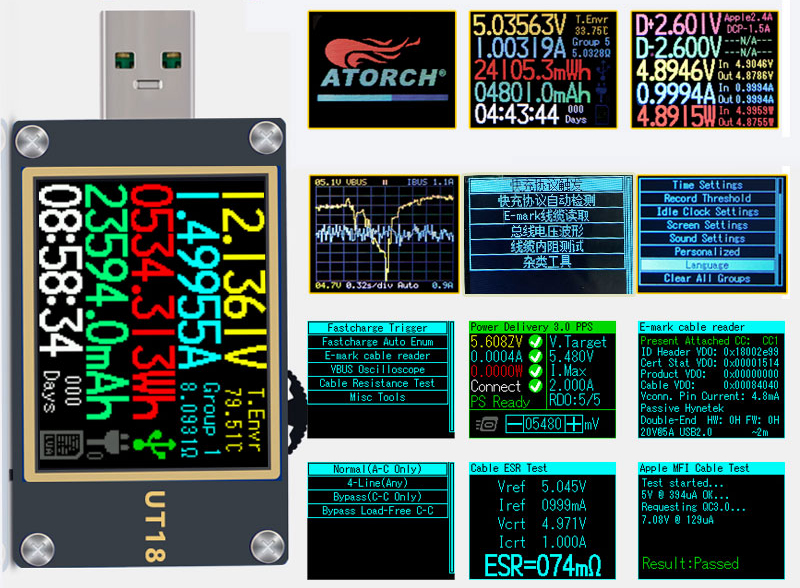

UT18 Fast Charge Protocol Detection/Trigger:
01. Fast charge protocol detection
02. PD protocol trigger
03. QC2.0 protocol trigger
04. QC3.0 protocol trigger
05. Power Delivery
06. For HUAWEI FCP
07. For HUAWEI SCP
08. For HUAWEI SSCP
09. For Samsung AFC
10. For VOOC/DASH/WARP CV
11. For Super VOOC
12. For Super VOOC 2

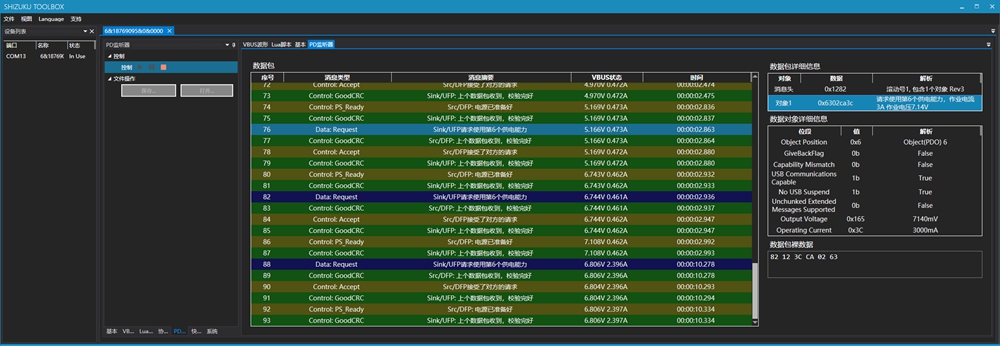

Online with Host Computer:

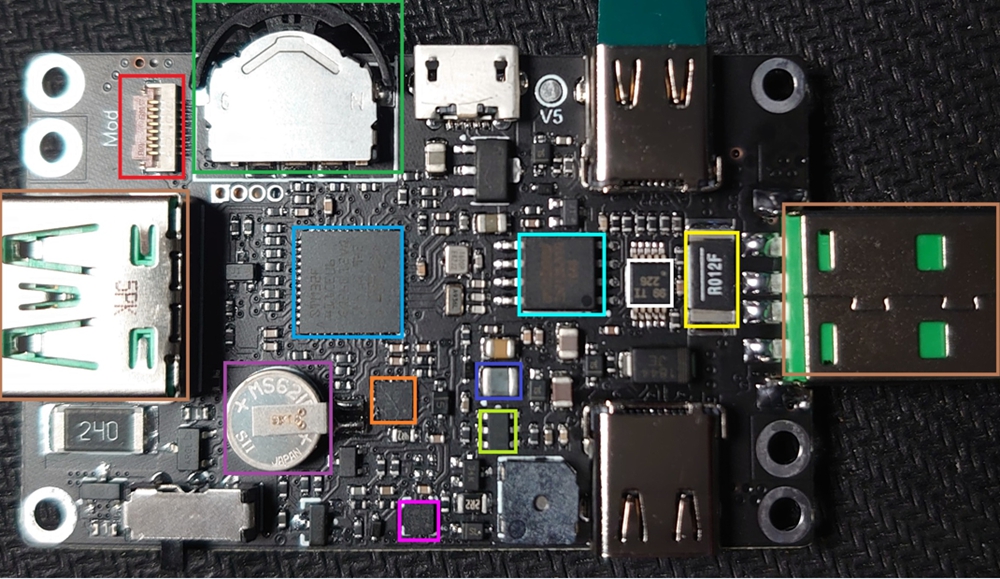

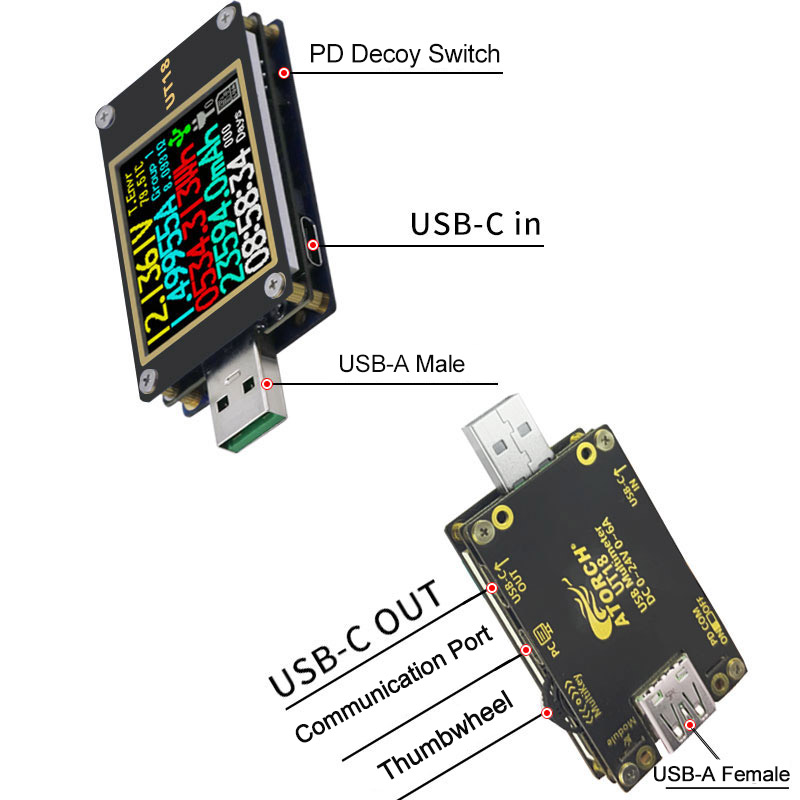

Premium Components:
- MCU: For Cortex-M4 100MHz. For ST.
- Thumbwheel: For ALPS.
- Expansion Module Port: For Japan Hirose Electric Group.
- USB-A Male Female Connectors: Large current USB3.0. The same as that for OPPO.
- Gravity Sensor: For Japan ROHM.
- DC-DC: For America MPS.
- User Memory: 12MBytes. For Winbond.
- Capacitor: For Murata.
- Sampling Resistor: For America Vishay.
- PD PHY: For Fairchild Semiconductor.
- Current Voltage ADC: 16Bit directional current. For TI.

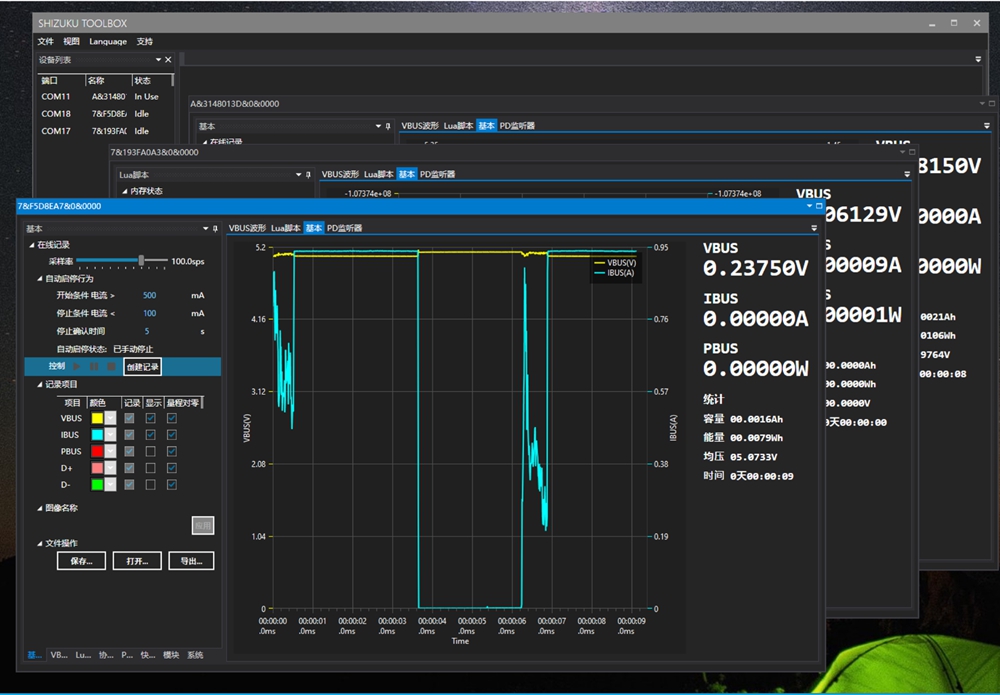

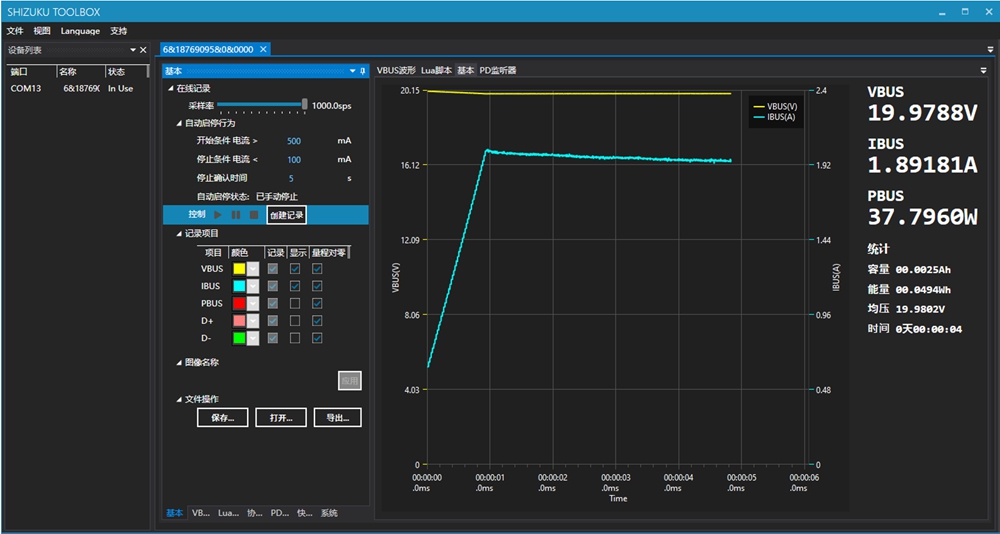

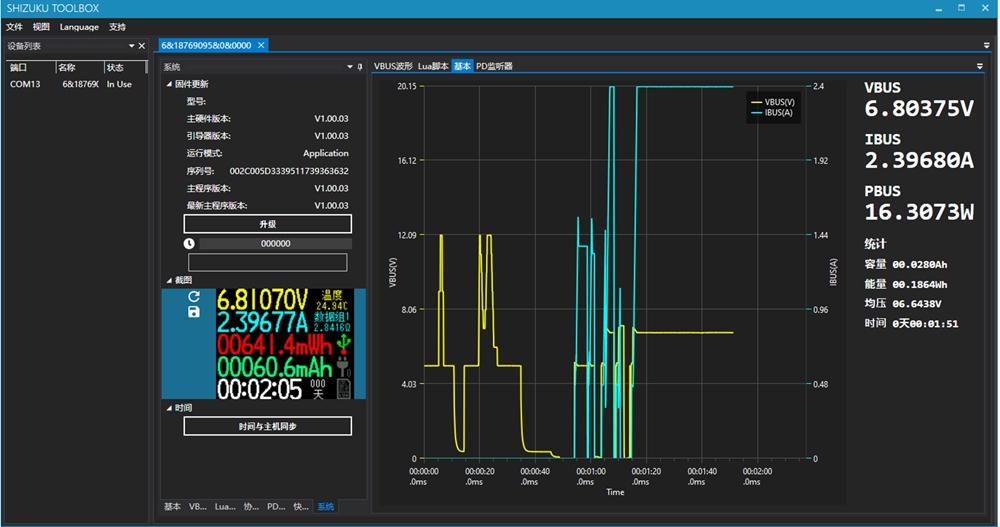

The basic voltage and current D+D- recording function of host computer. The highest sampling rate is 1000sps.

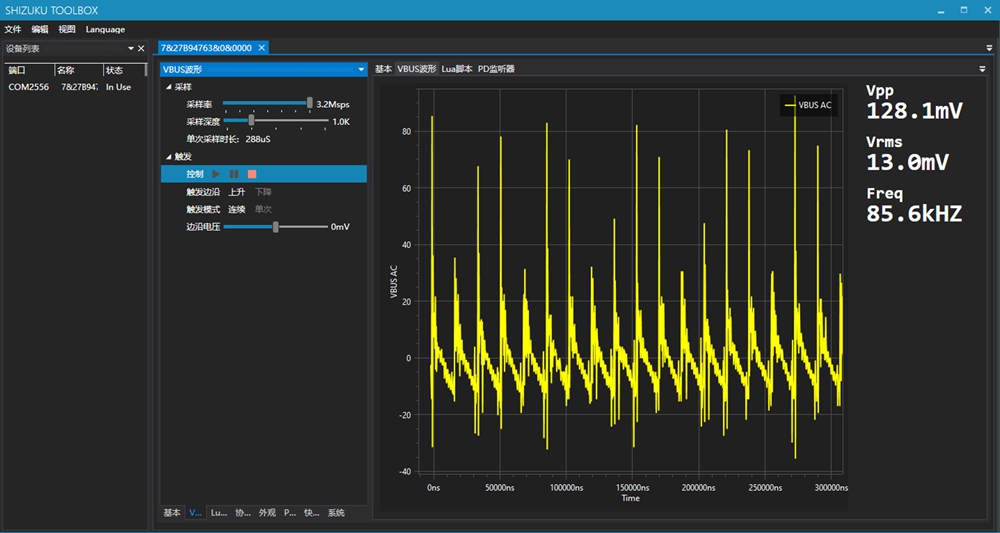

Ripple is collected to the host computer for viewing, the maximum sampling rate is 3.2Msps, and the maximum sampling depth is 8K points.

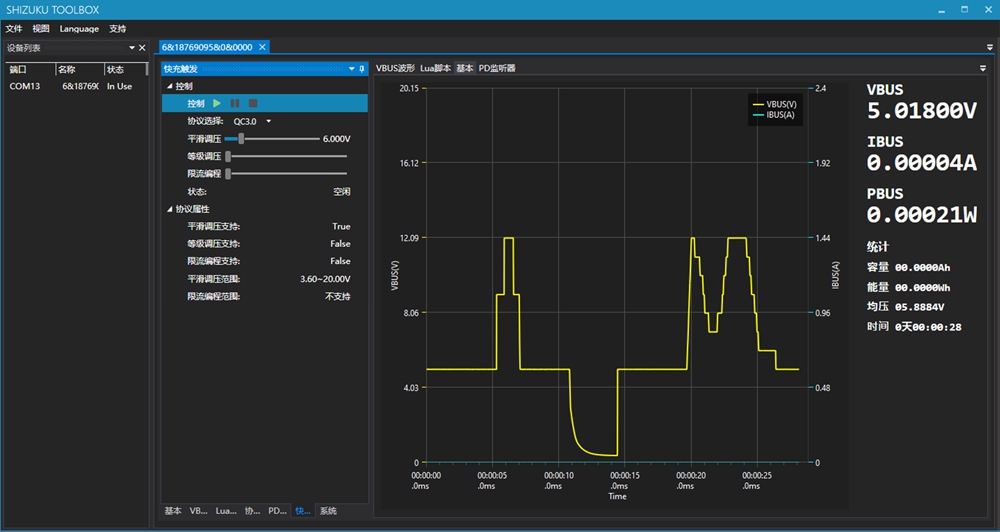

The host computer will trigger fast charge. Cooperate with other pages to facilitate debugging and use.


PD monitoring: Allow engineers and advanced users to debug PD faults.


Simple firmware upgrade. Automatically check firmware and upper computer update.


Support multiple devices connected at the same time, multiple meters can work together.


Complete, detailed, easy-to-understand documentation, with Demo Code, to help you quickly complete secondary development.
