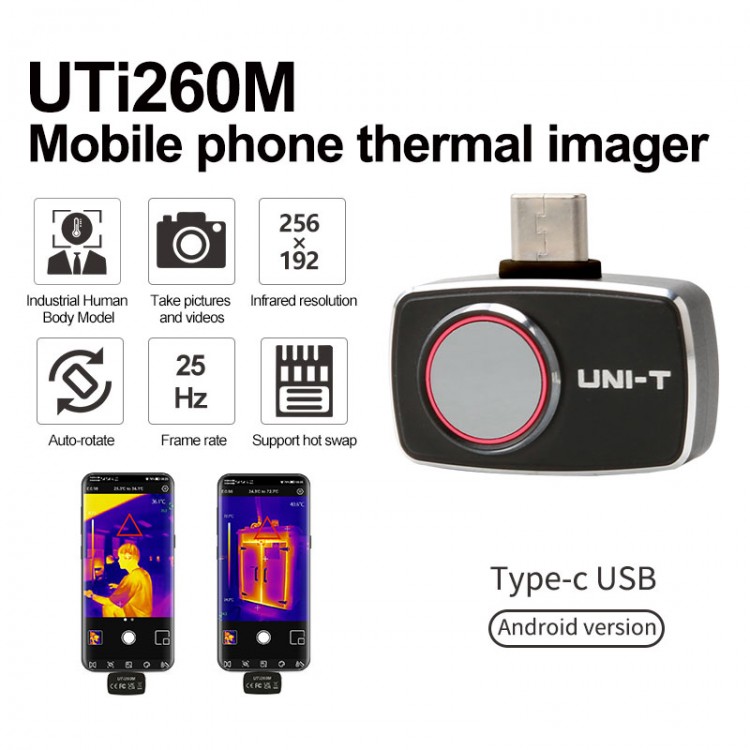

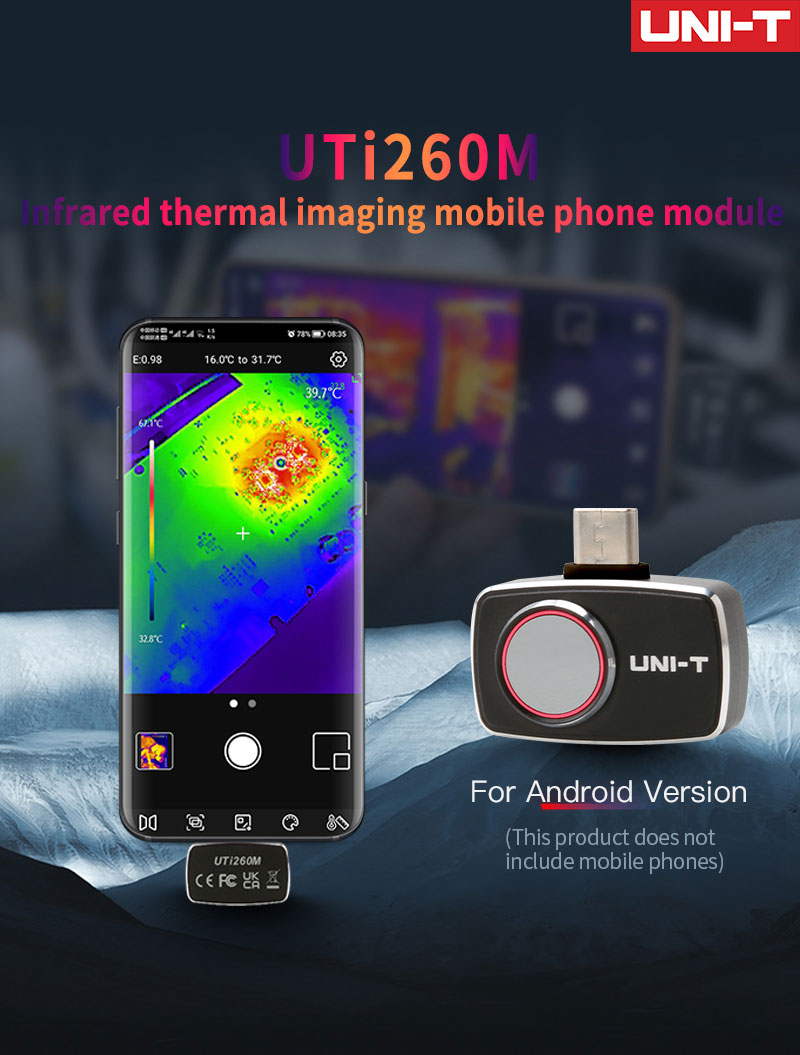

UTI260M Mobile Phone Thermal Imager Thermal Imaging Camera 256x192 Pixel for Electrical Equipment
Description:

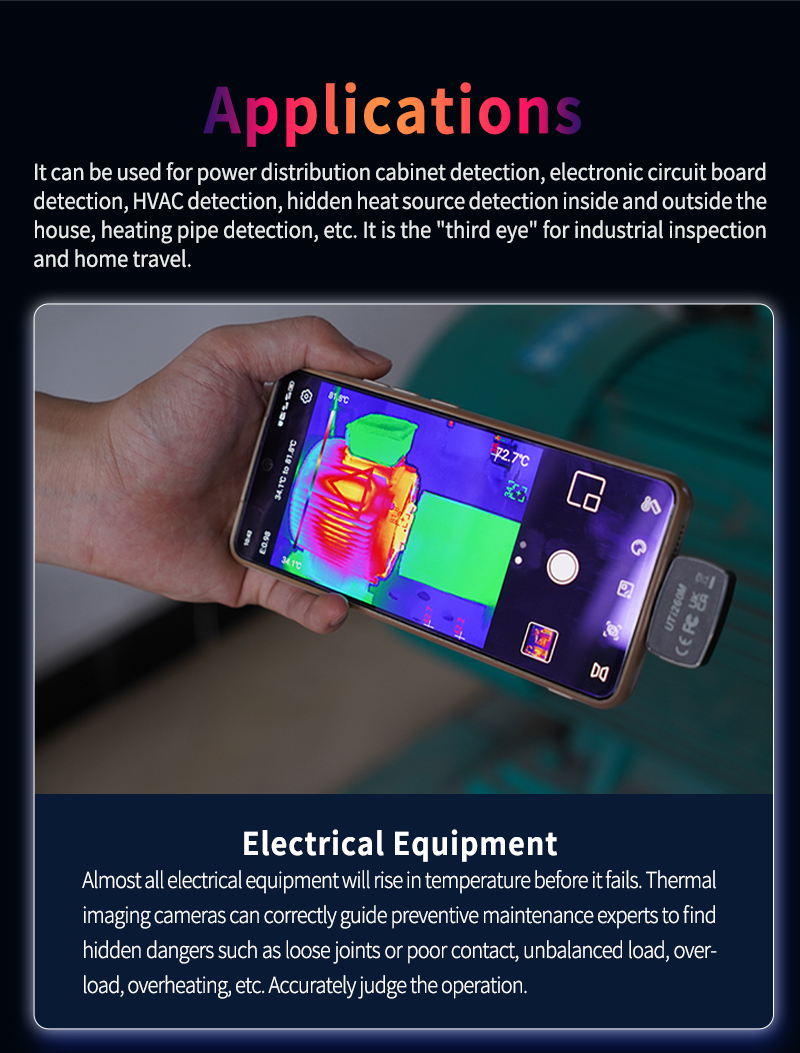

UTI260M is a professional thermal camera module for smartphones, which is compact, portable, and easy to operate through connecting with mobile phones. Its 256x192 IR resolution provides clear image with a fast response. UTI260M is with wide temperature measurement range -20℃ to 550℃. It includes two measurements modes for elevated skin temperature inspection and industry applications. Users can troubleshoot HVAC problems or investigate heat source issues around the house and hidden issues faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners, outdoor lovers, engineers, contractors and builders, etc.

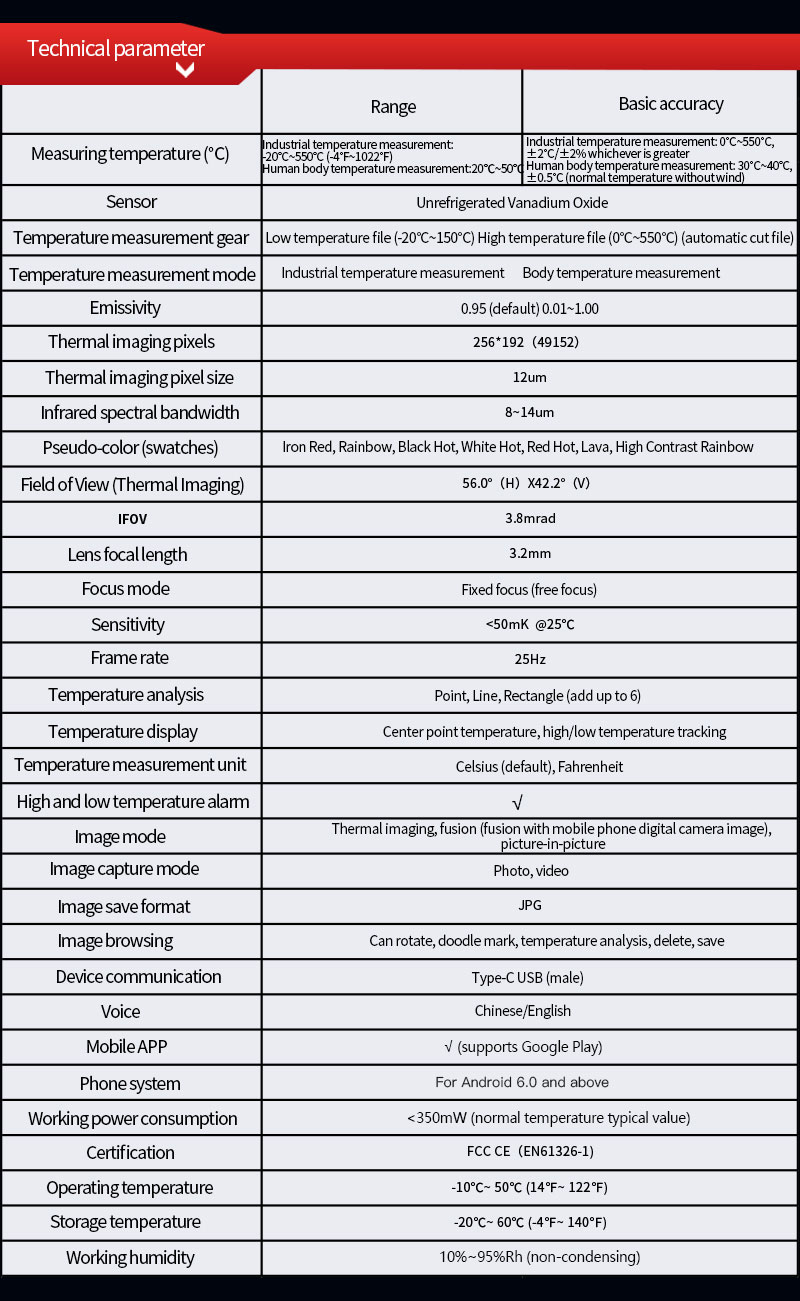

Features:
1. IR resolution: 256x192 (49152)
2. Temperature measurement range: -20℃ to 550℃ / -4℉ to 1022 ℉

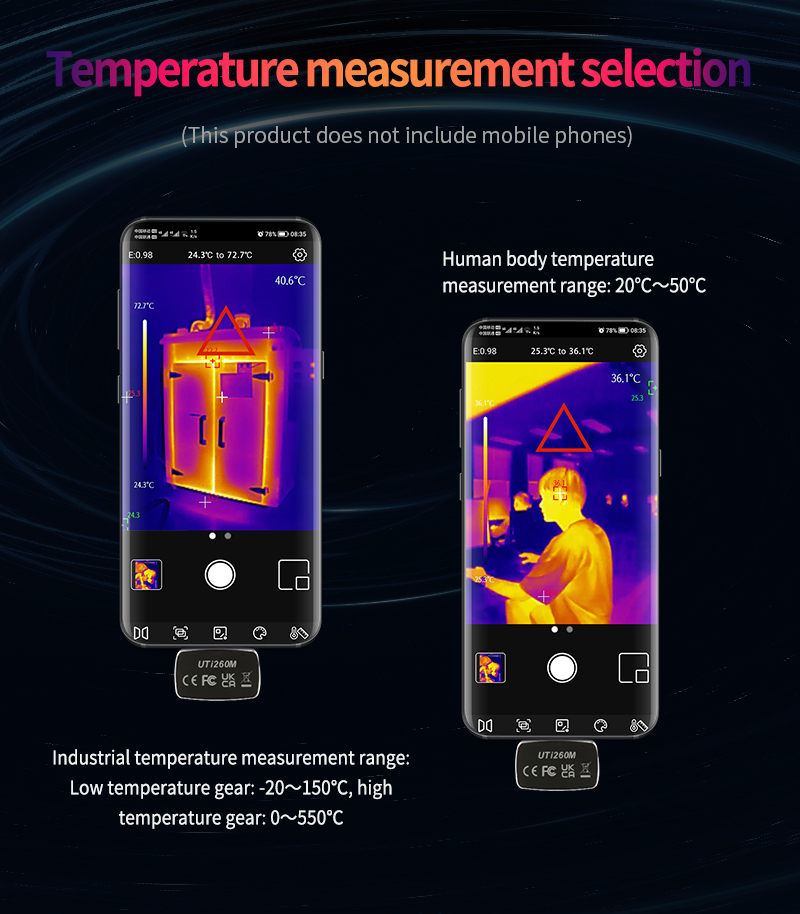

3. Measurement modes: Industry, EST (Elevated Skin Temperature)
4. Temperature scale: Low gain: -20℃ to 150℃, High gain: 0℃ to 550℃

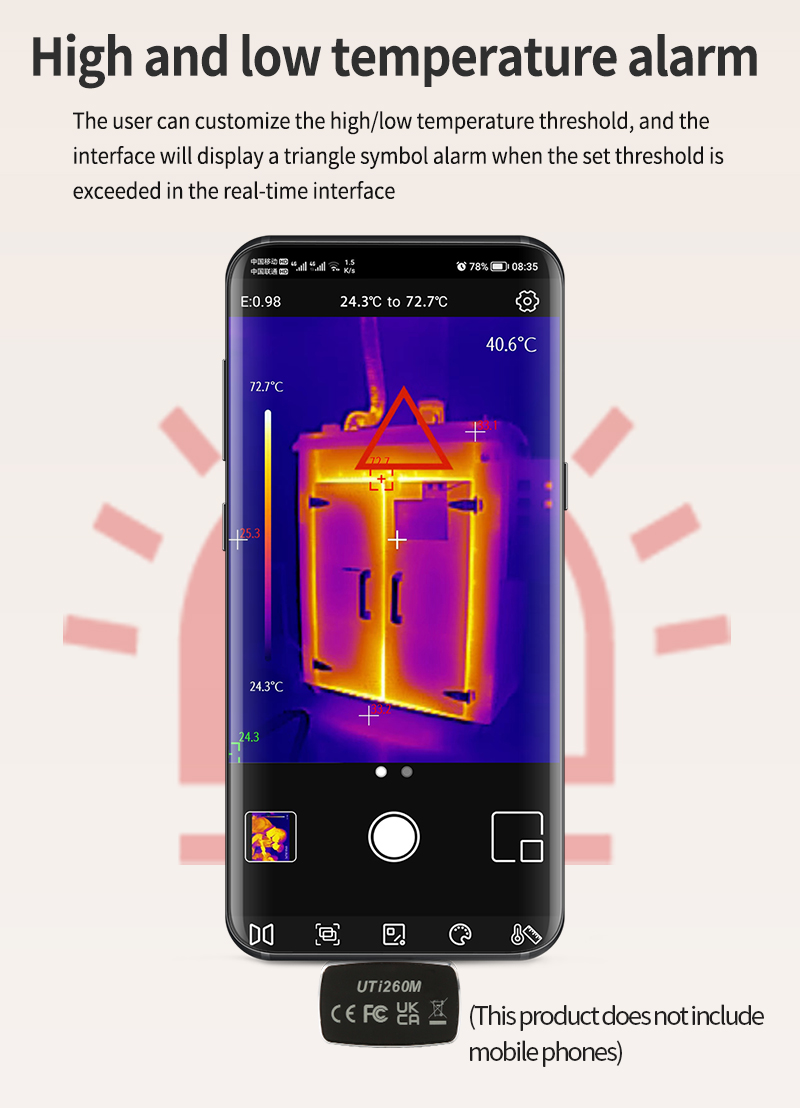

5. Automatic alarm for high/low temperature
6. Automatic tracking for hot spot/cold spot

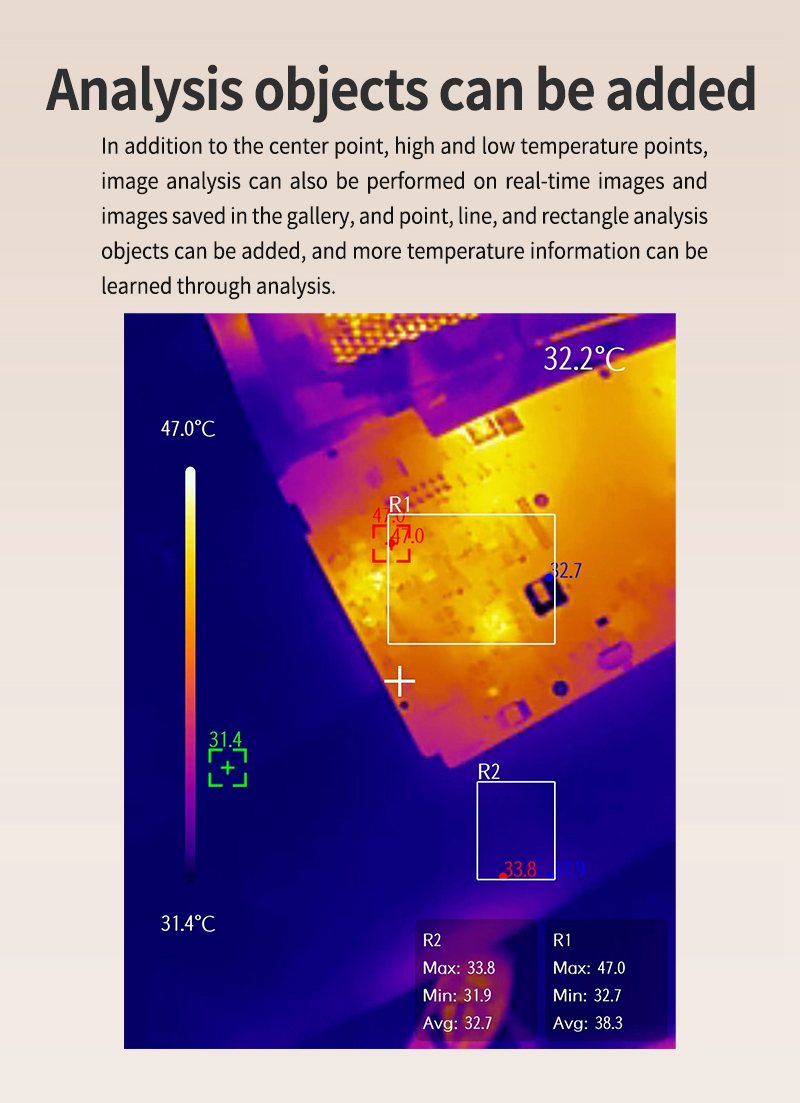

7. On screen analyzer: Point 6/ Line 6/Rectangle 6/Circle 6
8. Image collection

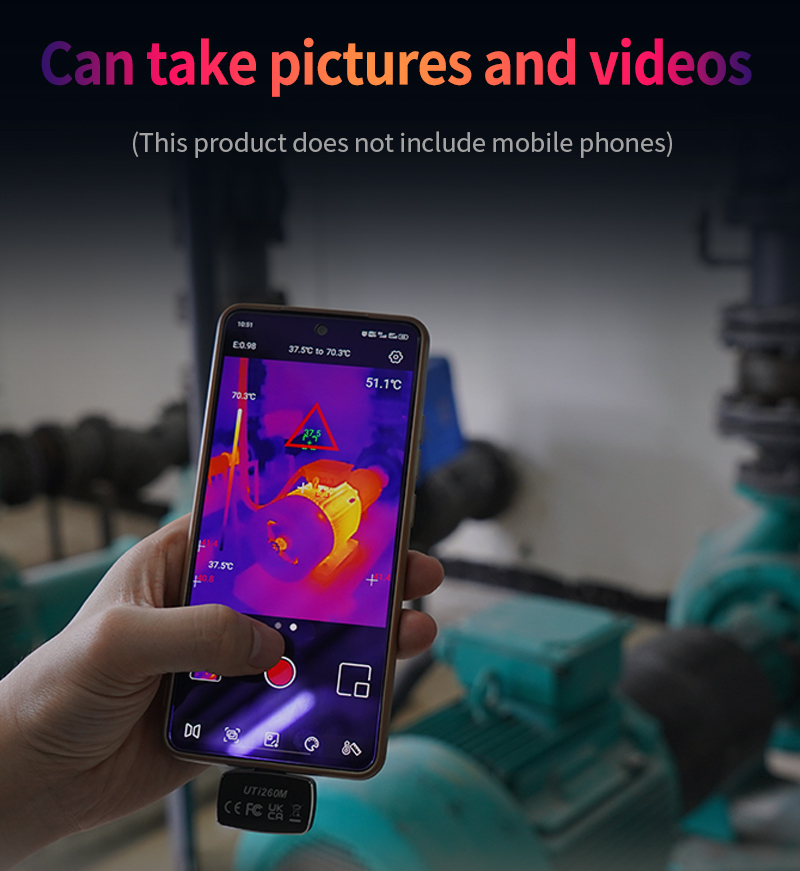

9. Video recording

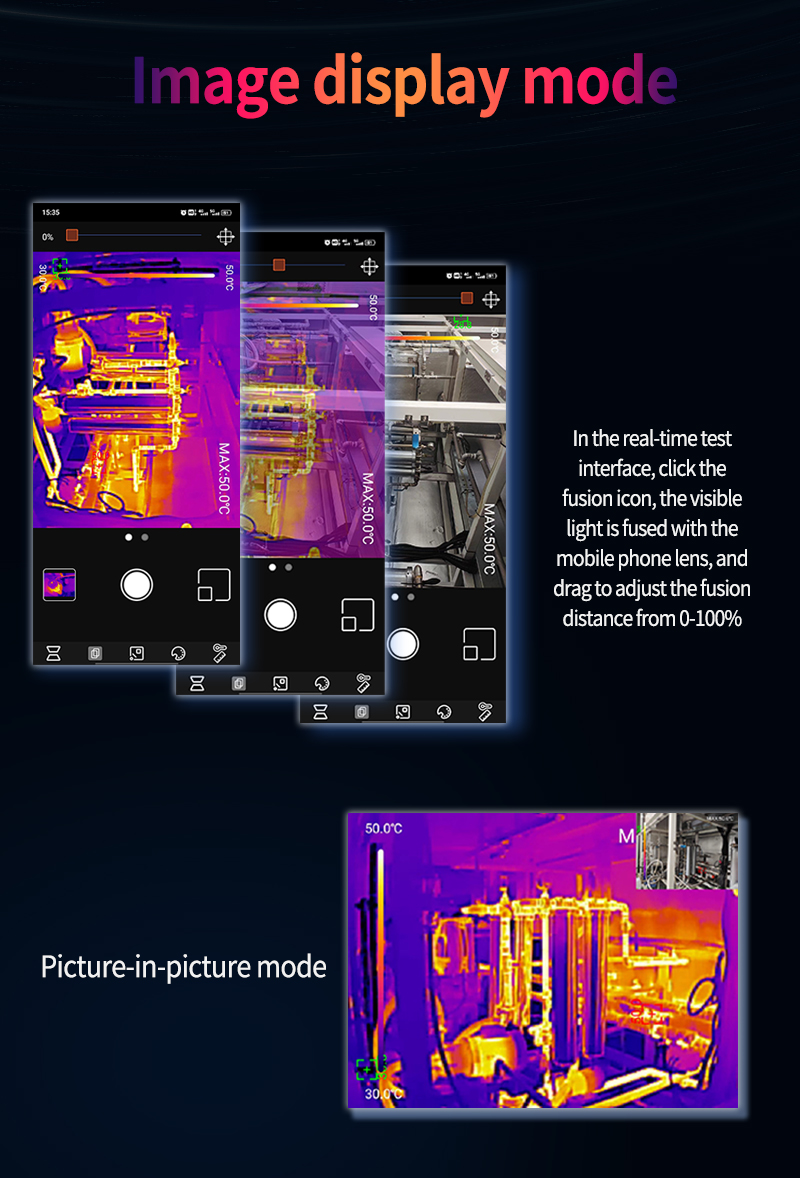

10. Image modes: Thermal, Fusion, PIP

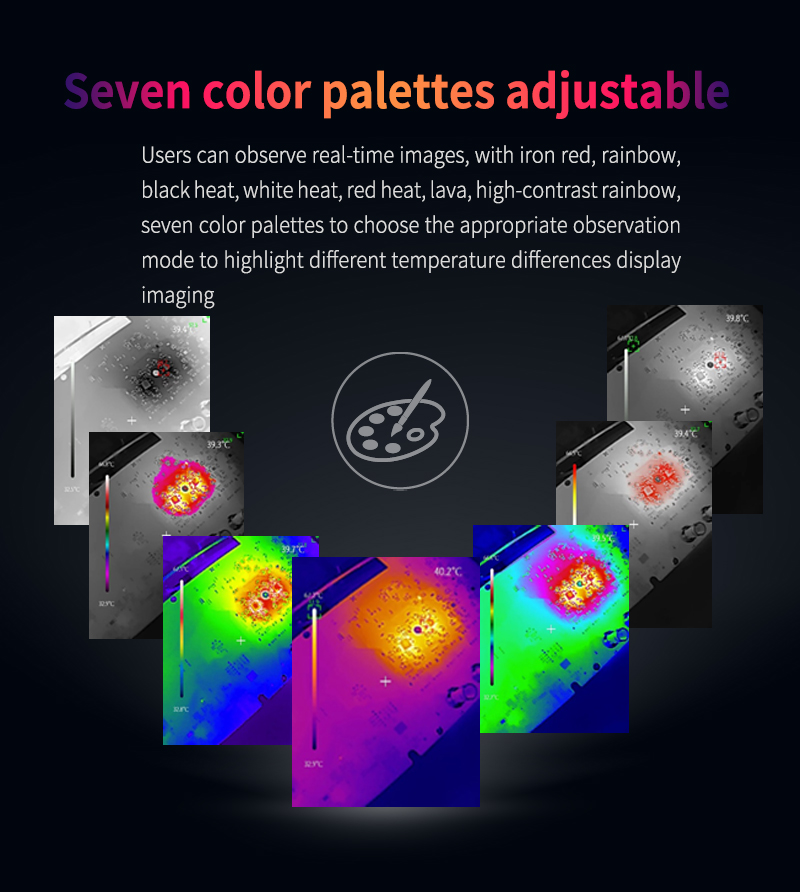

11. Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
12. Phone: for Android (USB Type-C interface)
13. 1m/3.3ft extension cable
14. 2m/6.6ft drop-proof
Package Included:
- 1 x Main Unit
- 1 x Extension Cable
- 1 x Software Download Guide
- 1 x Manual
- 1 x Certificate
- 1 x Product Protection Box
