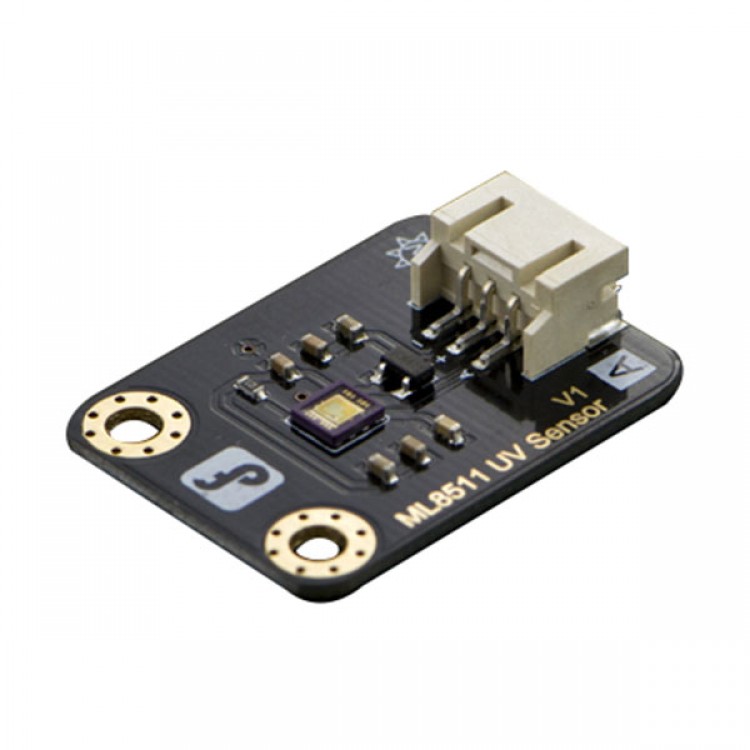

UV Sensor v1.0 - ML8511 Module for Arduino Decteting Indoor Outdoor UV Density 0.1uA Energy Saving

UV Sensor v1.0 - ML8511 Module for Arduino Decteting Indoor Outdoor UV Density 0.1uA Energy Saving

INTRODUCTION
- The ML8511 is a UV sensor, which is suitable for acquiring UV intensity indoors or outdoors. iT is equipped with an internal amplifier, which converts photo-current to voltage depending on the UV intensity. This unique feature offers an easy interface to external circuits such as ADC. In the power down mode, typical standby current is 0.1A, thus enabling a longer battery life.
- This sensor detects 280-390nm light most effectively. This is categorized as part of the UVB (burning rays) spectrum and most of the UVA (tanning rays) spectrum. It outputs a analog voltage that is linearly related to the measured UV intensity (mW/cm2). If your microcontroller can do an analog to voltage conversion then you can detect the level of UV.

FEATURES
    Photodiode sensitive to UV-A and UV-B
    Embedded operational amplifier
    Analog voltage output
    Low supply current (300A typ.) and low standby current (0.1A typ.)
    Small and thin surface mount package (4.0mm x 3.7mm x 0.73mm, 12-pin ceramic QFN)

APPLICATIONS
    Smart phone
    Watch
    Weather station
    Bicycle navigation
    Accessary
    Gaming

SPECIFICATION
    Supply Voltage: DC 5V
    Operating Temperature: -20~70°C
    Sensitivity Region：UV-A and UV-B
    Sensitivity Wave Length:280-390nm
    Module Size: 30 x 22mm

DOCUMENTS
    Wiki Doc
    Schematic
    ML8511 datasheet
    UV Effects on Humans
    UV FAQS
    Ultraviolet index

SHIPPING LIST
    UV Sensor v1.0-ML8511 x1
