UWB Positioning System Distance Sensor Module Direction Finding Angle Module LinkTrack AOA Tag

UWB Positioning System Distance Sensor Module Direction Finding Angle Module LinkTrack AOA Tag

Package Included:

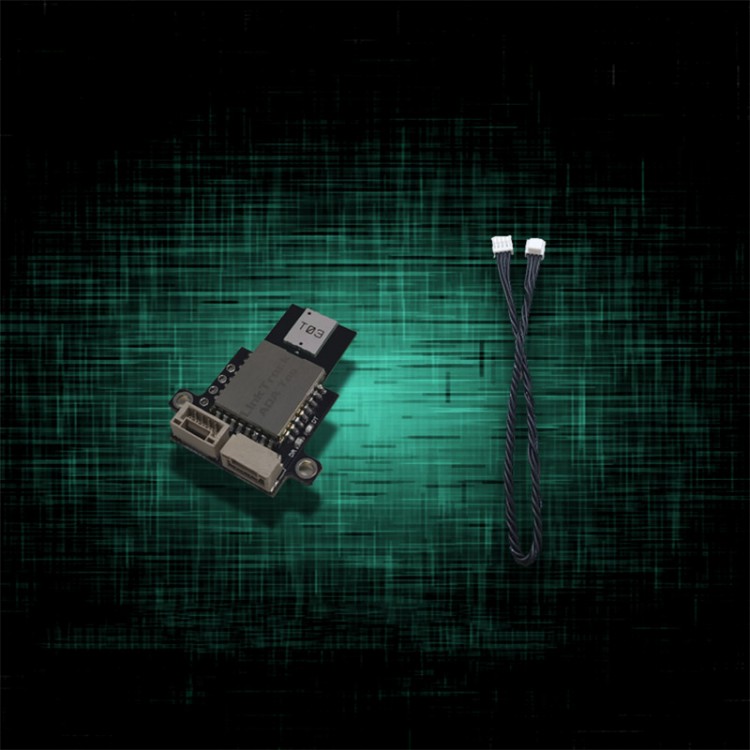

- 1 x LinkTrack AOA Tag Module
- 1 x GH1.25 4P Adapter Cable

Note: Other items mentioned or pictured are not included, for demonstration purposes only.

LinkTrack AOA Following System:
LinkTrack AOA is a UWB high-precision following system. Through multiple core technologies such as high-precision wireless synchronization and wireless positioning algorithms, the range and direction finding accuracy is higher, the operation is more reliable, and the experience is better. Through continuous innovation, we are committed to providing the industry with high-precision, high-reliability, and high-experience follow-up solutions.

LinkTrack AOA includes three roles: Tag, Anchor, and Monitor to meet the needs of users in more scenarios. The typical ranging accuracy is up to ±5cm, the direction finding accuracy is up to ±5°, and the refresh frequency is up to 200Hz. It integrates ranging, direction finding, timing, and communication, making it possible to perform two-way digital communication while ranging and direction finding.

It supports functions such as firmware update and multiple systems working at the same time. At the same time, it is free to authorize the use of the multi-functional NAssistant host computer assistant, which can run on three major operating systems and supports data, waveform, data recording, playback, and export functions. Make operation easier and development efficiency higher.

* Tag: The default maximum number is 1. Output the distance, azimuth and signal strength information of the tag to all base stations
* Anchor: The default maximum number is 4. Output the distance, azimuth and signal strength information of the tag to all base stations.
* Monitor: The maximum number is not limited. The distance, azimuth and signal strength of the output tag to all base stations; the azimuth and signal strength information from the tag to the monitor

LinkTrack AOA system is composed of two hardware models: AOA Tag and AOA Anchor. A0A Anchor supports the configuration of Anchor and Monitor 2 roles, enabling as many functions as possible and releasing more application scenarios under limited resources.

Principle:
Through UWB wireless communication technology, the accurate flight time between tag and anchor is calculated, and the accurate distance is obtained after multiplying by the speed of light.

Through the built-in multi-antenna array of anchor, the phase difference of the wireless electromagnetic wave is measured to obtain the relative angle.

NAssistant Host Computer Assistant:
* Data display: Support raw data, numerical data display, online status and other functions.
* Waveform display: Support multiple waveforms simultaneously display, zoom, color configuration and other functions.
* Multi-platform support: Supports three operating system platforms: For Windows, Ubuntu, and MacOS.
* More parameter functions: Support functions such as data recording, playback, export, product settings, software upgrades, firmware updates, log output, and entry guide.

Applications:
- Follow Me: Follow application scenarios such as suitcases, mobile robot drones, and unmanned ships.
- Navigation & Positioning: Determine a polar coordinate by distance and azimuth to realize navigation and positioning functions.
- Educational Research: Subject research, navigation and positioning algorithm research, etc.



Information & Support:
* Manual documents: Provide detailed data manuals, user manuals, communication protocol manuals and other documents.
* NAssistant assistant software: Rich and powerful functions, multi-platform support make development more effective.
* Driver code: Provide standard C language analysis code to facilitate your transplantation to various development platforms.
* ROS support: Provide ROS driver package to reduce development cost based on ROS platform.
