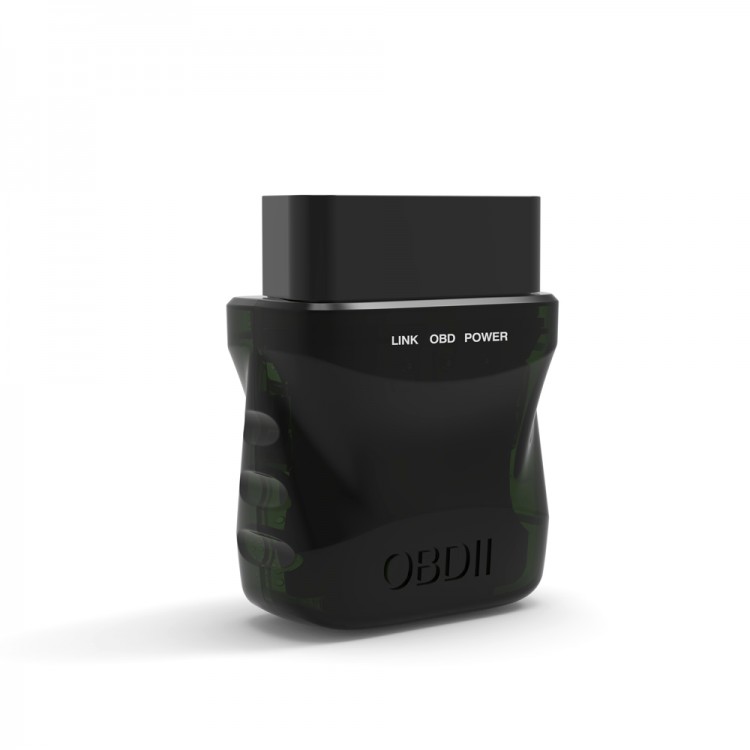

V015 Bluetooth OBDII Scanner Car Diagnostic Scanner Tool Software Platform For Android Windows IOS
Product Features:
1. Small size, highest chip integration, independent appearance patent, utility model patent and software copyright. Passed CE, FCC, RoHS certification.
2. The software can perform the following operations:
Read error diagnosis codes-general and manufacturer-specific, and display their meanings (Database has more than 3000 general code definitions)
Clear the error code and turn off the MIL ("Check Engine" indicator light)
Display current sensor data, including:
Engine revolutions per minute (RPM)
Calculated load value
Coolant temperature
Fuel system status
Speed
Short-term fuel situation
Long-term fuel situation
Intake manifold pressure
Fuel injection advance time
Intake air temperature
Air velocity
Absolute position of throttle valve
Oxygen detection voltage associated with short-term fuel state
Fuel system status
Fuel pressure
Fuel consumption monitoring and many other data
Future Features of Software:
- Data chart display and logging
- Freeze frame data
- Continuous and discontinuous oxygen detection results
Protocols Supported by OBDII:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
Software Platform:
1. Compatible Software:
- For Window: For ScanMaster-ELM, ScanTool.net, PCMSCAN, etc.;
- For Android: For Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBDII, EOBD, etc.;
- For Symbian version: For OBDScope.
2. Compatible Platforms:
- Software support platform: For Windows XP, Windows 7/8/10, Android, Symbian and other systems.
Specifications:
- Model: V015
- Communication method: Bluetooth 4.0
- Main control chip: MM32L073
- Voltage: 12V
- Working current: 32mA
- Operating temperature: -40℃ to 80℃/-104℉ to 176℉
- Working humidity: less than 60%
- Storage temperature: -30℃ to 80℃/-86℉ to 176℉
- Product size: 57 x 46.2 x 24.2mm/2.2 x 1.8 x 1 inch
Package Included:
- 1 x Set of OBD2 Scanner
