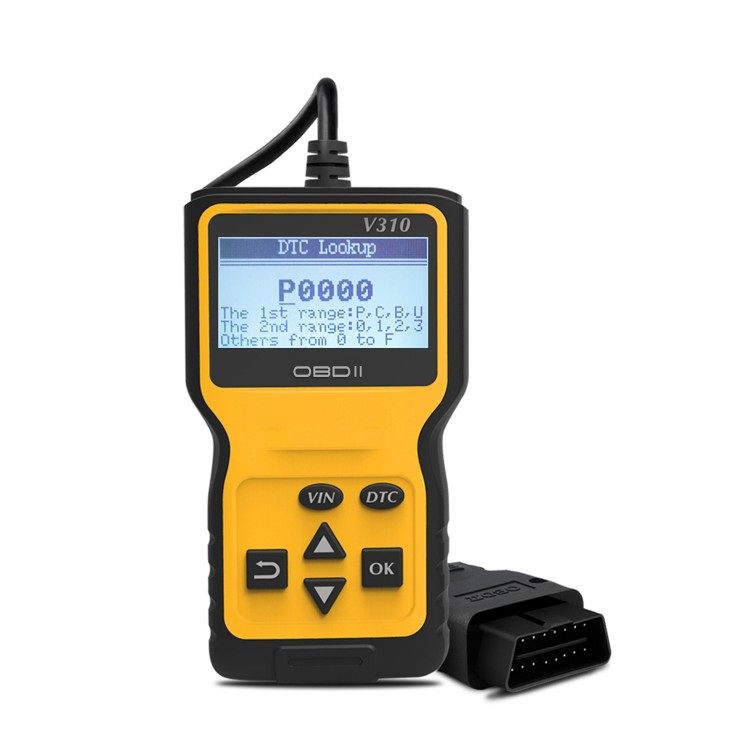

V310 OBD2 Code Reader Code Reader Diagnostic Tool Scanner 16-Pin Support 6 Languages

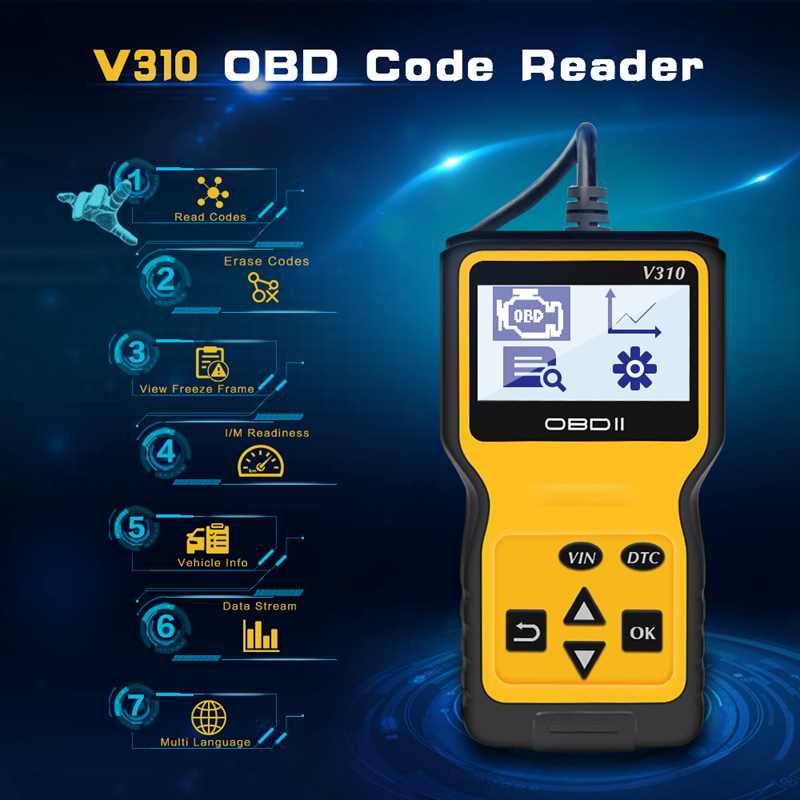

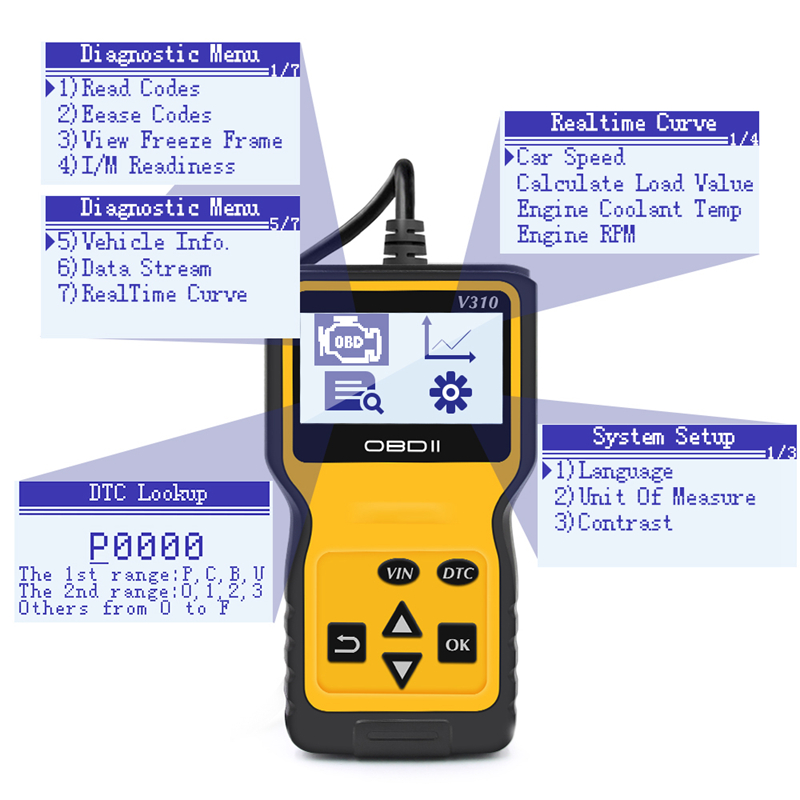

V310 Code Reader Features & Functions:

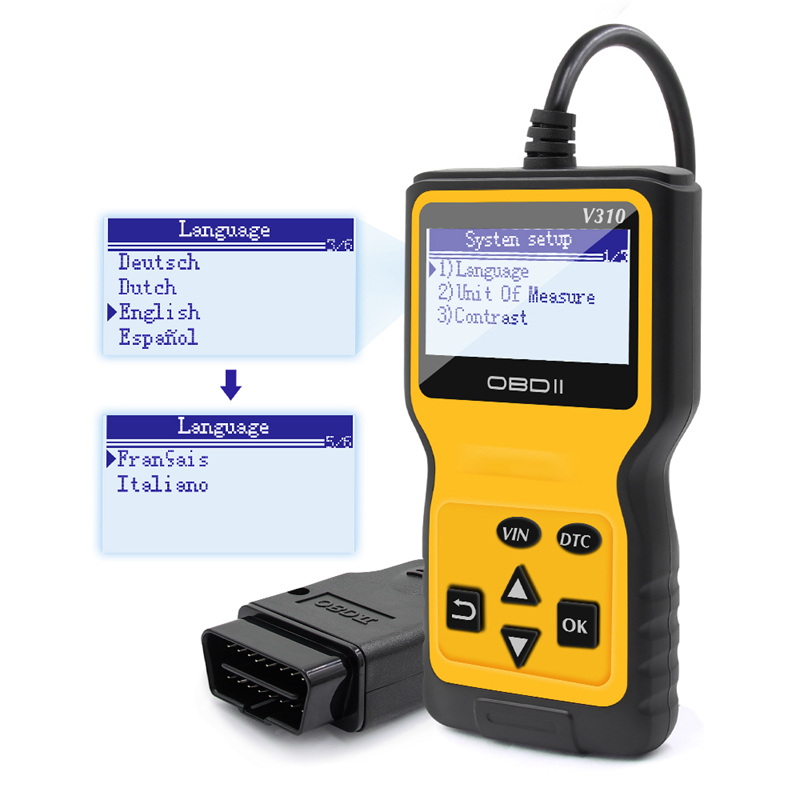

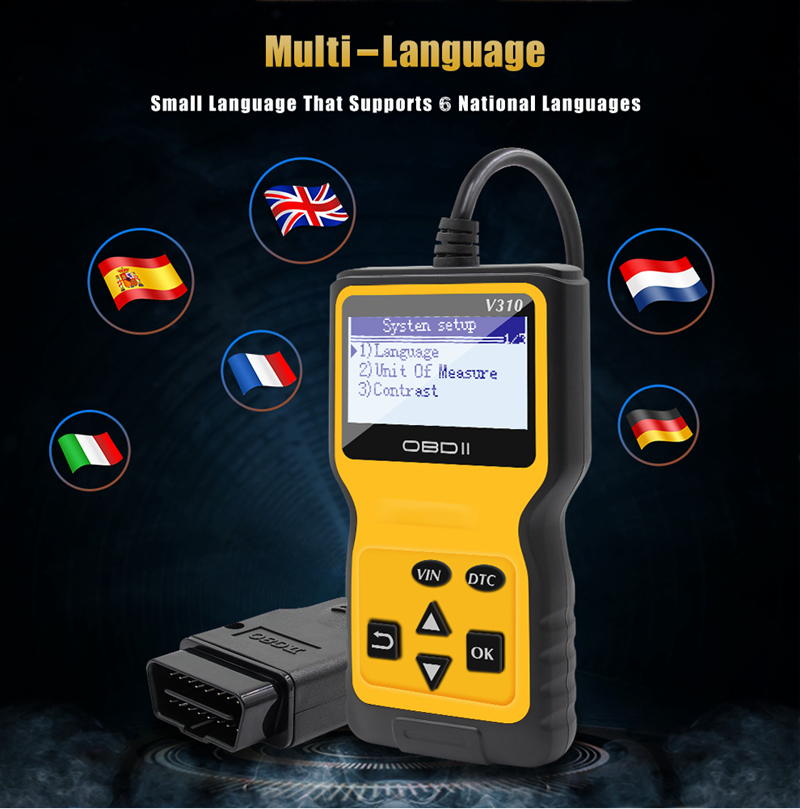

- Support 6 Languages: English, German, Italian, Dutch, Spanish & French.
- Read error diagnostic codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
- Read Vehicle Fault Code
- Clear error diagnostic codes and turn off MIL
- View Freeze Frame
- I/M Readiness
- Get Vehicle Information
- Data Flow
- Real-Time Curve

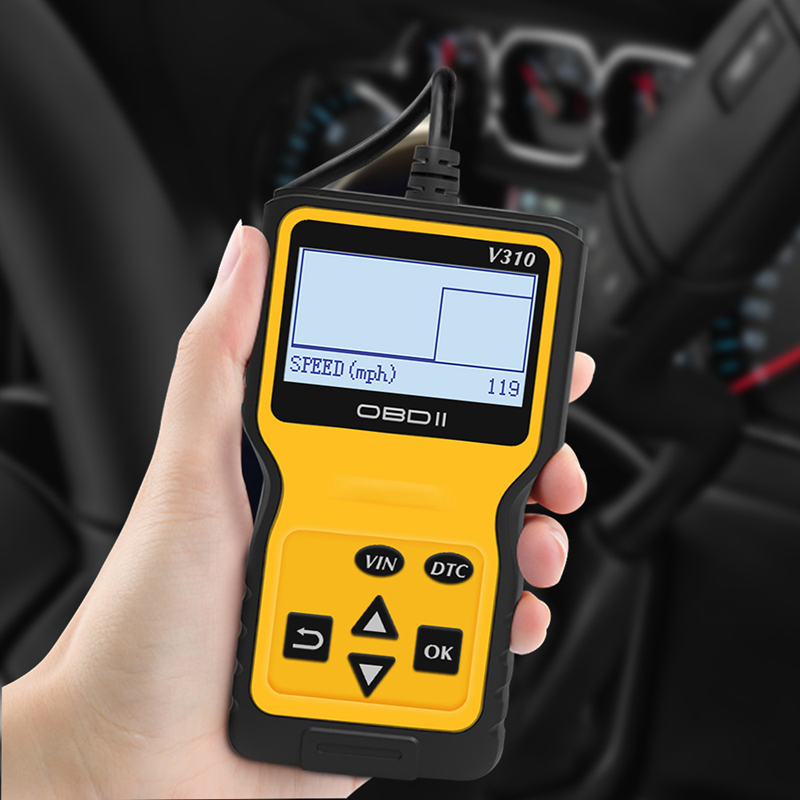

- Get Vehicle Speed
- Calculate Load Value
- Engine Coolant Temperature
- Get Engine Tachometer

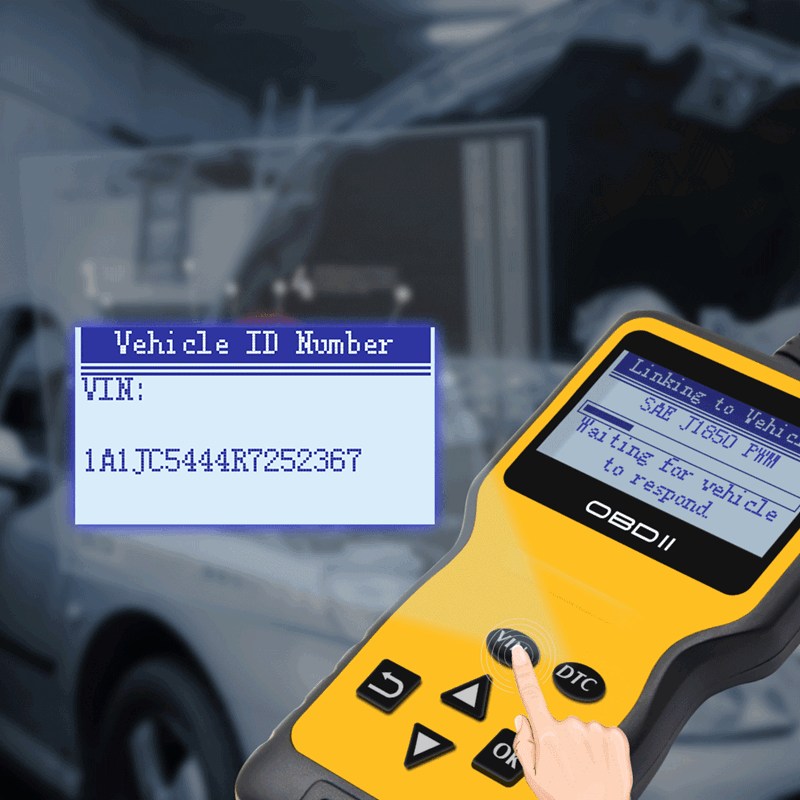

- Support One-Click VIN Query
- Fault Code One-Click Query
Supported Protocols:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
Specifications:
- Item No.: V310
- Item Type: OBD Code Reader
- Storage Temperature: -30℃ to 65℃
- Software Version: V310_FLASH_V01.01 V310_MCU_V06.01
- Hardware Version: V1.1
- Operating Voltage: DC 9-16V
- Working Current: 80mA
- Size: 155 x 85 x 25mm
- Weight: 200g
Package Included:
- 1 x V310 Code Read OBD2
- 1 x User Manual
