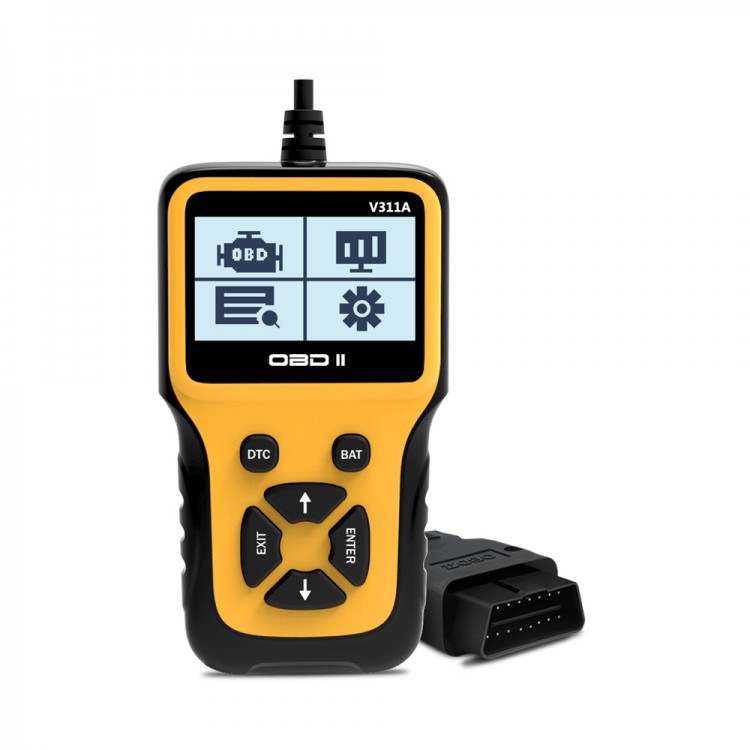

V311A Car Diagnostic Tool OBD2 Scanner OBDII Scanner Code Reader Automotive Tool

V311A Car Diagnostic Tool OBD2 Scanner OBDII Scanner Code Reader Automotive Tool

Features:
- This OBD2 reader is a great upgrade from the more basic diagnostic Code Reader.
- The function of this scanner is detecting the Engine System, read and clear the error codes.
- Once plugged into your vehicle's 16pin OBDII DLC, the unit will power up and prompt you to start your ignition.
- If your vehicle has a Check Engine Light comes on, you can use the scanner to read the error codes, find out what the problem is, and perhaps fix it.

Multi-Protocol Support:
1. Support Multi-brand cars, works with all 1996 and later OBDII compliant US, European and Asian vehicles.
2. Multi-language supported: Chinese,English, French, Italian, Spanish, German, Dutch.
3.Supporting shortcut key queries (VIN, DTC).
4.Support Read/Clear diagnostic trouble codes, I/M readiness, Vehicle Info,turn off the MIL ("Check Engine" light) an so on.
5. Display current sensor data, including: Engine RPM; Calculated Load Value; Coolant Temperature; Fuel System Status; Vehicle Speed; Short Term Fuel Trim; Long Term Fuel Trim; Intake Manifold Pressure; Timing Advance; Intake Air Temperature; Air Flow Rate; Absolute Throttle Position; Oxygen sensor voltages/associated short term fuel trims; Fuel System status; Fuel Pressure.

Minimize Maintenance Fee:
- You would be the master of your vehicle's health.
- Save maintenance costs and tackle every automotive problem that might arise with this handy little scanner.
- Start quick check of the car system ,fix and over.
- Read and erase error codes.
- Read and clear codes, turn off MIL. It also shows meaning of error codes;
- You do not need to search online for the meaning any more. One-Click DTC key allows you to check trouble codes quickly.

Specifications:
- Product Model: V311A

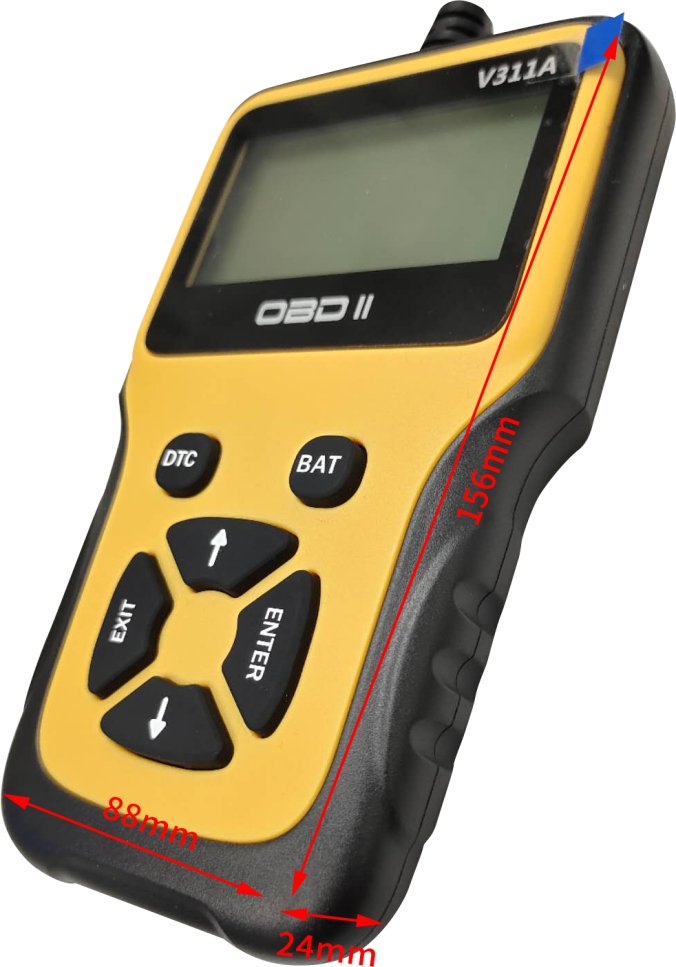

- Dimensions: 156 x 88 x 24 mm
- Storage temperature: -40 to 80℃
- Hardware version: V1.1
- Working voltage: DC 12V
- Working current: 70mA
- OBD interface: 16 PIN OBD male
- Display view area: 60.78mm (W) x 32.94mm (H)
- LCD display type: FSTN/translucent reflective
- Driver chip: ST7565 or C compatible IC
- Backlight drive type: power/white
- DC circuit: built-in

Supported Protocols:
1.SAE J1850 PWM (41.6Kbaud)
2.SAE J1850 VPW (10.4Kbaud)
3.ISO9141-2(5 baud init, 10.4Kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5.ISO14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)

Operations:
1. Insert the product into automotive OBD interface;
2. Use the reader to read the vehicle information.

Package Included:
- 1 x V311A OBDII Code Scanner
