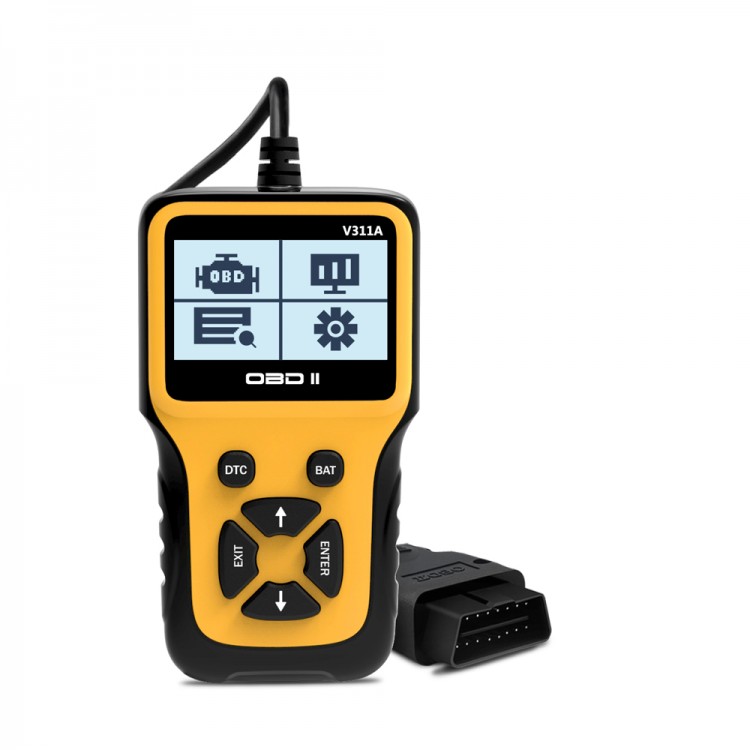

V311A Handheld OBDII Scanner Car Diagnostic Scanner Tool OBD2 Fault Code Reader w/ LCD Display

V311A Handheld OBDII Scanner Car Diagnostic Scanner Tool OBD2 Fault Code Reader w/ LCD Display

Features:
- It can read errors and clear diagnostic codes.
- This scanner can easily determine the reason for checking engine lights, display I/M ready status, and retrieve vehicle information.
- The car diagnostic scanner is data stream, real-time curve, and can be queried by DTC with one key.
- It supports multiple languages such as English, French, Spanish, German, Dutch.

Specifications:
- Product model: OBDII code reader
- Product model: V311A
- Dimensions: 156 x 88 x 24mm/6.1 x 3.5 x 0.9 inch (LxWxH)
- Storage temperature: -40 to 80℃/-104 to 176℉
- Hardware version: V1.1
- Working voltage: DC 12V
- Working current: 70mA
- OBD interface: 16PIN OBD male
- Display view area: about 60.78 x 32.94mm/2.4 x 1.3 inch (WxH)
- LCD display type: FSTN/translucent reflective
- Driver chip: ST7565 or C compatible IC
- Backlight drive type: power/white
- DC circuit: built-in

Supported Protocols:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

Operations:
1. Insert the product into automotive OBD interface;
2. Use the reader to read the vehicle information.

Package Included:
- 1 x Set of OBDII Scanner
