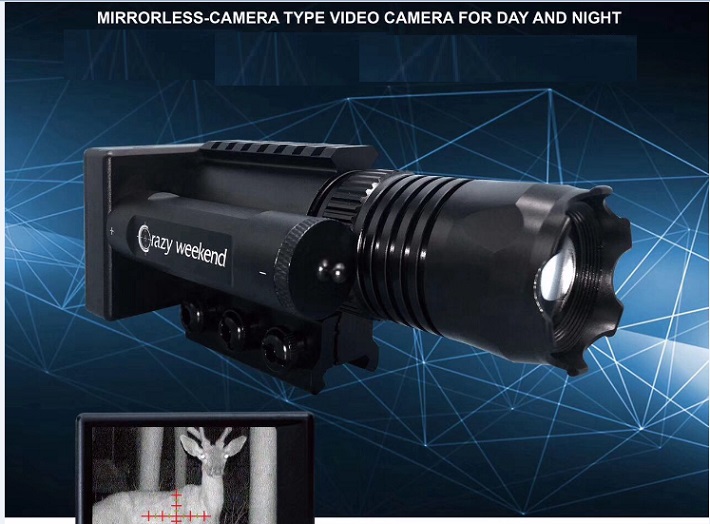

V502 Mirrorless Camera Type Video Camera for Day and Night 38MM Object Lens

V502 Mirrorless Camera Type Video Camera for Day and Night 38MM Object Lens

Product Description:
- V502 is a global pioneer mirrorless-camera type video camera for day and night;visual liquid crystal display on the rear center helps to find and collect the targets in the fastest speed,and make the night scene available for several people,the product is also a pioneer binocular optical aiming device,As an aiming telescope,precise aiming with only one bullet can thoroughly solve the past problem of wasting bullets,labor and time in adjusting the aiming telescope.
- The high-strength aluminum alloy shell,smaller and lighter than similar products,can truly keep the high anti-knock electronic cross lines unchanged.The product can be sued to remote concealed monitoring,investigation and evidence collection,real time image transmission with synchro computer network and so on;with the above mentioned functions,the versatile product is all-weather suitable for army,people an others

Function Description:
- At the request of consumers at home and abroad,night vision observation of the target scene more distant;require night vision with HD effects,is conducive to shooting forensics,to avoid hunting accidental injury
- Easy to quickly search,looking for the target night vision,Multi-function adjustable night vision with aiming
- Light weight,small size,strong seismic capacity.Outdoor sports need to be able to use day and night for lightweight design
- Using high-power,high-definition,high-precision lens,advanced high-definition night vision HD sensor
- Adjustable invisible long-range infrared emitters,can see objects within 300 meters in all black environment
- To achieve long-range mobile surveillance hidden,video forensics,search and so on
- Using an external display screen to avoid the traditional night vision and thermal imaging using the viewfinder for a long time caused by fatigue glasses

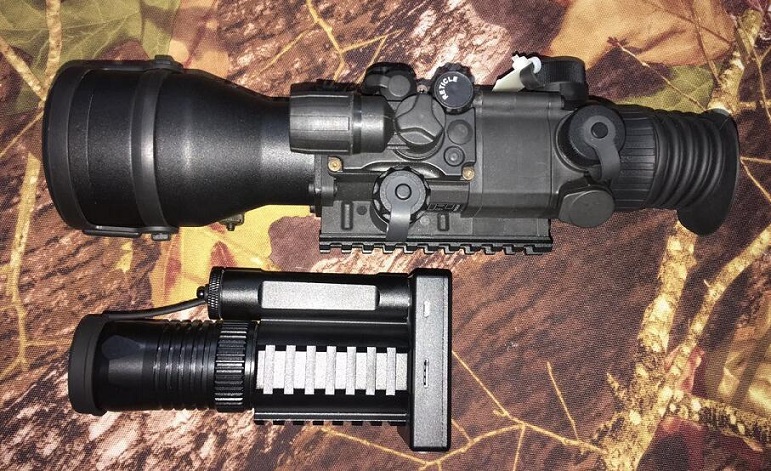

- The use of high-strength aviation aluminum shell,the lens and the body tight connection,mount the mount and the body,the lens into a straight line parallel Erection joint mount: attachable dovetail slide bearing and Picatinny rail in positive and negative sides

Technical Description:
- Multiplying power:optic4x plus digital1.5x 6x in maximum
- Object lens:38MM
- Adjustment range
 of the object lens:"3-00
- Displayer:3 inches
- Resolution ratio:1280x960,black an white image
- Viewing distance:(night) no less than 250M
- Identification distance:180M
- Working hours:6-7 hours for observation: 2 hours for filming
- Micro SD card maximum:32G
- Working temperature:-15 +60
- Infrared supplementary lighting:"780-940

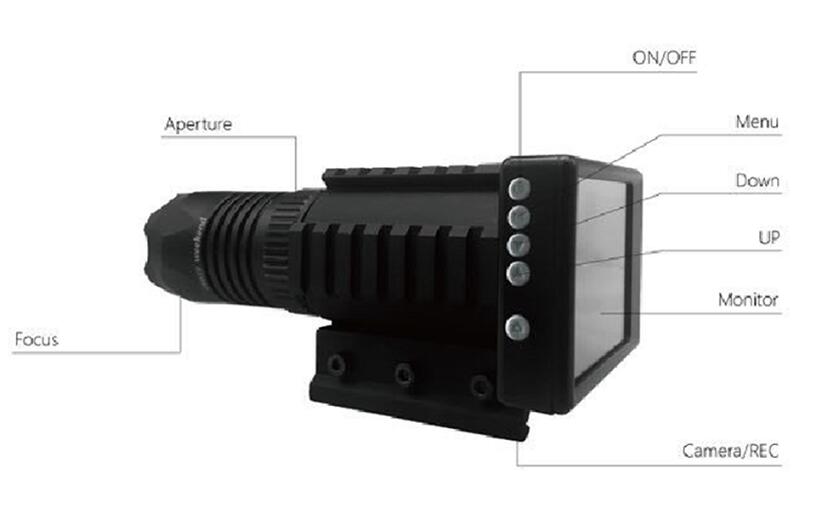

1.Usage of function Keys:
   ON/OFF key.1.power on and power off
   2."Enter key" in the menu bar
   3.Down key in cross adjusting
Menu key:1.Menu key in main interface
         2.Back/Esc key in submenu
         3.Up key in cross adjusting
Down key:1.Down key in menu
         2.Righe key in cross adjusting
Up key: Up key in menu :left key in cross adjusting
Photography key: Photography and video

2.Battey:
lt is suggested  to keep the continuous working hours within 4 hours when suing high mode infrared supplementary lighting.In low mode,the device can work for at least 8 hours.
The battery can keepworking for 2 hours after  the night-vision device shows low voltage:the device has low voltage protection so automatic shutdown will not influence the battery life.

3.Power on and power off
Turn the devise on and observation mode by tickle the ON/OFF key when the device is power-OFF power off the device by long press the ON/OFF key (about 2 Seconds) when the device is power-ON

4.Cross adjusting and image focusing and adjusting
Long press the menu key: the palm icon on the screen indicates the cross adjusting mode;press the key shortly and gently (Attention: NO long press means a dot's excursion);in cross adjusting monde,press setup and shutdown key to move the cross downward: press the MENU key to move the cross upward;press (DOWN key in menu) to move the cross rightward;press( UP key in menu)to move the cross leftward:long press the MENU key to exit and save.
Remark: way to adjusting with a shot
For example:
1 pick target A and shoot it: Because the first shot has not adjusted,most falling points will not be A,but elsewhere we name the falling point B
2.Aim Point A again: press the MENU key to lock the screen image at the same time (aim the cross to point A when locking): entering the cross adjusting mode; adjust the cross to point B then; long press the MENU key to exit and save automatically.

5.Infrared supplementary lighting adjusting
The infrared supplementary lighting torch has both high and low electric modes;it is recommended to use the low mode within 50M-Push the infrared lens forward to focus the light and have a long shot:pull back the lens to have disperses light;pay attention to adjusting different distance;in the night-vision system,there are images with different space and light to show pictures with different definition.

6.Image focusing and adjusting
Rotate the lens clockwise to observe close distance;rotate lens anticlockwise observe long distance

7.Brightness adjusting
Press the MENU key to enter the menu and choose submenu "colors";adjust the brightness in the submenu with the direction key

8.Photograph and video
In the observation mode of the night-vision system;a short press(tap) on the photography key means taking a photo;a long press(about one second) to entry the video mode;during recording,a short press on the camera key can exit and save the video.
