V6 Multifunctional Inverter Refrigerator Detector Inverter Refrigerator Compressor Detector with Equipment Bag (Master Version)

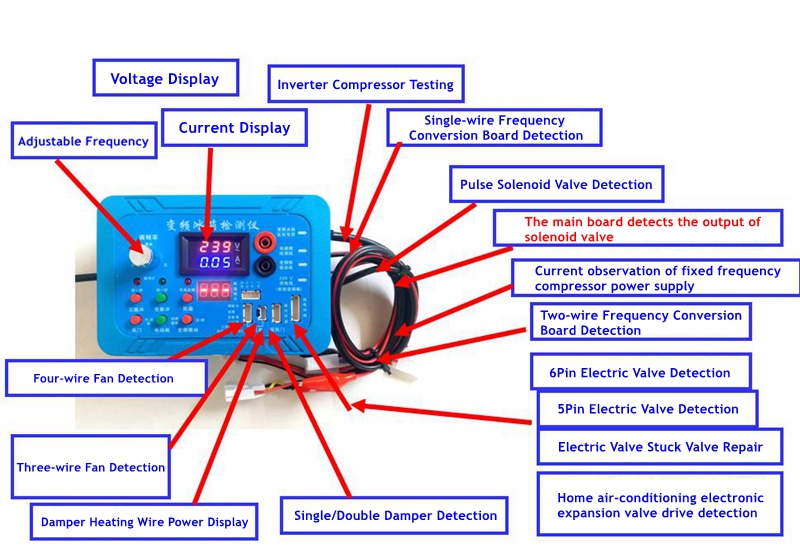

Function 1:
- Adjustable frequency
- Voltage display
- Current display
- Inverter compressor testing
- Single-wire frequency conversion board detection
- Pulse solenoid valve detection
- The main board detects the output of solenoid valve
- Current observation of fixed frequency compressor power supply
- Two-wire frequency conversion board detection
- 6pin electric valve detection
- 5pin electric valve detection
- Electric valve stuck valve repair
- Home air-conditioning electronic expansion valve drive detection
- Single/double damper detection
- Damper heating wire power display
- Three-wire fan detection
- Four-wire fan detection
Function 2:

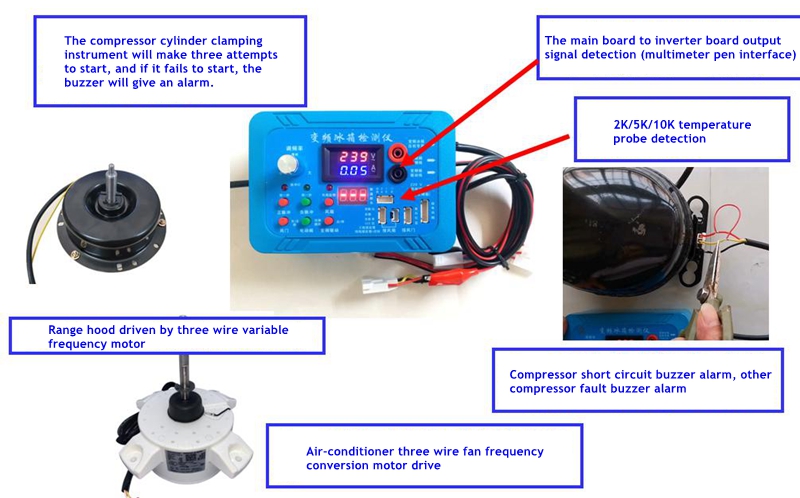

- The main board to inverter board output signal detection (multimeter pen interface)
- 2K/5K/10K temperature probe detection
- Compressor short circuit buzzer alarm, other compressor fault buzzer alarm
- Air-conditioner three wire fan frequency conversion motor drive
- Range hood driven by three wire variable frequency motor
- The compressor cylinder clamping instrument will make three attempts to start, and if it fails to start, the buzzer will give an alarm.
Function 3:

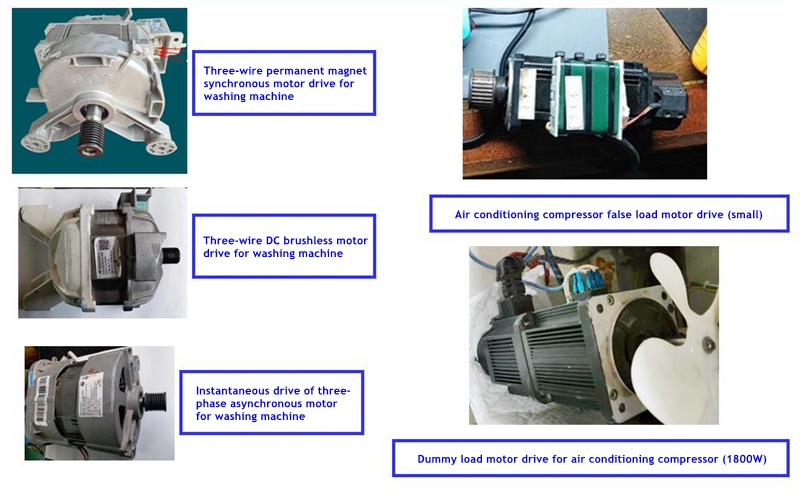

- Three-wire permanent magnet synchronous motor drive for washing machine
- Three-wire DC brushless motor drive for washing machine
- Instantaneous drive of three-phase asynchronous motor for washing machine
- Air conditioning compressor false load motor drive (small)
- Dummy load motor drive for air conditioning compressor (1800W)
Function 4:

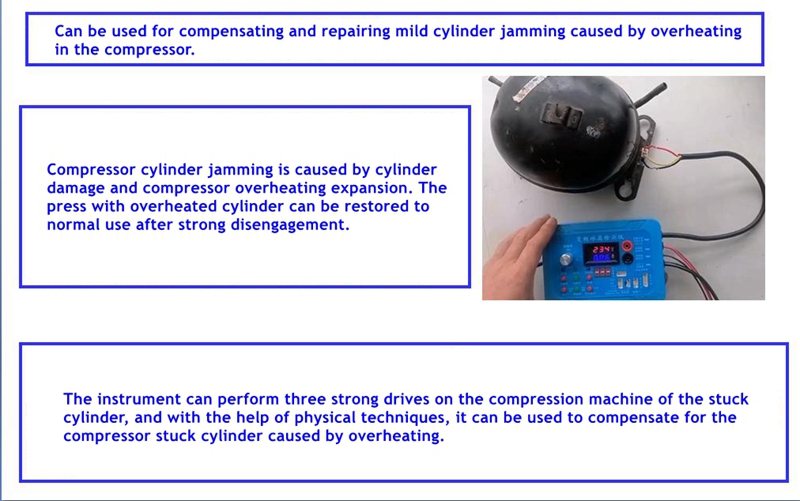

- Can be used for compensating and repairing mild cylinder jamming caused by overheating in the compressor.
- Compressor cylinder jamming is caused by cylinder damage and compressor overheating expansion. The press with overheated cylinder can be restored to normal use after strong disengagement.
- The instrument can perform three strong drives on the compression machine of the stuck cylinder, and with the help of physical techniques, it can be used to compensate for the compressor stuck cylinder caused by overheating.

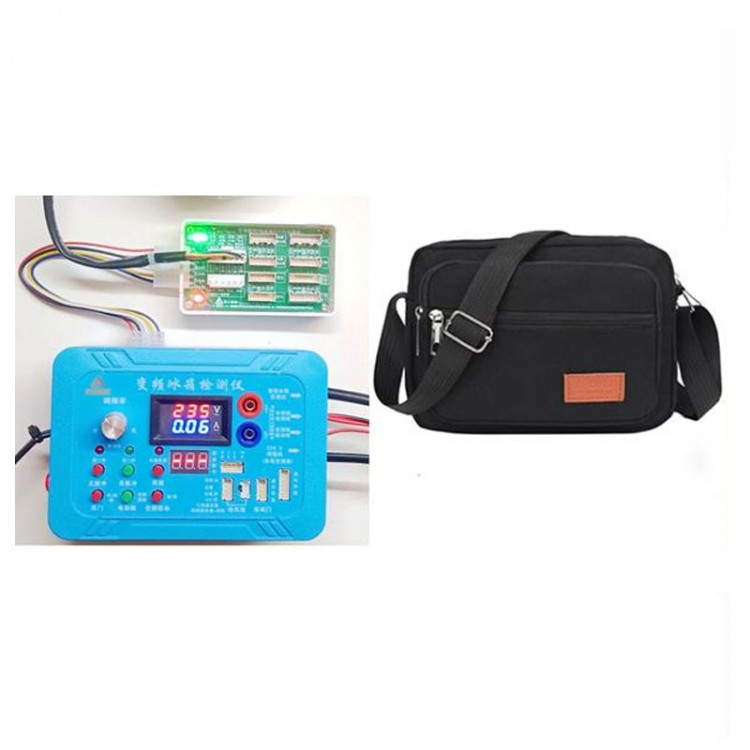

Package Included:
- 1 x Set of Inverter Refrigerator Detector
- 1 x Equipment Bag
