V760A-5 NEW Portable Wearable Head Mounted Display 1024x768 HD Display with 18mm Eyepiece for Security Monitors FPV Aircraft

V760A-5 NEW Portable Wearable Head Mounted Display 1024x768 HD Display with 18mm Eyepiece for Security Monitors FPV Aircraft

Difference:

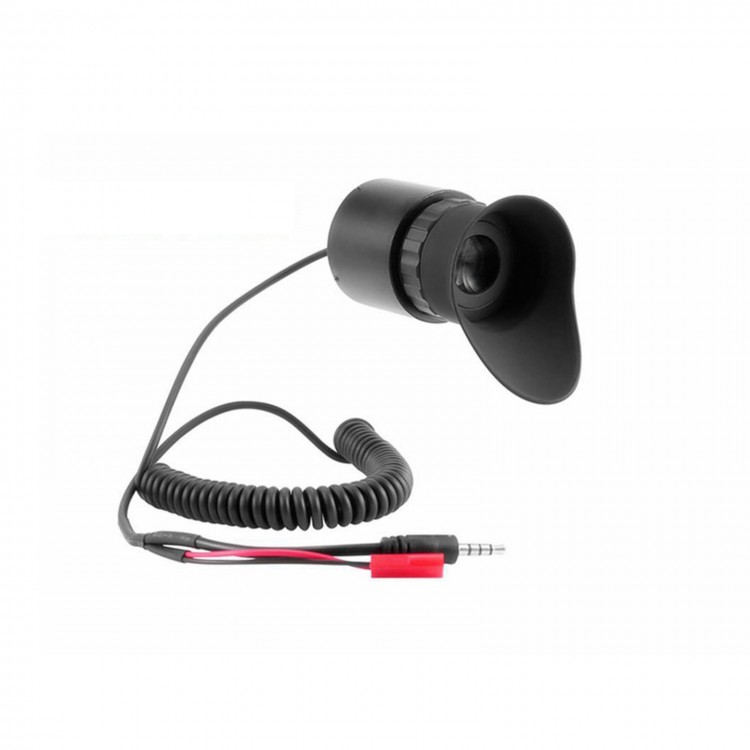

- V760A adopts 3.5mm and 2.5mm “AV” interface, external JST socket battery.
- V760C adopts TV port, external USB power supply.

Description:

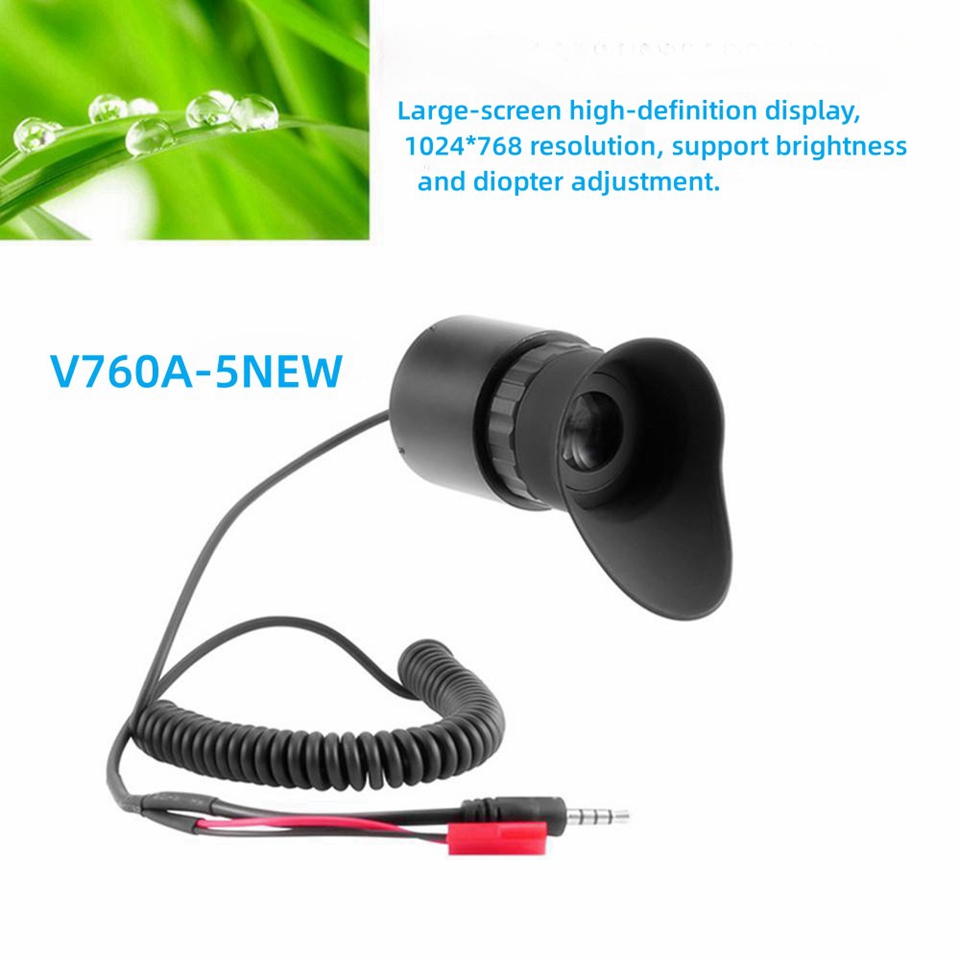

- V760A-5 boasts large-screen HD display, 90-inch effect, 1024*768 active matrix color. 0.5-inch OLED panel module uses monocrystalline silicon transistors. The panel adopts panel drive and logic drive. It features small size, light weight and high definition.
- 5.8G and 2.4G wireless receiving handheld displays are invisible in the sun, so they are not suitable for rainy days. The head-mounted display adopts a general waterproof cover design, which is not affected by strong light and rain.

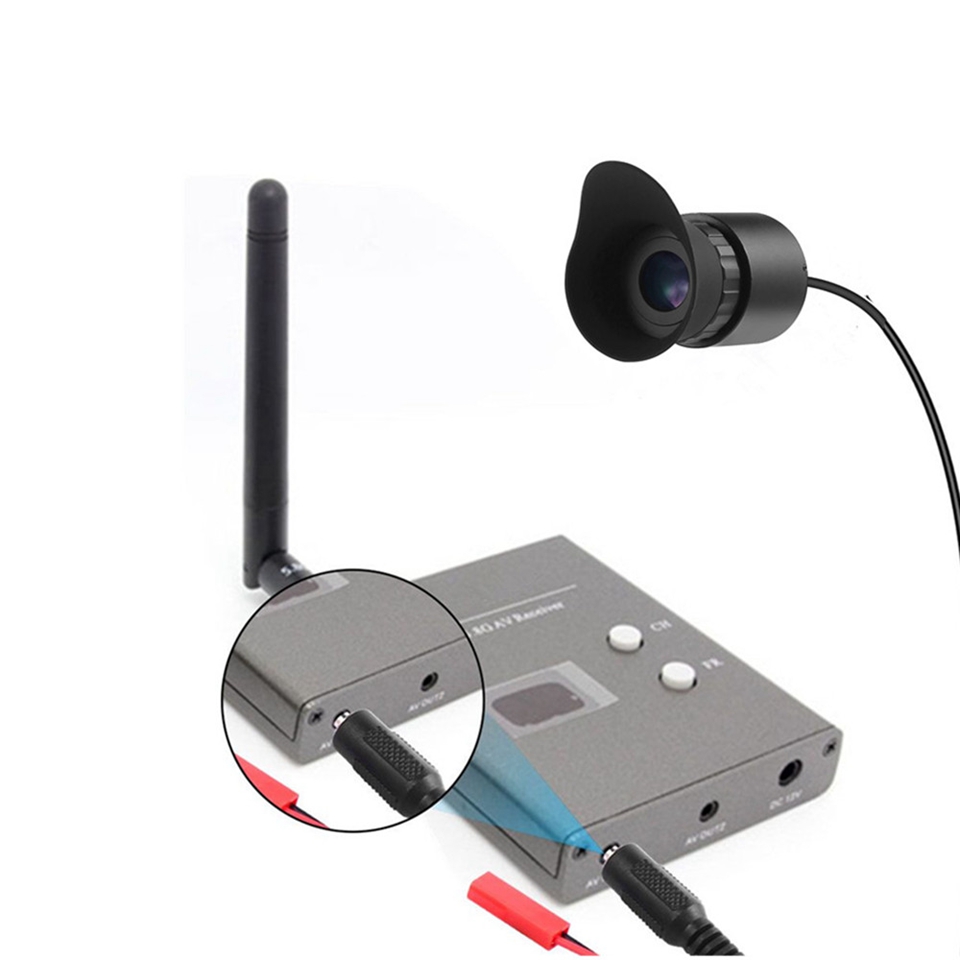

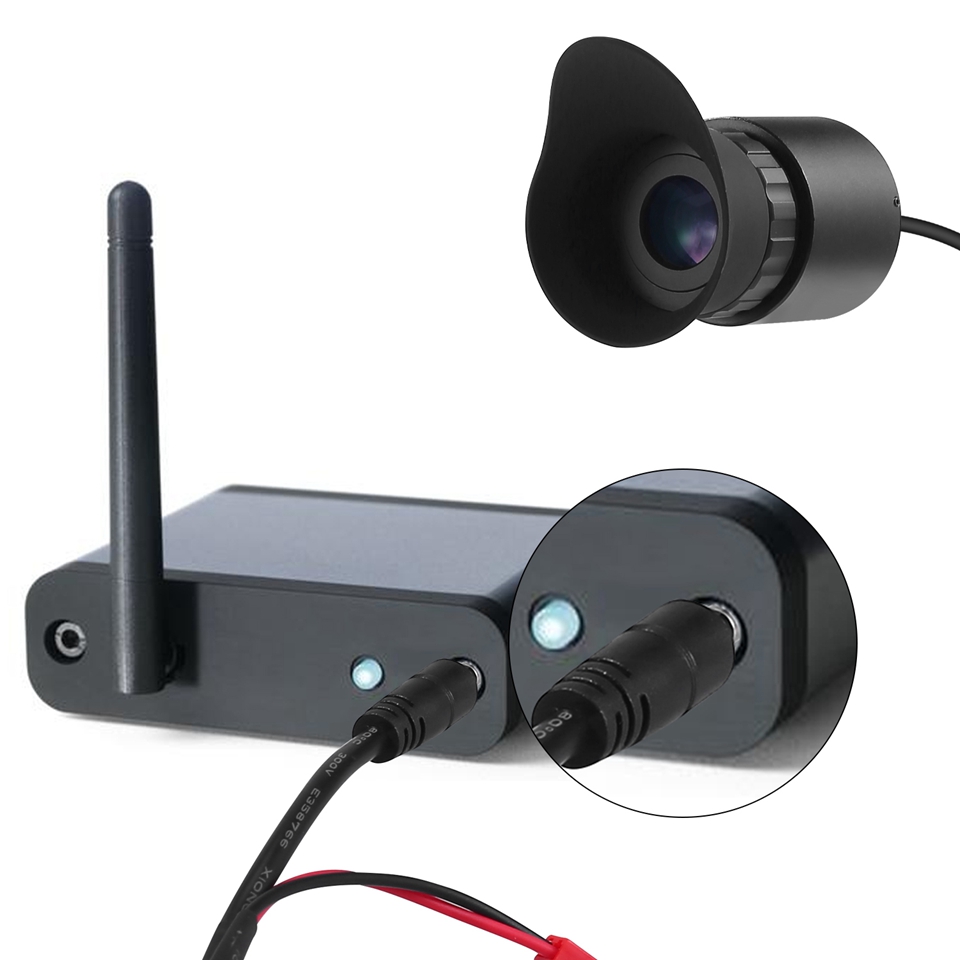

- V760A-5 is an external video source, which facilitates the matching of terminal equipment. 5.8G is often used in FPV model airplane competitions. Nowadays, drone competitions are popular in some European and American countries, and the domestic market is gradually evolving; air traffic monitoring, outdoor shooting, etc. require timely observation of outdoor dynamics. Popular 7-inch screen and connected mobile phones are used as displays. When looking at a mobile phone in the sun, everyone encounters damage to their eyes. The viewing effect is also very blurry, so the use of a head-mounted display can effectively avoid glare and dazzling.

Applications:
- 1024 x 768 active matrix color 0.5 inch OLED panel module uses single crystal silicon transistor.
- The display module can be equivalent to 2 meters distance virtual 90 - inch screen.
- VGA pixels of micro display chip, image as well as the light source system, high-performance optical engine, the drive control circuit.
- FPV model aircraft display, easy to plug in both the user to carry and operate.
- Monocular display suite, night vision, medical, information, infrared detection, power monitoring electronic suite viewfinder.
- Metal case with internal fixing bracket, waterproof, dustproof and shockproof.

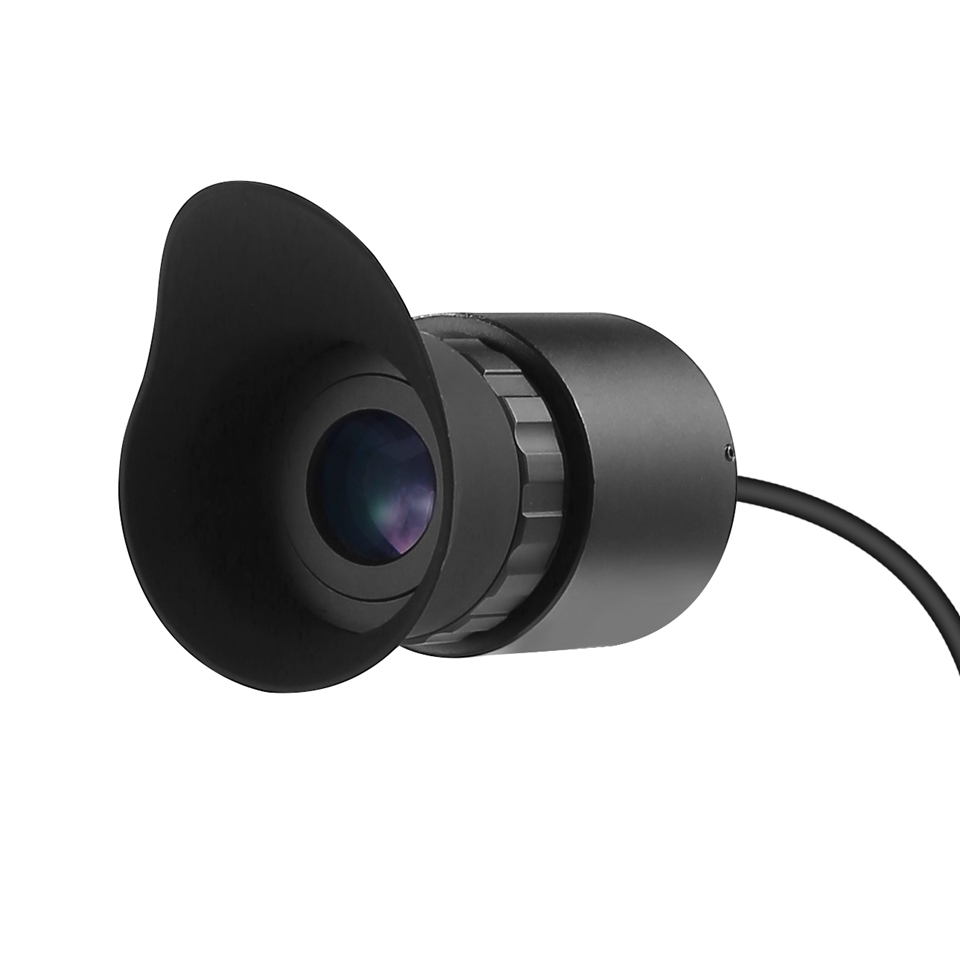

- Equipped with 18MM eyepieces, custom hoods.

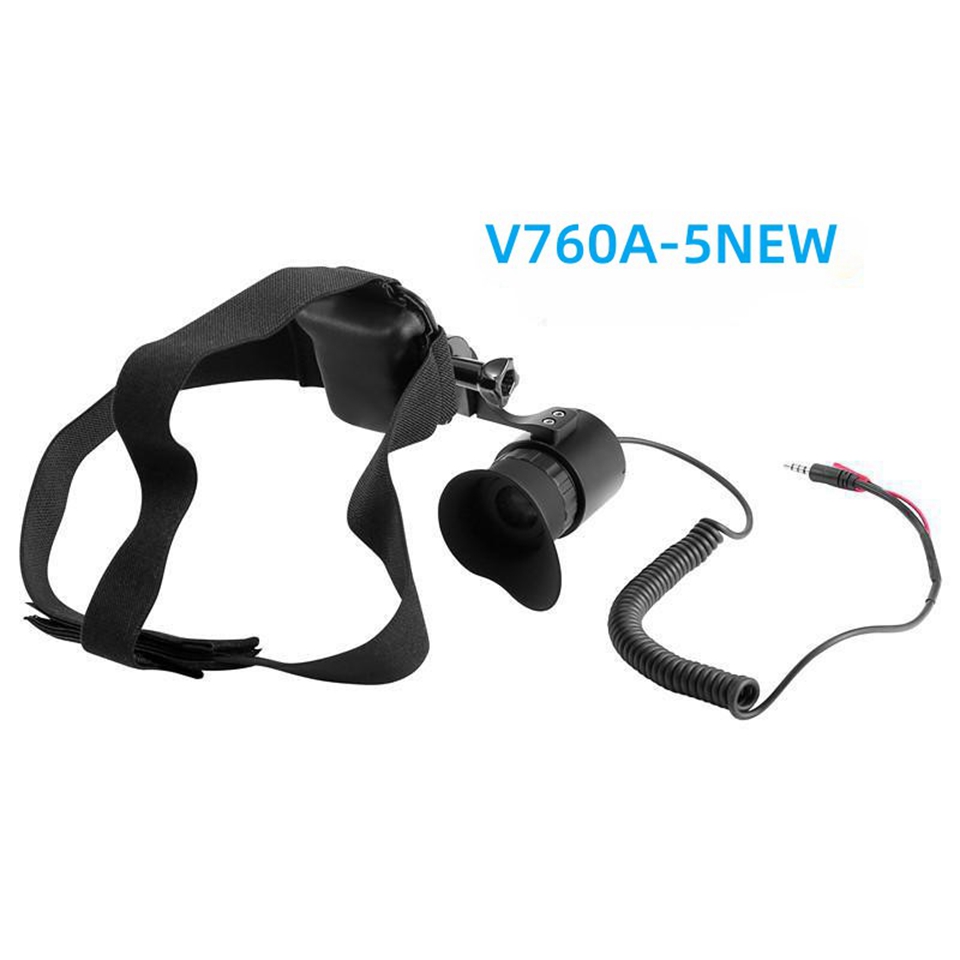

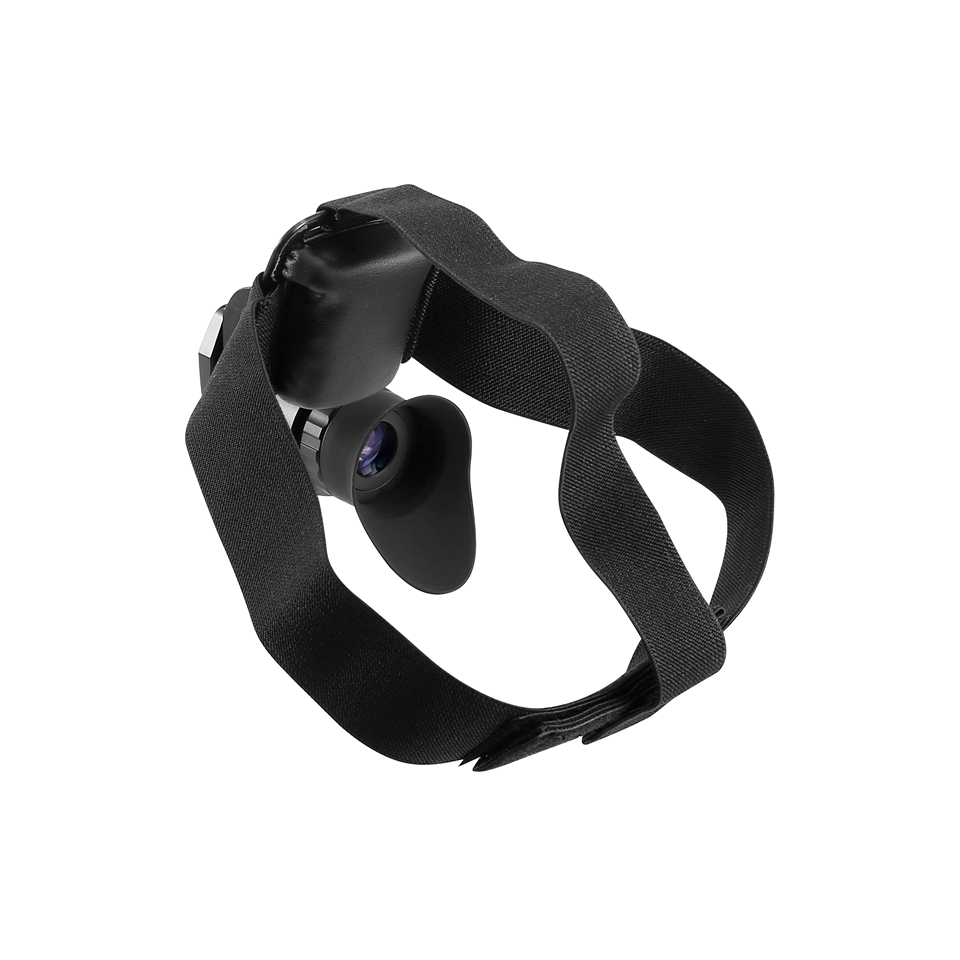

- User-friendly straps are comfortable and convenient, while supporting up and down adjustment.

Specification:
- Display: 0.5-inch OLED
- Resolution: 1024 x 768
- Screen ratio: 4:3
- Color depth: 24-bit input
- Viewing angle: 45° diagonal
- Video input: composite AV/CVBS (optional)
- Video signal: NTSC/PAL/SECAM automatic selection
- Working voltage: 3.7-5V
- Working current: 100mA
- Power consumption: 0.1W
- Display frame frequency: 120Hz (NTSC), 100Hz (PAL)
- An exit pupil distance: 20mm
- An exit pupil diameter: 1-2m
- Eyepiece: 14X optical

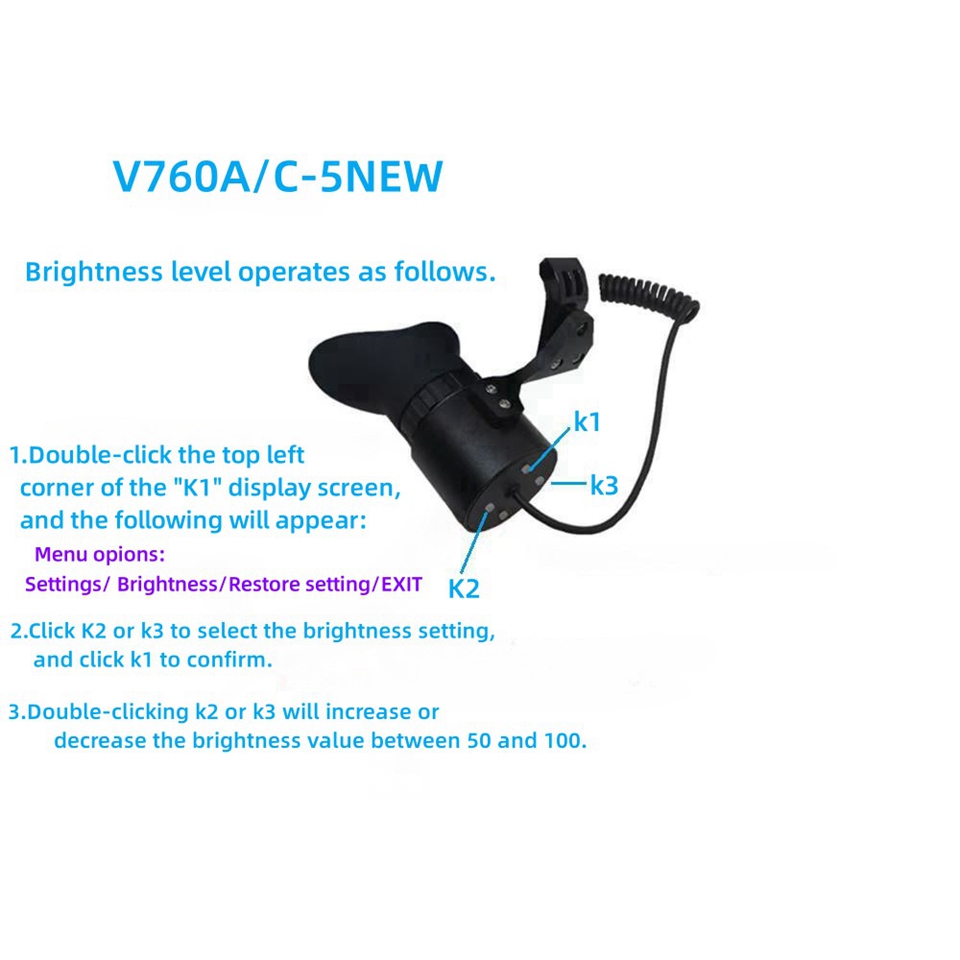

- Bright adjustment: yes
- Diopter adjustment: yes

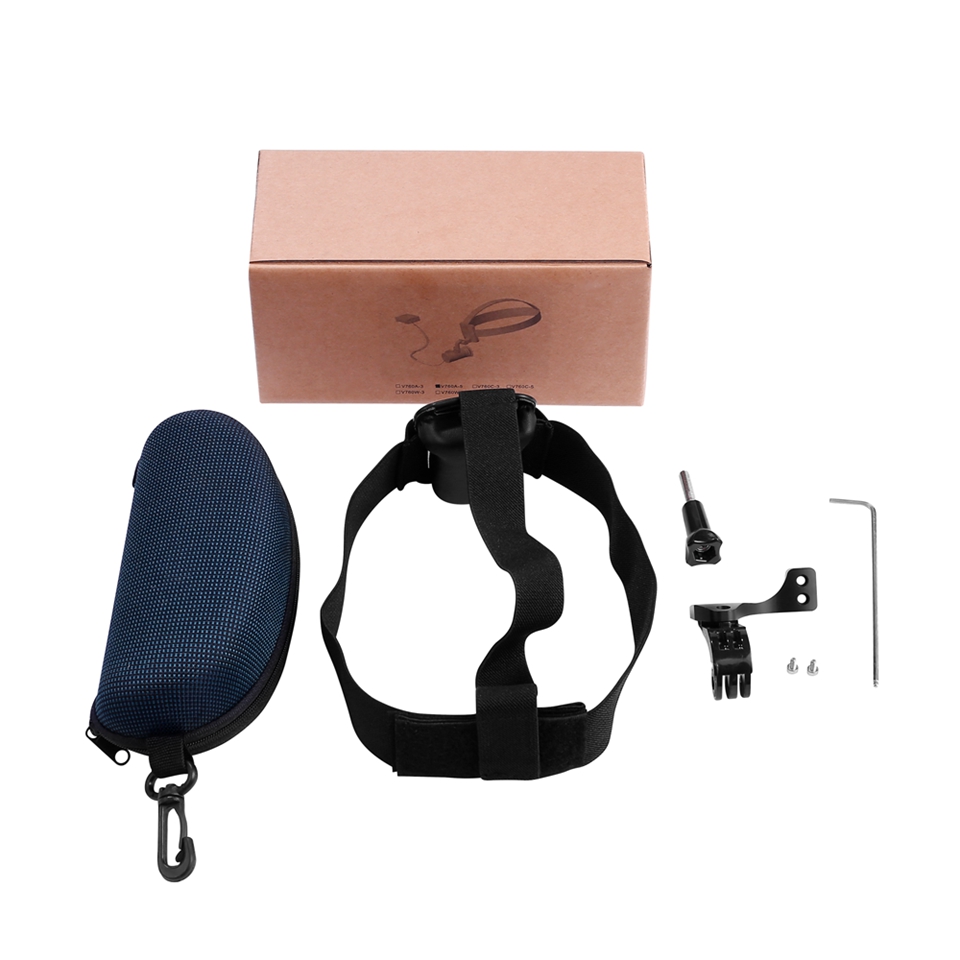

Package Included:
- 1 x Set of V760A-5

Note:
- Battery is not included. External JST socket 3.7V-5V battery is needed.
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding.
