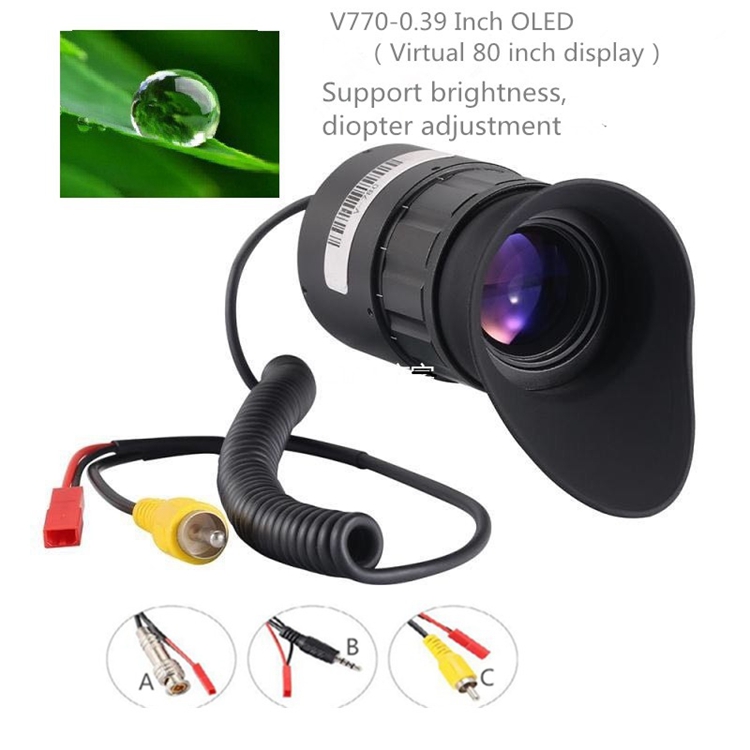

V770 Head-Mounted Display 0.39" OLED 12X Viewfinder Magnifier for Night Version Camera
Features:
- Wearable HD display
- 800x600 Active matrix color 0.39-inch OLED panel built with single crystal silicon transistor
- Small size and light weight
- Equipped with a 21mm eyepiece and customized hood
- Adjustable diopter and brightness
- Convenient to Use: 3.7V power supply can be connected to it through external JST socket
- CVBS signal input supports NTSC/PAL
- Metal case with internal fixing bracket bring in waterproof, dustproof and shockproof performance
- User-friendly straps for easy adjustment and comfortable wearing experience
- The display module can be equivalent to virtual 80-inch screen in 2 meters
Parameters:
- Display: 0.39-inch OLED
- Resolution: 800*600
- Screen Ratio: 4:3
- Color Depth: 24-bit input
- Viewing Angle: 45°diagonal
- Video input: Composite AV/CVBS
- Video Signal: NTSC/PAL/SECAM automatic selection
- Working voltage: 3.7-5V
- Working current: 5mA
- Power consumption: 0.1W
- Display frame frequency: 120HZ(NTSC),100HZ(PAL
- An exit pupil distance: 20mm
- An exit pupil diameter: 1-2m
- Eyepiece: 12x optical
- Brightness adjustment: yes
- Diopter adjustment: yes

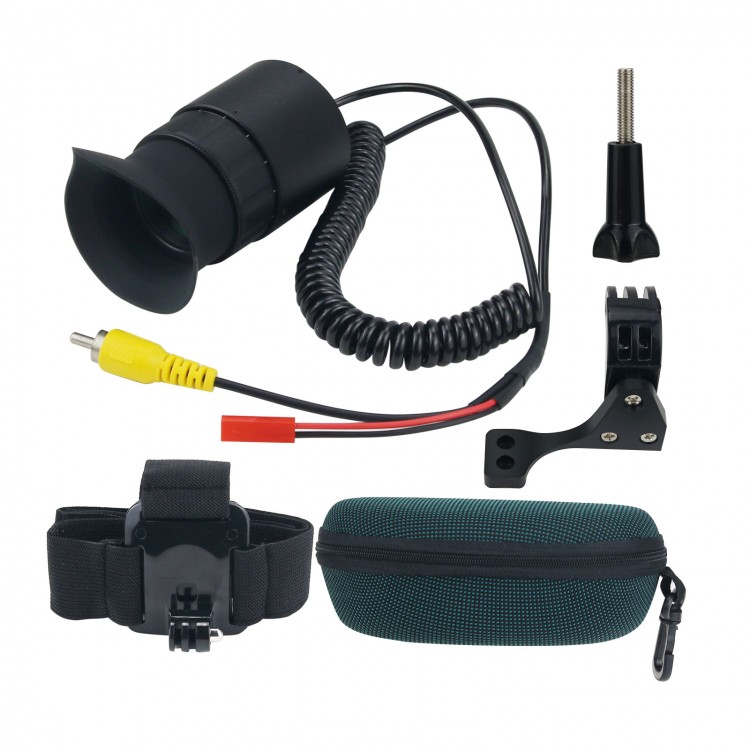

Package Included:
- 1 x Head-Mounted Display
- 1 x Head-Mounted Strap
- 1 x User Manual
- Other Fixing Accessories
Note: There are three types of connectors for choice. Please tell us the type you want when purchasing. Thank you!
