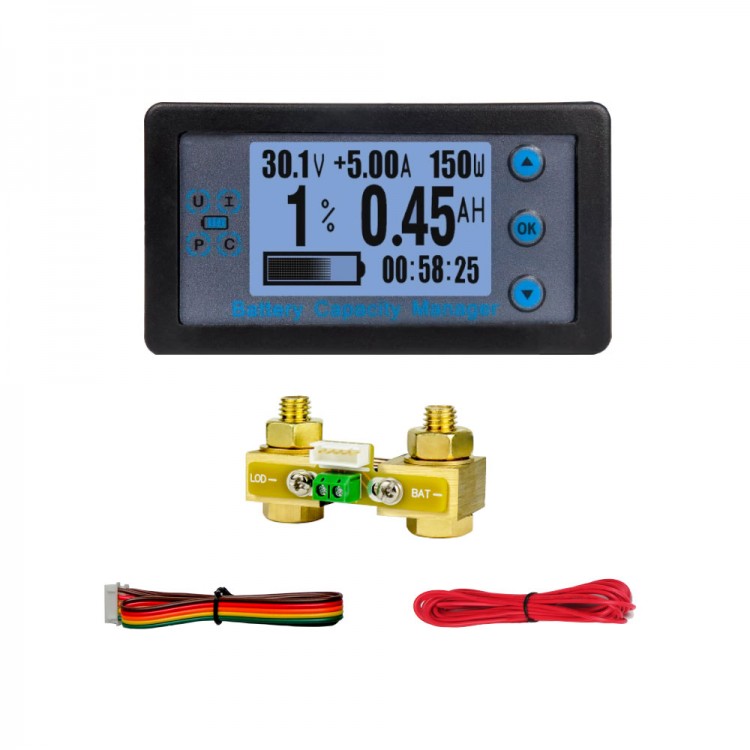

VA9210 High Precision Coulometer with 100A Diverter Battery Capacity Manager Low Power Consumption Voltmeter Ammeter

VA9210 High Precision Coulometer with 100A Diverter Battery Capacity Manager Low Power Consumption Voltmeter Ammeter

Features:
- Multifunctional wired shunt coulomb meter: bidirectional current detection, high accuracy, low temperature drift, versatile for various batteries.
- LED liquid crystal display: The display data is comprehensive, clear, easy to observe, and the reading is clear at a glance.
- High quality ABS material is used, which has characteristics such as impact resistance and high temperature resistance. The PVC flame-retardant material shell is safe and reliable.
- All copper accessories have ultra-low power consumption, good conductivity, low heat generation, and real-time capacity detection.
- Wide application range: suitable for electric bicycle testing, RV battery monitoring, battery testing, power equipment testing, etc.

Specification:
- Measuring voltage: 8V - 120V
- Measuring current: 0-100A/0-200A/0-300A/0-500A (optional)
- Measuring capacity: 0.1AH - 999AH
- Measuring power value: 60KW
- Accuracy:
  Voltage: ±1% + 2 words
  Current: ±0.5% + 2 words
  Temperature: -20℃ ~ 150℃ (optional function)
- Display method: 12864 LCD
- Power consumption: 0.2W for LCD on; 0.05W for LCD off
- Communication baud rate: 9600bps
- Measuring speed rate: 20 times/s
- Bluetooth communication distance: 10m in open fields
- Product size: 79 x 43 x 26mm

Parameter Setting Video:
- https://v.youku.com/v_show/id_XNjAzMzc5NjcwNA==.html

User Manual:
- http://www.qletek.com/static/upload/file/20240202/1706837134481887.pdf

Package Included:
- 1 x Coulometer
- 1 x Current Acquisition Module (without base)
- 1 x 5P Pin Cable (50cm)
- 1 x Voltage Acquisition Cable

Note:
- If you need the Bluetooth mini program function/temperature measurement function/3-meter extended cable, please contact us for additional purchase before payment.
