VA9810 Type-A 500A 2.4-inch High Precision Color Screen Bluetooth Coulomb Meter Battery Capacity Manager (with Base)

VA9810 Type-A 500A 2.4-inch High Precision Color Screen Bluetooth Coulomb Meter Battery Capacity Manager (with Base)

Description:
- VA9810 is one multiply functions instrument, able to real time display voltage, real time current, real time power, rest capacity, operating time and multiply types physical parameters, this instrument adopt 2.4-inch color liquid crystal as indicator, complete indicate data, clear and easy to observe. This instrument mostly suitable to monitor the output voltage and current, the battery charge and discharge other application fields.

Features:
- 32-bit main control chip
- 2.4-inch color screen LCD display
- Pure copper accessory with ultra-low power consumption
- Bidirectional current detection
- Real-time capacity detection
- Silicon button, soft and comfortable touch
- Support online slight adjustment of voltage and current value
- 24 hours duration

Application:
- Motor home battery monitoring
- Electric bicycle battery monitoring
- Battery Detection
- Photovoltaic system detection
- Power devices detection

Parameter:
- Measuring range:
  Voltage: 8 ~ 100V
  Current: 0.02A ~ 500A
  Capacity: 0.1AH ~ 99999AH
  Power value: 50KW
- Precision:
  Voltage: ±1% + 2 digits
  Current: ±0.5% + 2 digits
- Display method: 2.4-inch color LCD display
- Power consumption: 0.3W for bright screen; 0.2W for black screen
- Communication baud rate: 9600bps
- Measuring speed rate: 20 times/second
- Bluetooth communication distance: 10m in open fields

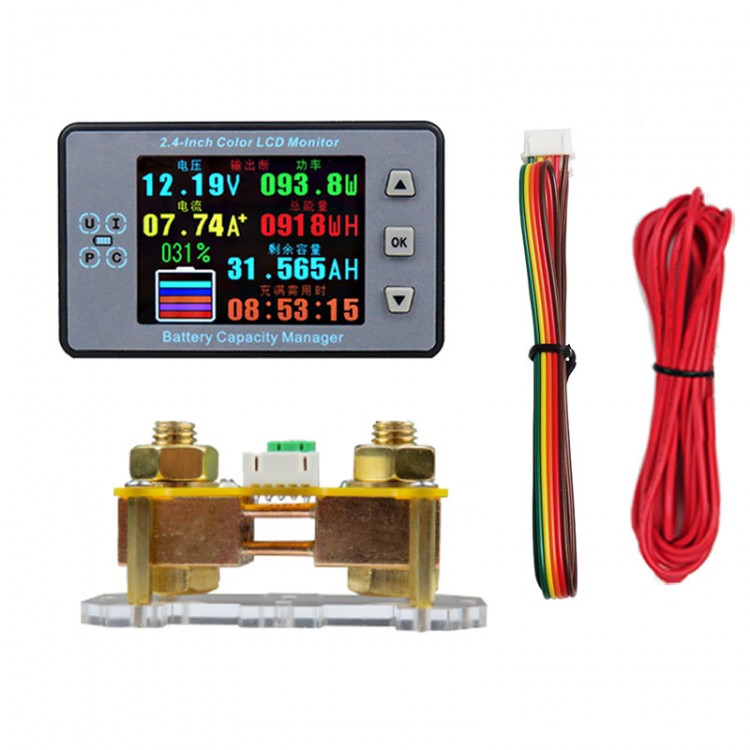

Package Included:
- 1 x 2.4-inch Coulomb Meter

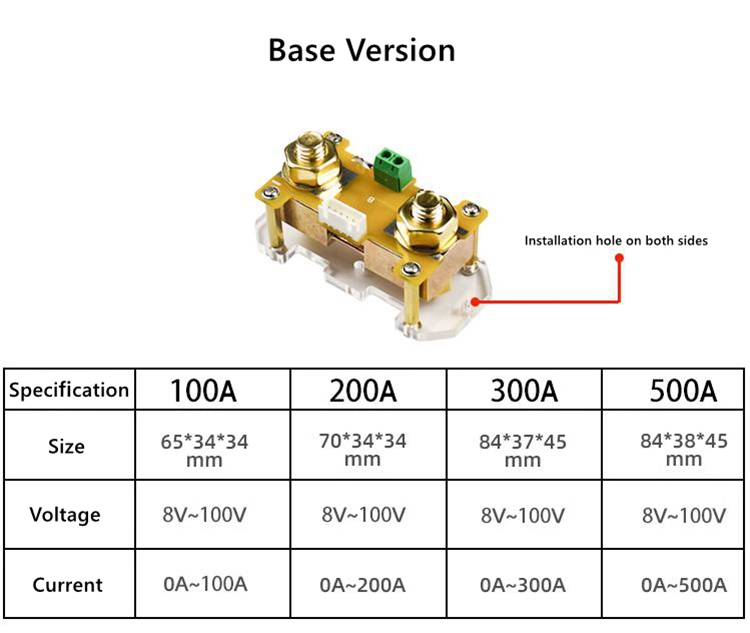

- 1 x Current Acquisition Module (with Base)
- 1 x 5P Color Cable (50cm)
- 1 x Voltage Acquisition Cable
